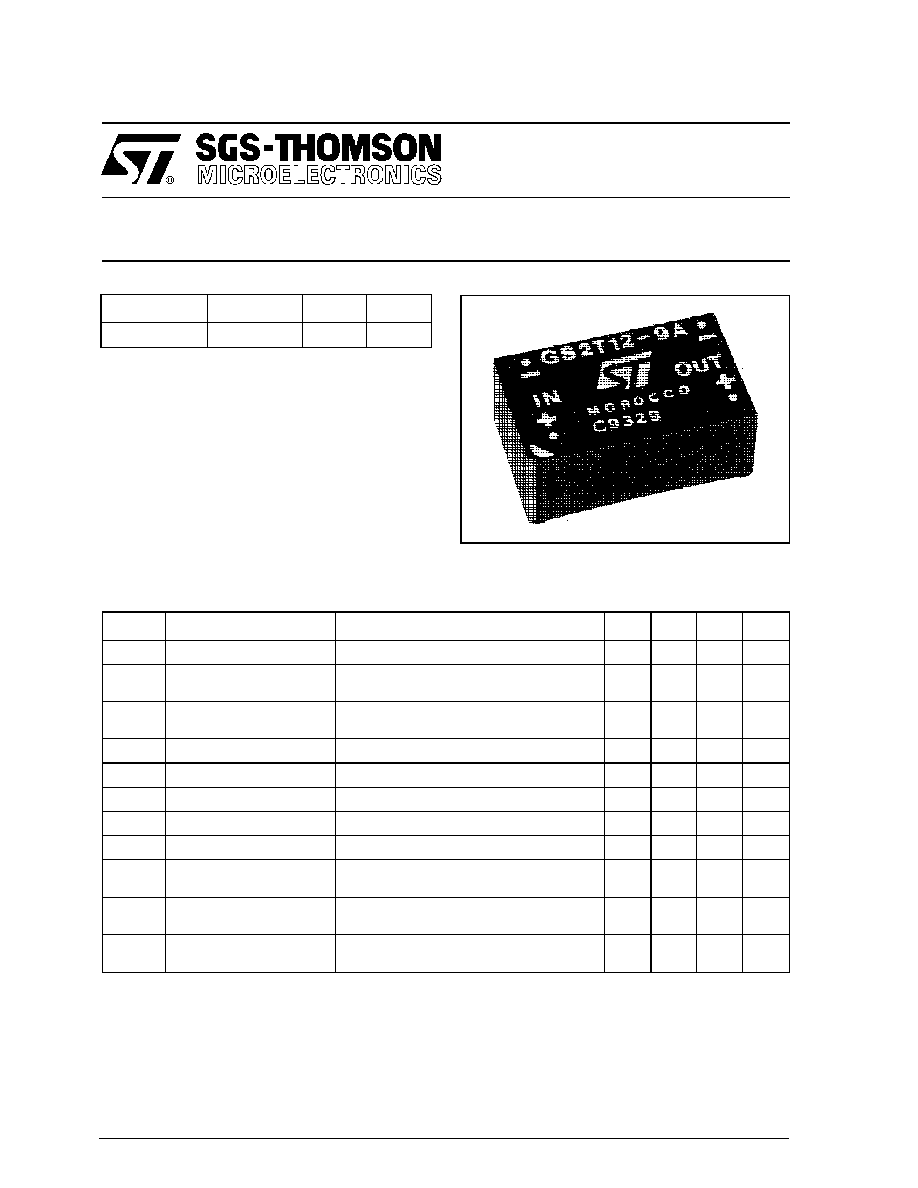

background image
GS2T12-9A
2 W LAN DC-DC CONVERTER
December 1993
1/2
Type
Vin
Vout
Iout
GS2T12-9A
9,5 to 15,7 V
9 V
250 mA
DESCRIPTION
The GS2T12-9A is a 2.25W unregulated DC-DC
converter designed to provide power, voltage regu-
lation and isolation for Local Area Network
(CHEAPERNET and ETHERNET) transceivers
from a wide range of input voltage, according to
IEEE 802.3 Standard.
ELECTRICAL CHARACTERISTICS (Tamb.=25
° C unless otherwise specified)
Symbol
Parameter
Test Conditions
Min
Typ
Max
Unit
Vi
Input Voltage
Vo= -9V
Io= 0 to 250mA
9.50
15.75
V
Iir
Input Reflected
Current
Vi= 9.50 to 15.75V
Vo= -9V
Io= 250mA
2
5
mApp
Vo
Output Voltage
Vi= 9.50 to 15.75V
Io= 0 to 250mA
-8.55
-9.00
-9.45
V
Vor
Output Ripple Voltage
Vi= 9.50 to 15.75 V
Io = 250mA
2
5
mVrms
δVo
Line Regulation
Vi= 9.50 to 15.75V
Io= 250mA
5
mV
δVo
Load Regulation
Vi= 12V
Io= 0 to 250mA
5
mV
Io
Output Current
Vi= 9.50 to 15.75V
Vo = -9V
0
250
mA
Vis
Isolation Voltage
2500
Vdc
η
Efficiency
Vi= 9.50V to 15.75V
Io= 250mA
75
80
%
Top
Operating Ambient
Temperature Range
0
+70
°C
Tstg
Storage Temperature
Range
-40
+85
°C
