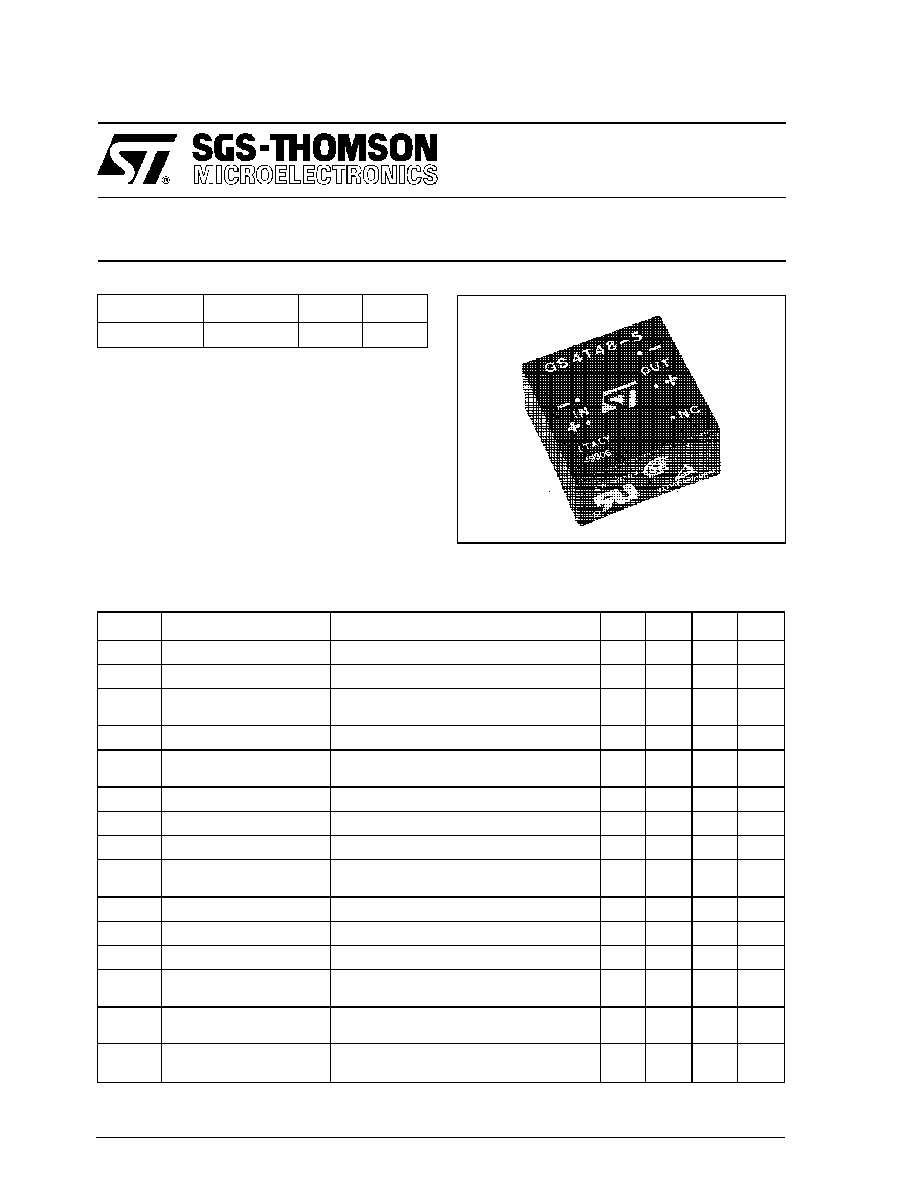

GS4T48-5

4 W DC-DC CONVERTER

June 1994

1/3

Type

GS4T48-5

38 to 60 V

5 V

800 mA

DESCRIPTION

The GS4T48-5 is a 4W DC-DC converter designed

to provide a 5V/800mA isolated power source.

The module features a wide input voltage range (38

to 60V), low reflected input current and continuous

short-circuit protection. It is certified by UL, CSA

(level 3) and TUV as having SELV output when

provided with a SELV input.

° C unless otherwise specified)

Symbol

Parameter

Test Conditions

Min

Typ

Max

Unit

Vi

Input Voltage

Vo =5V

Io = 50 to 800mA

38

48

60

V

Ii

Input Current

Vi = 38 to 60V

Io = 800mA

140

mA

Iir

Input Reflected

Current

Vi = 48V

Vo =5V

Io = 800mA

20

30

mApp

Vo

Output Voltage

Vi = 38 to 60V

Io = 50 to 800mA

4.8

5

5.2

V

Vor

Output Ripple Voltage

Vi = 48V

Io = 800mA

BW = 5Hz to 20MHz

30

50

mVpp

Line Regulation

Vi = 38 to 60V

Io = 800mA

1

2

mV/V

Load Regulation

Vi = 48V

Io = 50 to 800mA

50

75

mV/A

Io

Output Current

Vi = 38 to 60V

Vo =5V

50

800

mA

Iosc

Output Short-circuit

Current

Vi = 48V

2A

Vis

Isolation Voltage

500

fs

Switching Frequency

Vi = 38 to 60V

Io = 50 to 800mA

50

200

kHz

η

Efficiency

Vi = 48V

Io = 800mA

70

73

%

Top

Operating Ambient

Temperature Range

Still Air

0

+55

°C

Top

Operating Ambient

Temperature Range

Forced ventilation, air speed = 100 LFM

0

+65

°C

Tstg

Storage Temperature

Range

– 40

+85

°C
