TRXQ1

RXQ1

RXQ1 Application Information with RF600T

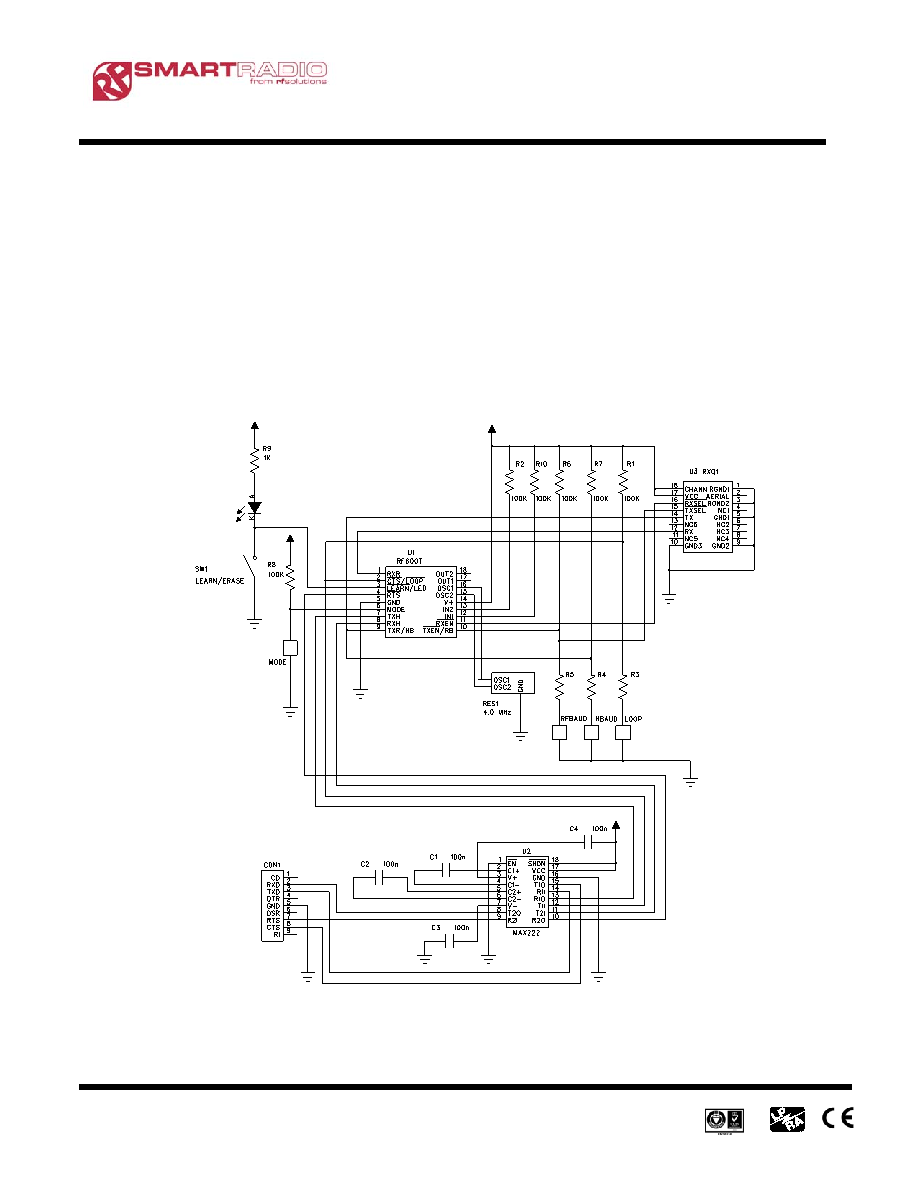

The circuit below shows a typical application of the RXQ1 in conjunction with the RF600T low power radio

transceiver controller. A 9 way ‘D’ connector provides an RS232 termination to the host system and the RXQ1

hybrid contains all of the circuitry required to implement the RF path. The RF600T operates as a transceiver

controller and performs all of the functions necessary to implement either a ‘dumb’ or an intelligent modem

with automatic retry and proof of deliver functions built in to the system. In many applications it will be possible

to dispense with the option links and hard-wire options to their desired settings but note however option

selection must be carried out exactly as described in the RF600T data sheet.

This implementation of TRXQ1 module and RF600T is available as the composite hybrid TRXQ1 which is

described in this data sheet.

2K2

2K2

2K2
