PGOOD

IIN

VOUT

SHDN

VIN = 24 V

C(dVdT) = 22 nF

RLOAD = 24 Ω

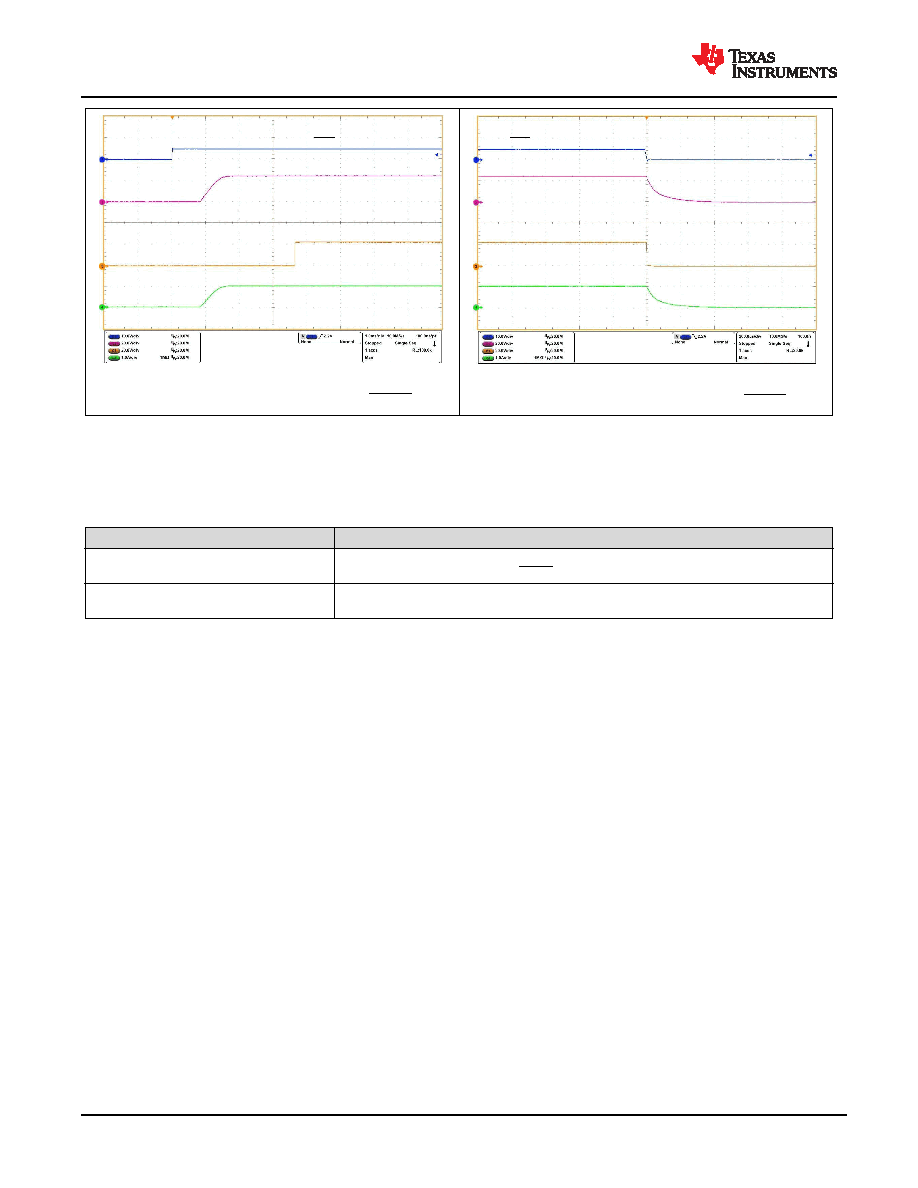

Figure 9-13. Turnon Control With SHDN

PGOOD

IIN

VOUT

SHDN

VIN = 24 V

C(dVdT) = 22 nF

RLOAD = 24 Ω

Figure 9-14. Turnoff Control With SHDN

9.4 Device Functional Modes

The TPS1663x devices respond differently to overload with MODE pin configurations. Table 9-1 lists the

operational differences.

Table 9-1. Device Operational Differences Under Different MODE Configurations

MODE Pin Configuration

Power Limiting, Over Current fault and Thermal Shutdown Operation

Open

Active Current limiting for a maximum duration of tCL_PLIM(dly). There after Latches OFF.

Latch reset by toggling SHDN or UVLO low to high or power cycling IN.

Shorted to GND

Active current limiting for a maximum duration of tCL_PLIM(dly). There after auto-retries after a

delay of t(TSD_retry).

TPS1663

SLVSET9F – SEPTEMBER 2018 – REVISED FEBRUARY 2023
