HCF4503

HEX BUFFER

February 2000

s

1 TTL-LOAD OUTPUT DRIVE CAPABILITY

s

2 OUTPUT-DISABLE CONTROLS

s

3 STATE OUTPUTS

s

5V, 10V, AND 15V PARAMETRIC RATINGS

s

QUIESCENT CURRENT SPECIFIED UP TO

15V

s

INPUT CURRENT OF 300nA AT 15V AND

25

°C

s

100% TESTED FOR QUIESCENT CURRENT

MEETS

ALL

REQUIREMENTS

OF

JEDEC

TENTATIVE STANDARD N

SPECIFICATIONS FOR DESCRIPTION OF ”B”

SERIES CMOS DEVICES”

DESCRIPTION

The HCF4503B is a monolithic integrated circuits,

available in 16-lead dual in-line plastic package

and plastic micro package.

The HCF4503B is a hex noninverting buffer with

3-state

outputs

having

high

sink

and

source-current capability. Two disable controls

are provided, one of which controls four buffers

and the other controls the remaining two buffers.

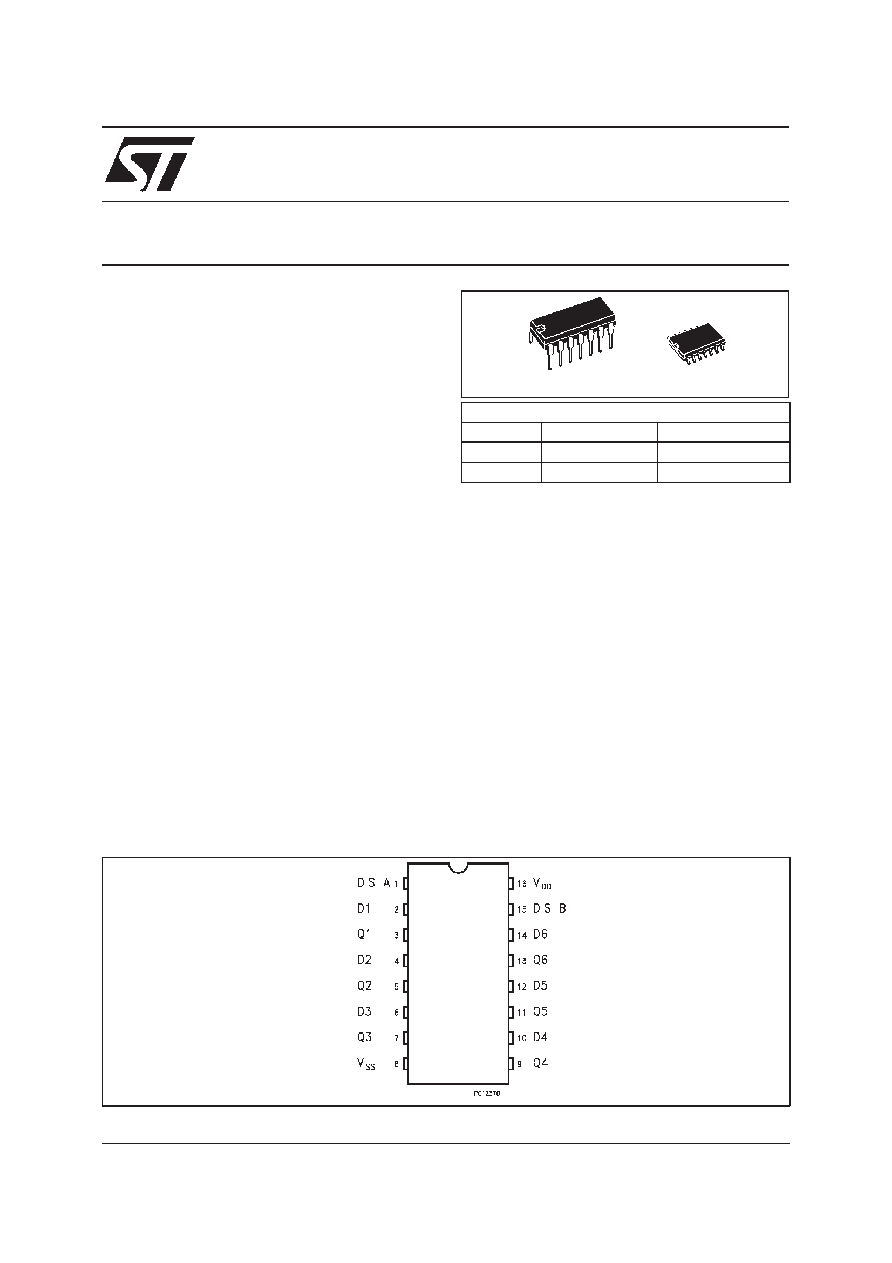

PIN CONNECTION

®

SOP

DIP

ORDER CODES

PACKAGE

TUBE

T & R

DIP

HCF4503BEY

SOP

HCF4503BM1

HCF4503M013TR

1/10
