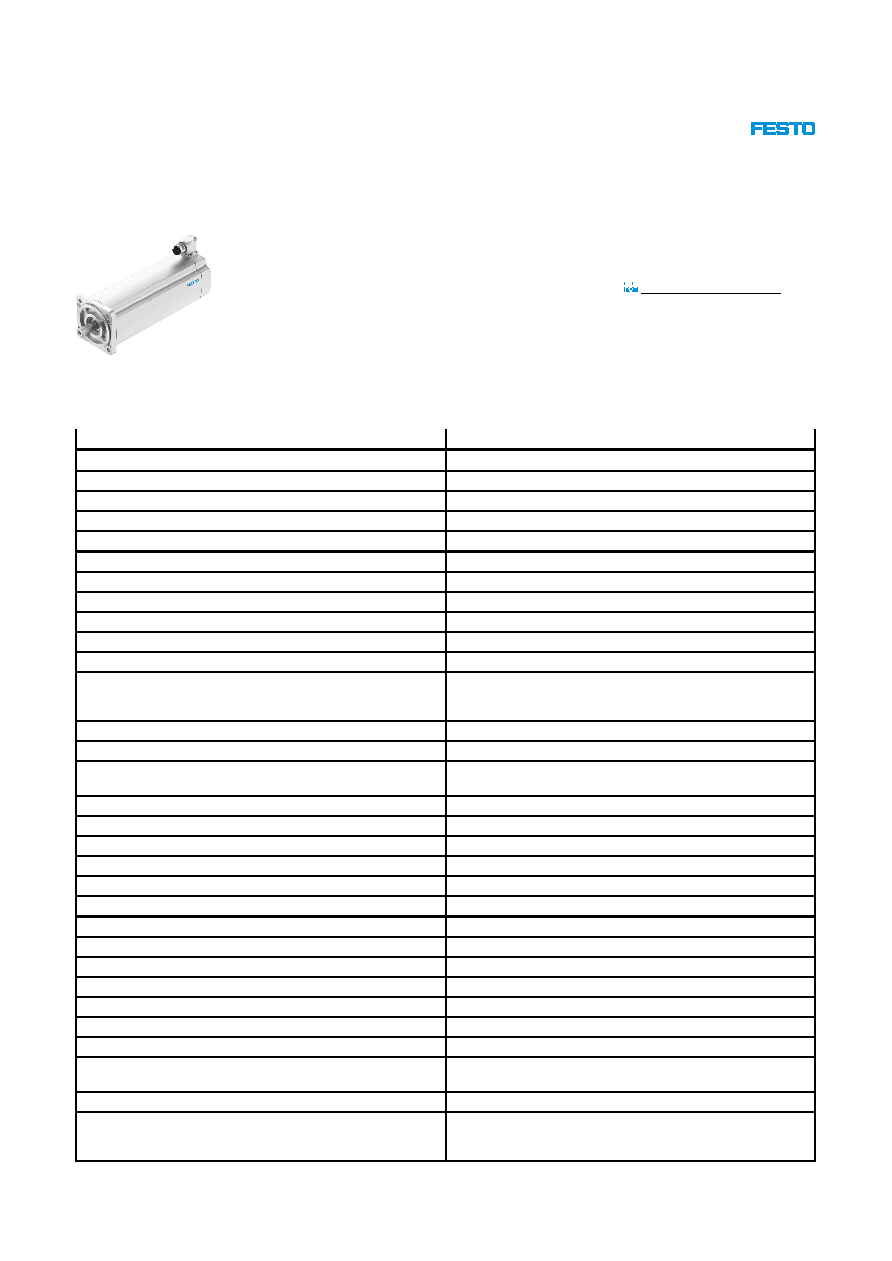

Servo motor

EMMT-AS-100-H-HS-RMYB

Part number: 8160661

General operating condition

Data sheet

Feature

Value

Ambient temperature

-40 °C ... 40 °C

Note on ambient temperature

Up to 80 °C with derating of -2.25% per degree Celsius

Max. installation height

4000 m

Information on max. installation height

with 1,000 m and longer only with derating of -1.0% per 100 m

Storage temperature

-40 °C ... 70 °C

Relative air humidity

0 - 90 %

Conforms to standard

IEC 60034

Thermal class according to EN 60034-1

F

Max. winding temperature

155 °C

Rating class according to EN 60034-1

S1

Temperature monitoring

Digital motor temperature transmission via EnDat® 2.2

Motor type as per EN 60034-7

IM B5

IM V1

IM V3

Mounting position

Any

Degree of protection

IP40

Note on degree of protection

IP65 for motor shaft with rotary shaft seal

IP67 for motor housing, incl. connection technology

Concentricity, coaxiality, axial runout according to DIN SPEC 42955

N

Balancing quality

G 2.5

Detent torque

<1.0% of peak torque

Bearing lifetime, under nominal conditions

20000 h

Interface code, motor out

100A

Electrical connection 1, connection type

Hybrid plug

Electrical connection 1, connection technology

M23x1

Electrical connection 1, number of pins/wires

15

Electrical connection for input 1, connection pattern

00995913

Contamination level

2

Note on materials

RoHS-compliant

Corrosion resistance class (CRC)

0 - No corrosion stress

LABS (PWIS) conformity

VDMA24364 zone III

Vibration resistance

Transport application test with severity level 2 as per FN 942017-4 and

EN 60068-2-6

Shock resistance

Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27

Certification

RCM compliance mark

German Technical Control Board (TÜV)

c UL us - Recognized (OL)
