AP8003TBC-R1 데이터시트(PDF) 4 Page - Wuxi Chipown Micro-electronics limited

부품명 AP8003TBC-R1
상세설명  Fixed 5V output non-isolated AC/DC converter chip
PDF  10 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  CHIPOWN [Wuxi Chipown Micro-electronics limited]
홈페이지  https://www.chipown.com.cn/en/index.html
Logo CHIPOWN - Wuxi Chipown Micro-electronics limited

AP8003TBC-R1 데이터시트(HTML) 4 Page - Wuxi Chipown Micro-electronics limited

  AP8003TBC-R1 Datasheet HTML 1Page - Wuxi Chipown Micro-electronics limited AP8003TBC-R1 Datasheet HTML 2Page - Wuxi Chipown Micro-electronics limited AP8003TBC-R1 Datasheet HTML 3Page - Wuxi Chipown Micro-electronics limited AP8003TBC-R1 Datasheet HTML 4Page - Wuxi Chipown Micro-electronics limited AP8003TBC-R1 Datasheet HTML 5Page - Wuxi Chipown Micro-electronics limited AP8003TBC-R1 Datasheet HTML 6Page - Wuxi Chipown Micro-electronics limited AP8003TBC-R1 Datasheet HTML 7Page - Wuxi Chipown Micro-electronics limited AP8003TBC-R1 Datasheet HTML 8Page - Wuxi Chipown Micro-electronics limited AP8003TBC-R1 Datasheet HTML 9Page - Wuxi Chipown Micro-electronics limited Next Button
Zoom Inzoom in Zoom Outzoom out
 4 / 10 page
background image
AP8003
Chipown
www.chipown.com
© 2018 无锡芯朋微电子股份有限公司
Rev.1805
2018 年 5 月
4 / 10

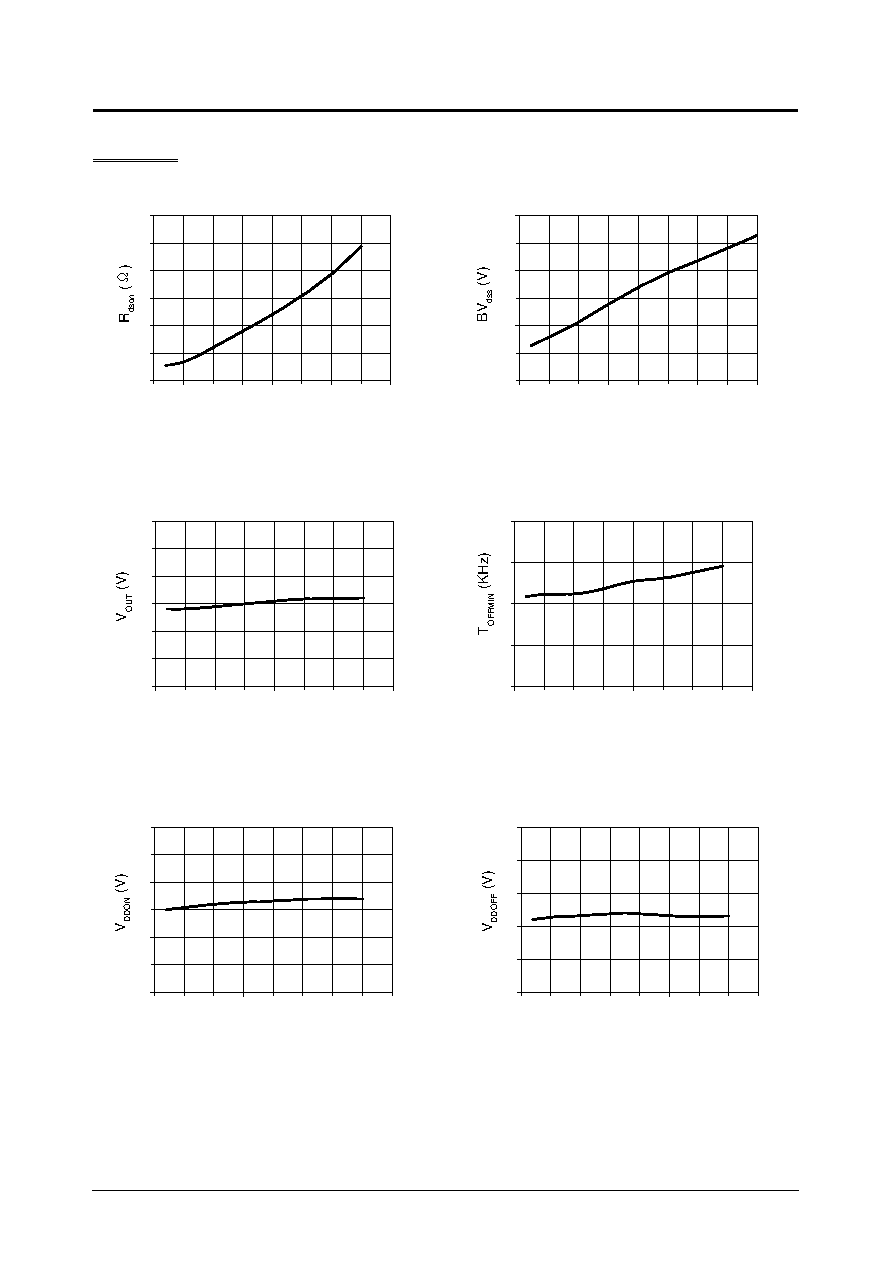

特性曲线
-50
-25
0
25
50
75
100
125
150
15
20
25
30
35
40
45
Junction Temperture(℃)
-50
-25
0
25
50
75
100
125
150
500
525
550
575
600
625
650
Junction Temperture(℃)
(a) RDS(on) vs Tj
(b) BVDSS vs Tj
-50
-25
0
25
50
75
100
125
150
5.1
5.2
5.3
5.4
5.5
5.6
5.7
Junction Temperture(℃)
-50
-25
0
25
50
75
100
125
150
22
24
26
28
30
Junction Temperture(℃)
(c) VOUT vs Tj
(d) Toffmin vs Tj
-50
-25
0
25
50
75
100
125
150
4.8
4.9
5.0
5.1
5.2
5.3
5.4
Junction Temperture(℃)
-50
-25
0
25
50
75
100
125
150
3.9
4.0
4.1
4.2
4.3
4.4
Junction Temperture(℃)
(e) VDDon vs Tj
(f) VDDoff vs Tj
