Low Cost JFET Input

Operational Amplifiers

ADTL082/ADTL084

Rev. B

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibilityis assumedbyAnalogDevicesforitsuse,norforanyinfringements of patents or other

rightsofthirdpartiesthatmayresultfromitsuse.Specificationssubjecttochangewithoutnotice.No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

www.analog.com

Fax: 781.461.3113

©2007 Analog Devices, Inc. All rights reserved.

FEATURES

TL082/TL084 compatible

Low input bias current: 10 pA maximum

Offset voltage

5.5 mV maximum (ADTL082A/ADTL084A)

9 mV maximum (ADTL082J/ADTL084J)

±15 V operation

Low noise: 16 nV/√Hz

Wide bandwidth: 5 MHz

Slew rate: 20 V/μs

CMRR: 80 dB minimum

Total harmonic distortion: 0.001%

Supply current: 1.2 mA typical

Unity-gain stable

APPLICATIONS

General-purpose amplification

Power control and monitoring

Active filters

Industrial/process control

Data acquisition

Sample and hold circuits

Integrators

Input buffering

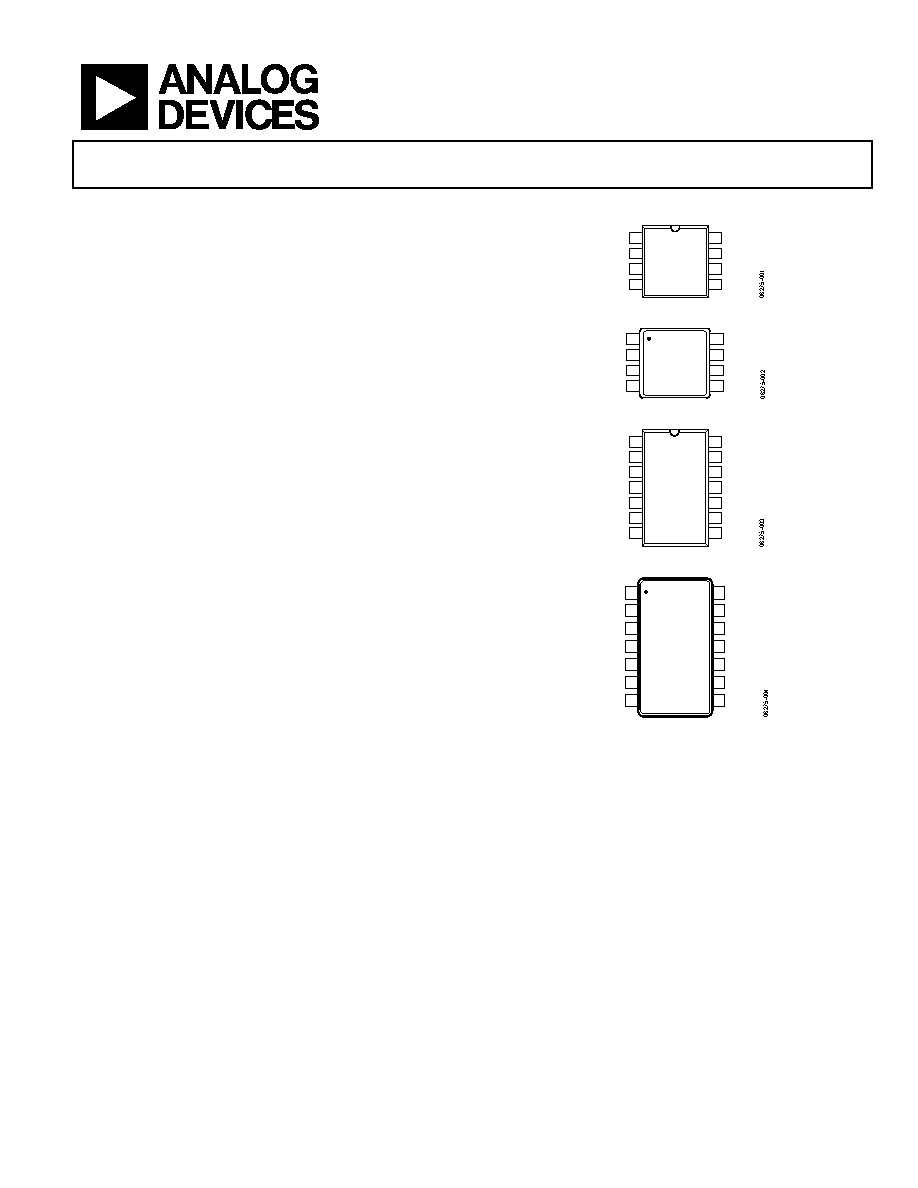

PIN CONFIGURATIONS

+V

8

OUT B

7

–IN B

6

+IN B

5

ADTL082J

TOP VIEW

(Not to Scale)

Figure 1. 8-Lead SOIC_N (R-8)

+V

8

OUT B

7

–IN B

6

+IN B

5

ADTL082A

TOP VIEW

(Not to Scale)

Figure 2. 8-Lead MSOP (RM-8)

OUT D

14

–IN D

13

+IN D

12

–V

11

+IN C

10

–IN C

9

OUT C

8

ADTL084J

TOP VIEW

(Not to Scale)

Figure 3. 14-Lead SOIC_N (R-14)

ADTL084A

1

2

3

4

5

6

7

–IN A

+IN A

+V

OUT B

–IN B

+IN B

OUT A

14

13

12

11

10

9

8

–IN D

+IN D

–V

OUT C

–IN C

+IN C

OUT D

TOP VIEW

(Not to Scale)

Figure 4. 14-Lead TSSOP (RU-14)

GENERAL DESCRIPTION

The ADTL082 and ADTL084 are JFET input amplifiers that

provide industry-leading performance over TL08x devices.

The ADTL082A and ADTL084A are improved versions of

TL08x A, I, and Q grades. The ADTL082J and ADTL084J are

industry alternatives to the TL08x standard and C grades.

The ADTL08x family offers lower noise, offset voltage, offset

drift over temperature, and bias current over the TL08x. In

addition, the ADLT08x family has better common-mode

rejection and slew rates.

These op amps are ideal for various applications, including

process control, industrial and instrumentation equipment,

active filtering, data conversion, buffering, and power control

and monitoring.

The A grade amplifiers are available in lead-free packaging. The

standard grade amplifiers are available in both leaded and lead-

free packaging.

The ADTL082A and ADTL084A are specified over the extended

industrial (−40°C to +125°C) temperature range. The ADTL082J

and ADTL084J are specified over the commercial (0°C to 70°C)

temperature range.
