1.8 nV/√Hz, 36 V Precision Quad Amplifier

ADA4004-4

Rev. B

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibilityis assumedbyAnalogDevicesforitsuse,norforanyinfringements of patents or other

rightsofthirdpartiesthatmayresultfromitsuse.Specificationssubjecttochangewithoutnotice.No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

www.analog.com

Fax: 781.461.3113

©2006–2007 Analog Devices, Inc. All rights reserved.

FEATURES

Very low voltage noise: 1.8 nV/

√Hz

Low input bias current: 100 nA maximum

Offset voltage: 100 μV maximum

High gain: 120 dB

Wide bandwidth: 12 MHz

±5 V to ±15 V operation

APPLICATIONS

Precision instrumentation

Filter blocks

Microphone preamplifier

Industrial control

Thermocouples and RTDs

Reference buffers

GENERAL DESCRIPTION

The ADA4004-4 is a 1.8 nV/√Hz precision quad amplifier in a

16-lead, 4 mm × 4 mm LFCSP package featuring 40 μV offset,

0.7 μV/°C drift, 12 MHz bandwidth, and low 1.7 mA per

amplifier supply current.

The ADA4004-4 is designed on the high performance iPolar™

process, enabling improvements such as reduced noise and

power consumption, increased speed and stability, and smaller

footprint size. Novel design techniques enable the ADA4004-4

to achieve 1.8 nV/√Hz voltage noise density and a low 6 Hz 1/f

noise corner frequency while consuming just 1.7 mA per amplifier.

The small package saves board space, reduces cost, and improves

layout flexibility.

Applications for these amplifiers include high precision controls,

PLL filters, high performance precision filters, medical and

analytical instrumentation, precision power supply controls,

ATE, and data acquisition systems.

The high performance ADA4004-4 is offered in the very small

16-lead, 4 mm × 4 mm LFCSP and the 14-lead, narrow SOIC,

RoHS compliant, surface-mount packages. Operation is fully

specified from ±5 V to ±15 V from −40°C to +125°C.

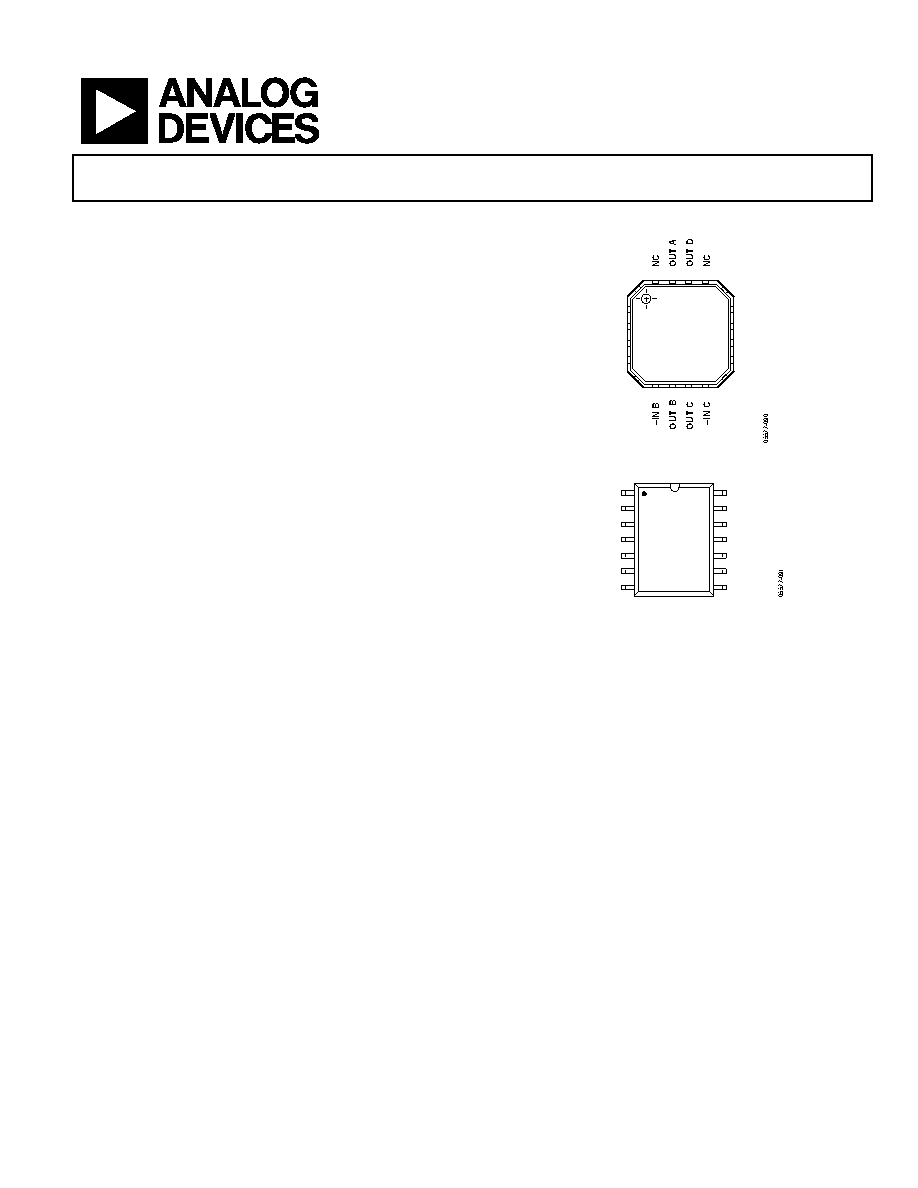

PIN CONFIGURATIONS

NC = NO CONNECT

TOP VIEW

(Not to Scale)

ADA4004-4

–IN D

12

+IN D

11

VEE

10

+IN C

9

5

6

7

8

16

15

14

13

Figure 1. 16-Lead LFCSP

(CP-16-4 Suffix)

1

OUT A

OUT D

14

2

–IN A

–IN D

13

3

+IN A

+IN D

12

4

V+

V–

11

5

+IN B

+IN C

10

6

–IN B

–IN C

9

7

OUT B

OUT C

8

ADA4004-4

TOP VIEW

(Not to Scale)

Figure 2. 14-Lead SOIC

(R-14 Suffix)
