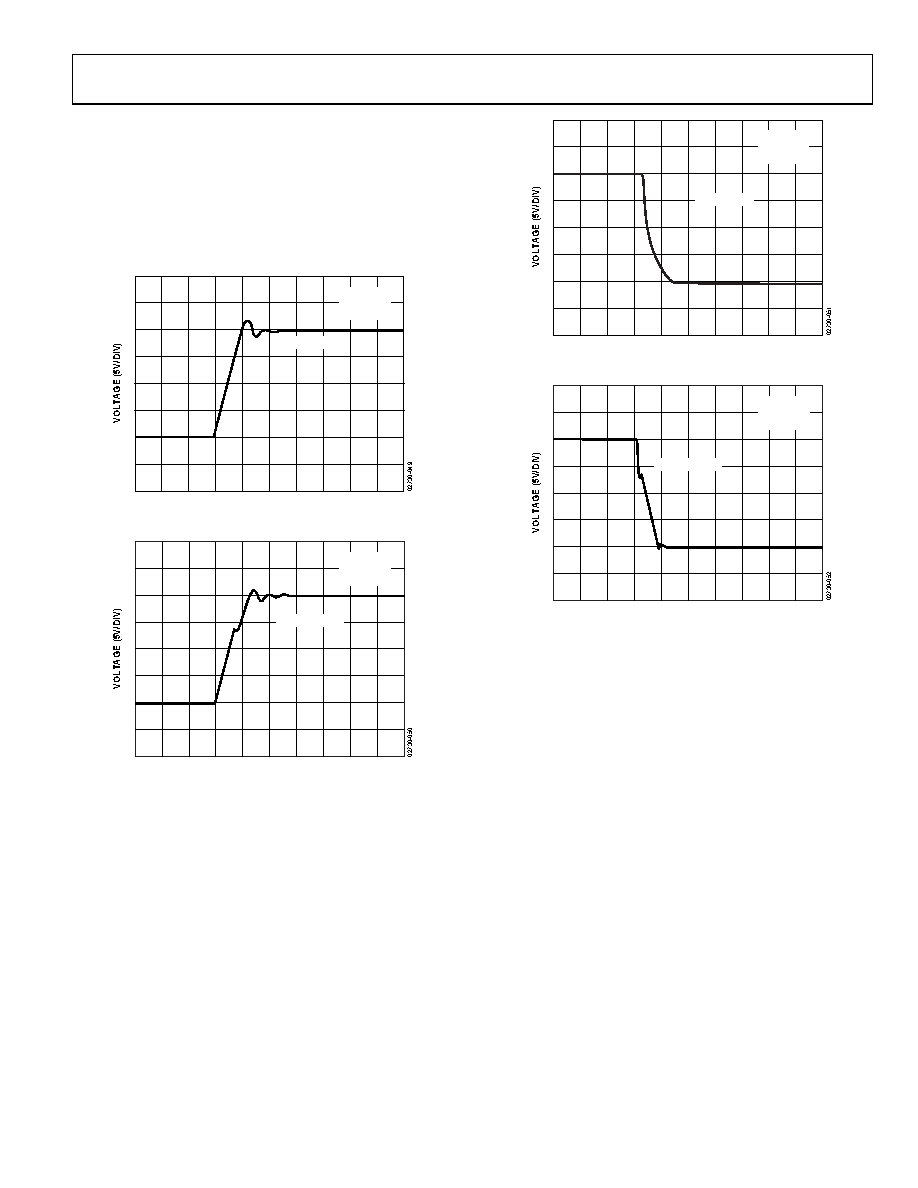

AD8610/AD8620
Slew Rate (Unity Gain Inverting vs. Noninverting)
VS = ±13V
RL = 2kΩ
Amplifiers generally have a faster slew rate in an inverting unity
G= –1
gain configuration due to the absence of the differential input
SR = 54V/µs
TIME (400ns/DIV)
capacitance. Figure 49 through Figure 52 show the performance
of the AD8610/AD8620 configured in a gain of –1 compared to
the OPA627. The AD8610/AD8620 slew rate is more symmetrical,
and both the positive and negative transitions are much cleaner
than in the OPA627.
V
R
S = ±13V
L = 2kΩ
G = –1
SR = 54V/µs
Figure 51. –Slew Rate of AD8610/AD8620 in Unity Gain of –1
VS = ±13V
RL = 2kΩ
G= –1
SR = 56V/µs
TIME (400ns/DIV)
Figure 49. +Slew Rate of AD8610/AD8620 in Unity Gain of –1
VS = ±13V
RL = 2kΩ
G= –1
TIME (400ns/DIV)
SR = 42.1V/µs
Figure 52. –Slew Rate of OPA627 in Unity Gain of –1
The AD8610/AD8620 have a very fast slew rate of 60 V/μs even
when configured in a noninverting gain of +1. This is the toughest
condition to impose on any amplifier since the input common-
mode capacitance of the amplifier generally makes its SR appear
worse. The slew rate of an amplifier varies according to the voltage
difference between its two inputs. To observe the maximum SR,
a voltage difference of about 2 V between the inputs must be
TIME (400ns/DIV)
ensured. This is required for virtually any JFET op amp so that
Figure 50. +Slew Rate of OPA627 in Unity Gain of –1
one side of the op amp input circuit is completely off, thus maxi­
mizing the current available to charge and discharge the internal
compensation capacitance. Lower differential drive voltages
produce lower slew rate readings. A JFET input op amp with a
slew rate of 60 V/μs at unity gain with VIN = 10 V might slew at
20 V/μs, if it is operated at a gain of +100 with VIN = 100 mV.
Rev. E | Page 15 of 24
