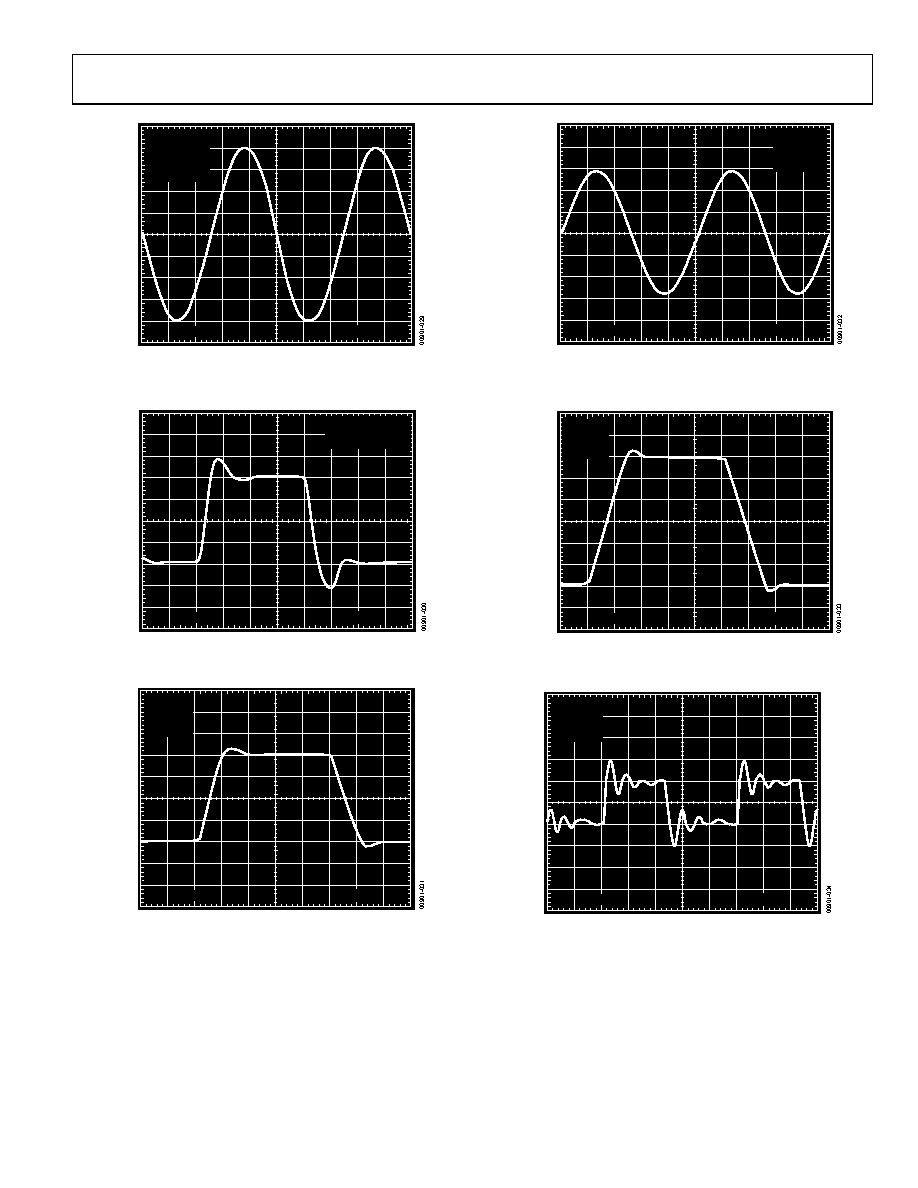

AD823
Rev. B | Page 11 of 20
5V
GND
500mV
200µs
RL = 300Ω
CL = 50pF
RF = RG = 2kΩ
+VS = +5V
G = –1
Figure 29. Output Swing, +VS = +5 V, G = −1
1.55V
1.45V
25mV
50ns
VIN = 100mV STEP
+VS = +3V
G = +1
Figure 30. Pulse Response, +VS = +3 V, G = +1
5V
GND
500mV
100ns
RL = 2kΩ
CL = 50pF
+VS = +5V
G = +2
Figure 31. Pulse Response, +VS = +5 V, G = +2
3V
GND
500mV
200µs
RL = 100kΩ
CL = 50pF
+VS = +3V
G = +1
Figure 32. Output Swing, +VS = +3 V, G = +1
5V
GND
500mV
100ns
RL = 2kΩ
CL = 50pF
+VS = +5V
G = +1
Figure 33. Pulse Response, +VS = +5 V, G = +1
500mV
200ns
RL = 2kΩ
CL = 470pF
+VS = +5V
G = +1
Figure 34. Pulse Response, +VS = +5 V, G = +1, CL = 470 pF
