TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. A | 9 of 24

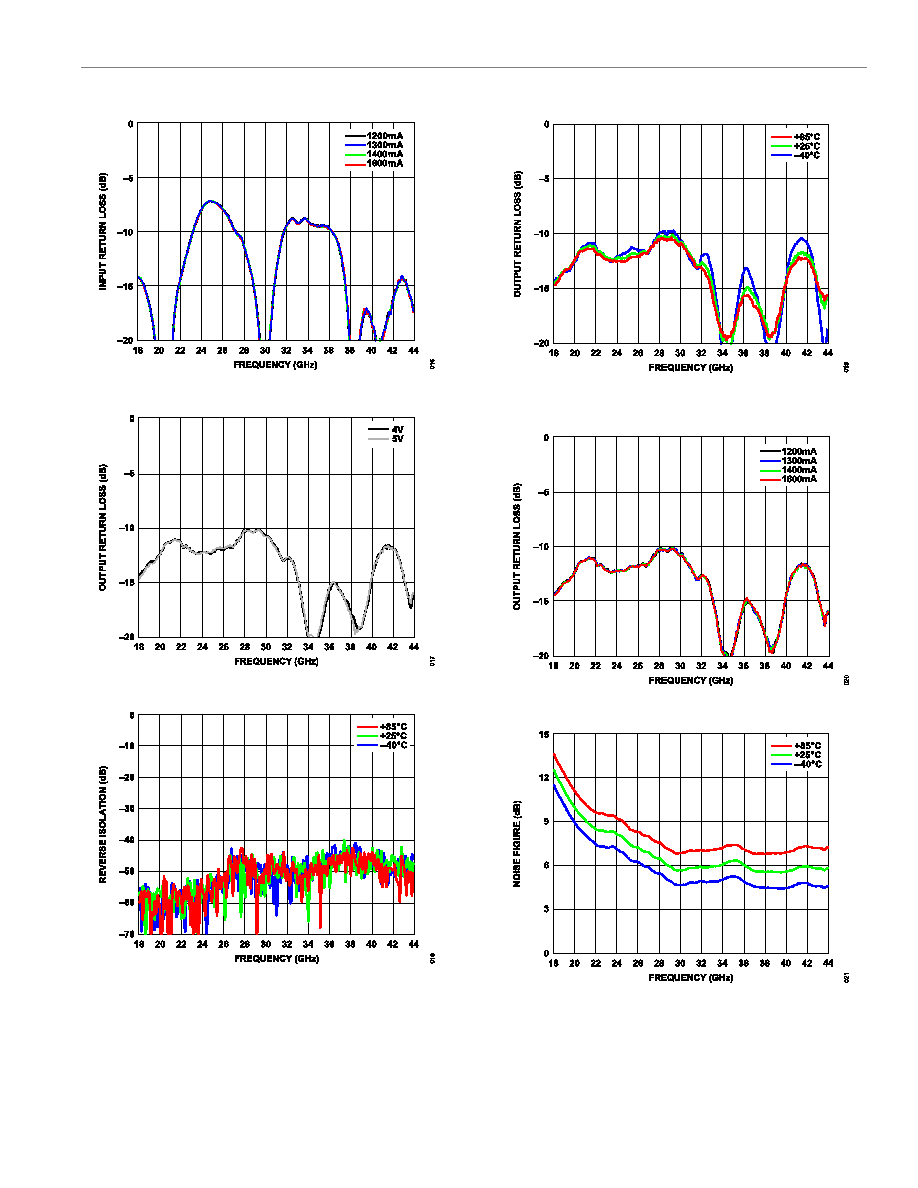

Figure 16. Input Return Loss vs. Frequency for Various IDQ, VDD = 5 V

Figure 17. Output Return Loss vs. Frequency for Various VDD, IDQ = 1400 mA

Figure 18. Reverse Isolation vs. Frequency for Various Temperatures,

VDD = 5 V, IDQ = 1400 mA

Figure 19. Output Return Loss vs. Frequency for Various Temperatures,

VDD = 5 V, IDQ = 1400 mA

Figure 20. Output Return Loss vs. Frequency for Various IDQ, VDD = 5 V

Figure 21. Noise Figure vs. Frequency for Various Temperatures, VDD = 5 V,

IDQ = 1400 mA
