Data Sheet

ADRF5420

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 8 of 14

INSERTION LOSS, RETURN LOSS, AND ISOLATION

VDD = 3.3V, VSS = −3.3V, VCTRL = 0V or VDD, and TCASE = 25°C for a 50Ω system, unless otherwise noted. Insertion loss, return loss and

isolation are measured on a probe board using ground-signal-ground (GSG) probes close to the RFx pins.

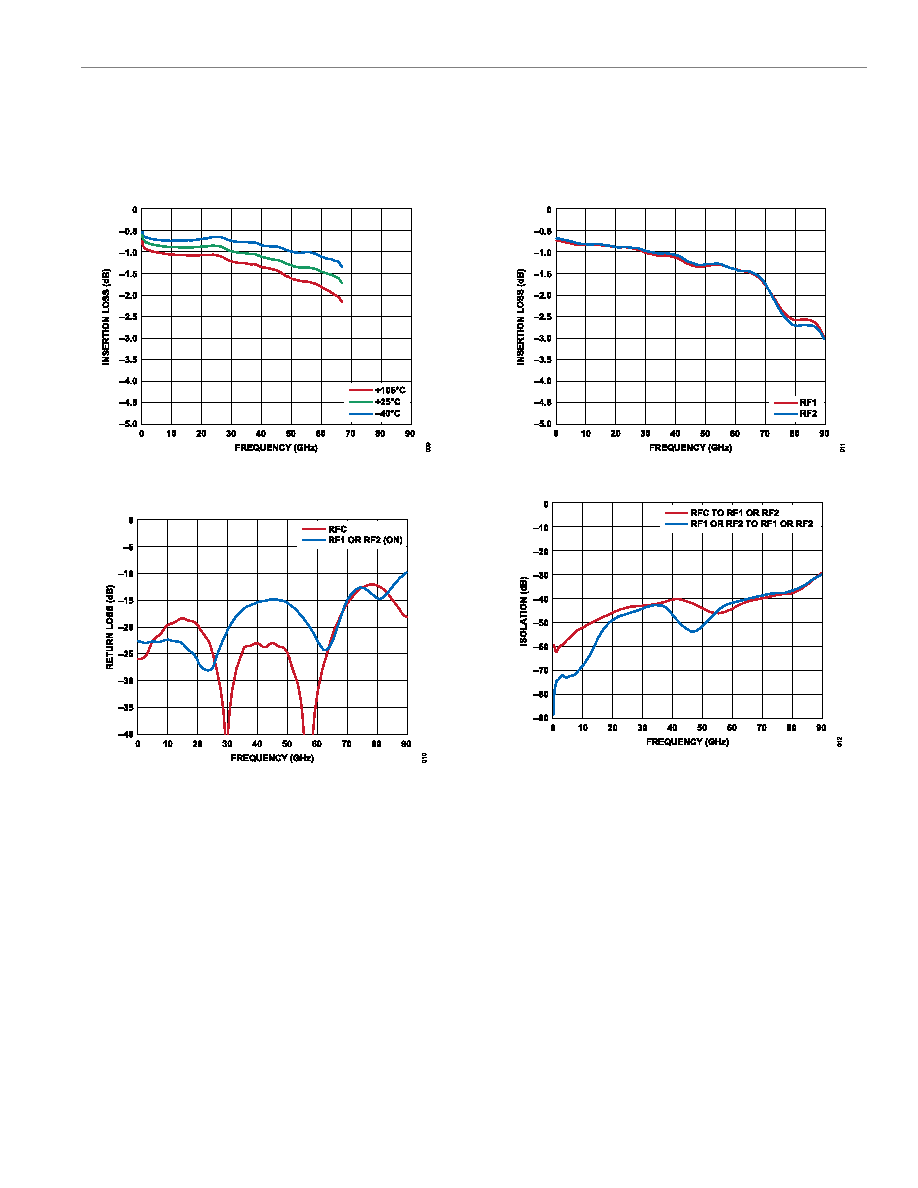

Figure 9. Insertion Loss vs. Frequency over Temperature (Setup Limitation Is

67GHz)

Figure 10. Return Loss vs. Frequency

Figure 11. Insertion Loss vs. Frequency

Figure 12. Isolation vs. Frequency
