Data Sheet
ADRF5440
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 12 of 18

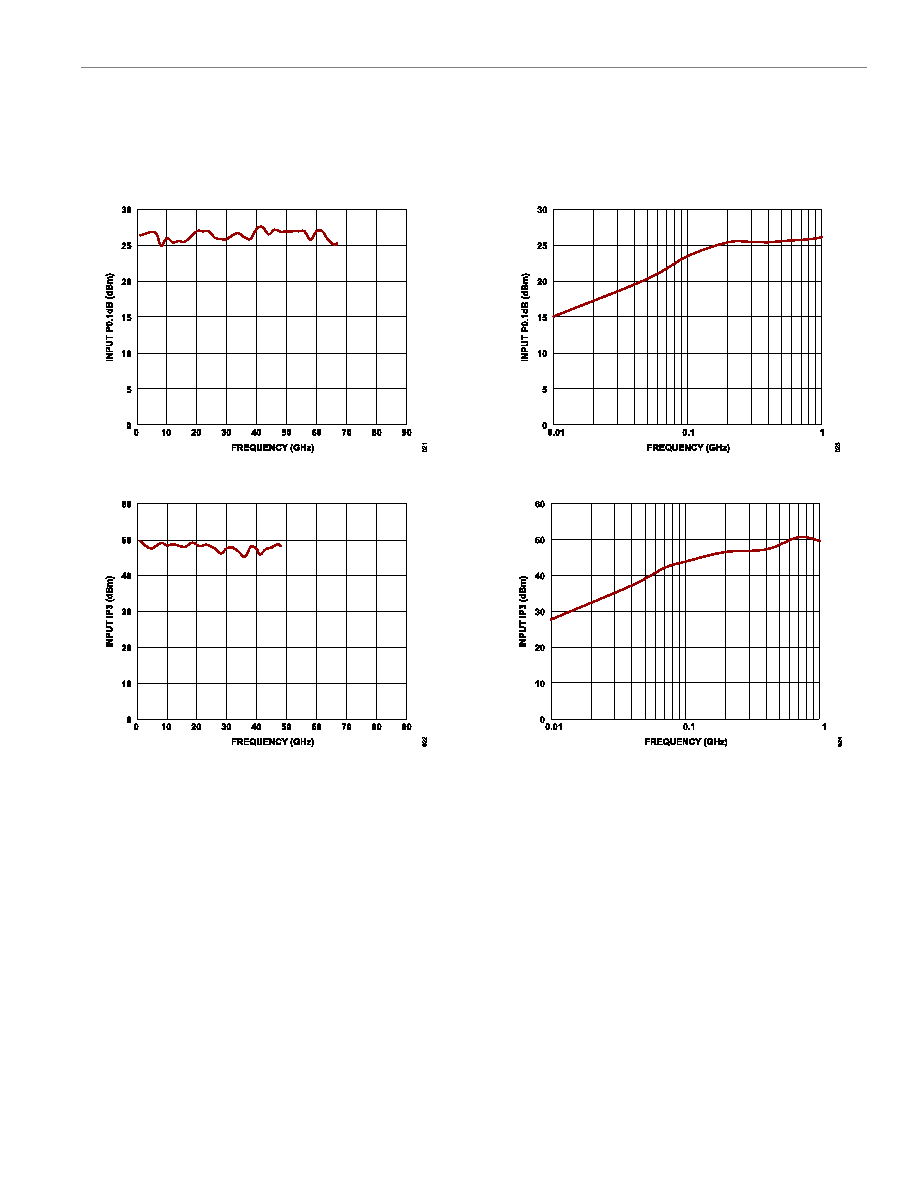

INPUT POWER COMPRESSION AND THIRD-ORDER INTERCEPT
VDD = 3.3V, VSS = −3.3V, V1 = V2 = 0V or VDD, and TCASE = 25°C for a 50Ω system, unless otherwise noted. The large signal performance
parameters are measured on a connectorized board.
Figure 21. Input P0.1dB vs. Frequency
Figure 22. Input IP3 vs. Frequency
Figure 23. Input P1dB vs. Frequency (Low Frequency Detail)
Figure 24. Input IP3 vs. Frequency (Low Frequency Detail)
