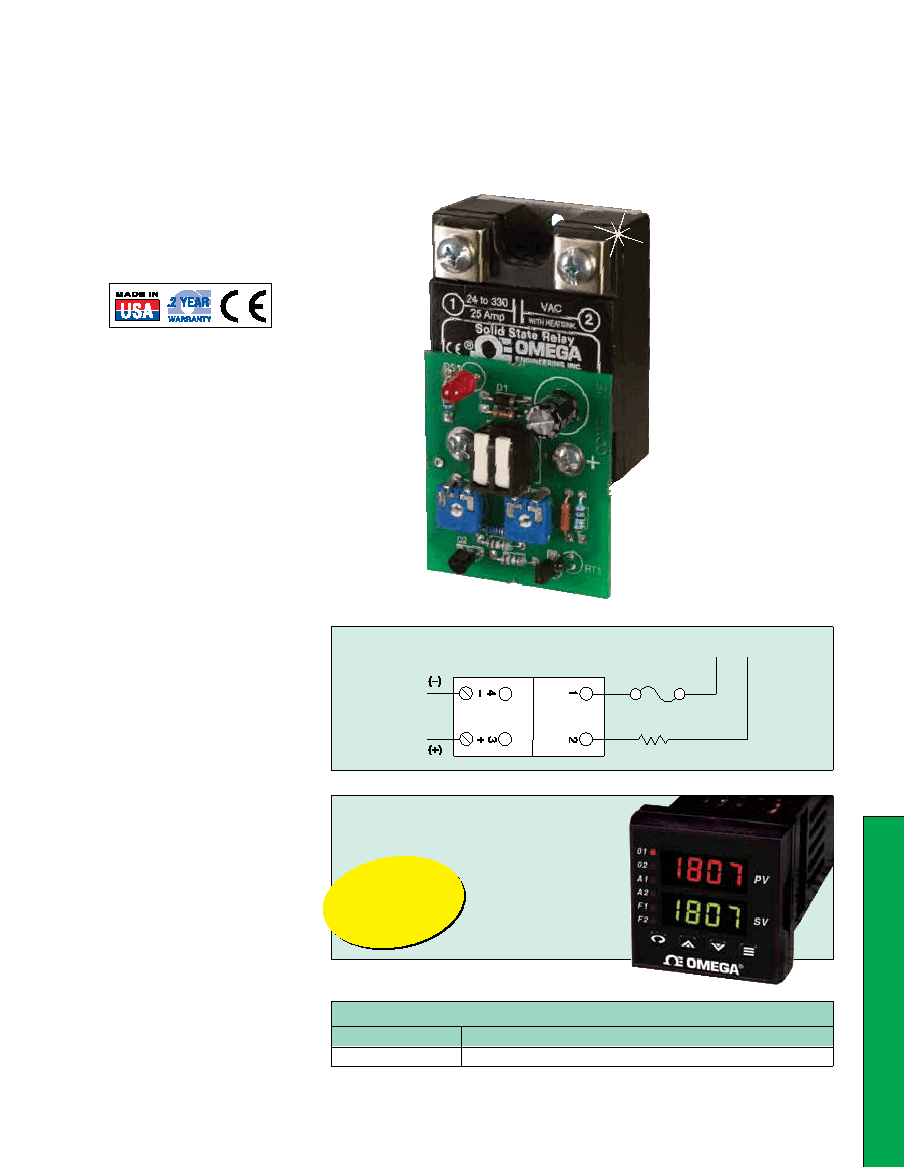

P-x

P

Pulse Control Module

Converts 4 to 20 mA

to Proportional Power Control

PCM5

The OMEGA® PCM5 Series

converter is designed to convert a

4 to 20 mA signal from a process/

temperature controller or computer to

a time proportional output.

The modules mount directly to the

input terminals on a 3 to 32 Vdc input

SSR, and supports single phase

50 or 60 Hz operation. Lever clamps

are provided on the converter for the

4 to 20 mA input.

The SSR’s power section provides

easy connection to the line and load.

U

Tolerates Inputs Less

than 4 mA

U

Converts 4 to 20 mA

to a Time Proportional Output

U

Mounts Directly on a Single

3 to 32 Vdc Input SSR

U

Supports Single Phase

50 or 60 Hz Operation

SPECIFICATIONS

Analog Input Signal: 4 to 20 mA

minimal; 0 to 30 mA permissible;

reverse polarity protected; no abnormal

operation below 4 mA

Compliance Voltage Requirement:

6.4V

Time Base: ~200 mS @ 50%,

~500 mS towards 0 and 100%

Ambient Temperature: 0 to 40°C

(32 to 104°F)

Dimensions: 45 L x 51 W x 20 mm D

(1.75 x 2.0 x 0.80")

To Order

Model No

Description

PCM5

Pulse control module

Comes complete with operator’s manual.

Ordering Example: PCM5, pulse control module.

-

INPUT

4 to 20 mA

PCM4

PCM5

Single Phase Application

PCM5 shown

actual size, mounted on

SSR330DC25, solid state

relay (sold separately).

4 to 20 mA

Optional

Fusing

Single Phase

Voltage Supply

Load

SSR

CN8202-R1 shown

smaller than actual size.

1

⁄16 DIN Universal Temperature

and Process Controllers

with 8-Segment Ramp/Soak

1

⁄8 DIN and

1

⁄4 DIN

Versions Are

Also Available!

Also Available from omega
