EP1017-R 데이터시트(PDF) 6 Page - Eorex Corporation

부품명 EP1017-R
상세설명  THREE-TERMINAL ADJUSTABLE OUTPUT POSITIVE VOLTAGE REGULATORS
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  EOREX [Eorex Corporation]
홈페이지  http://www.eorex.com
Logo EOREX - Eorex Corporation

EP1017-R 데이터시트(HTML) 6 Page - Eorex Corporation

  EP1017-R Datasheet HTML 1Page - Eorex Corporation EP1017-R Datasheet HTML 2Page - Eorex Corporation EP1017-R Datasheet HTML 3Page - Eorex Corporation EP1017-R Datasheet HTML 4Page - Eorex Corporation EP1017-R Datasheet HTML 5Page - Eorex Corporation EP1017-R Datasheet HTML 6Page - Eorex Corporation EP1017-R Datasheet HTML 7Page - Eorex Corporation EP1017-R Datasheet HTML 8Page - Eorex Corporation
Zoom Inzoom in Zoom Outzoom out
 6 / 8 page
background image
eorex
Preliminary
EP1017
Jun. 2007
www.eorex.com
6/8

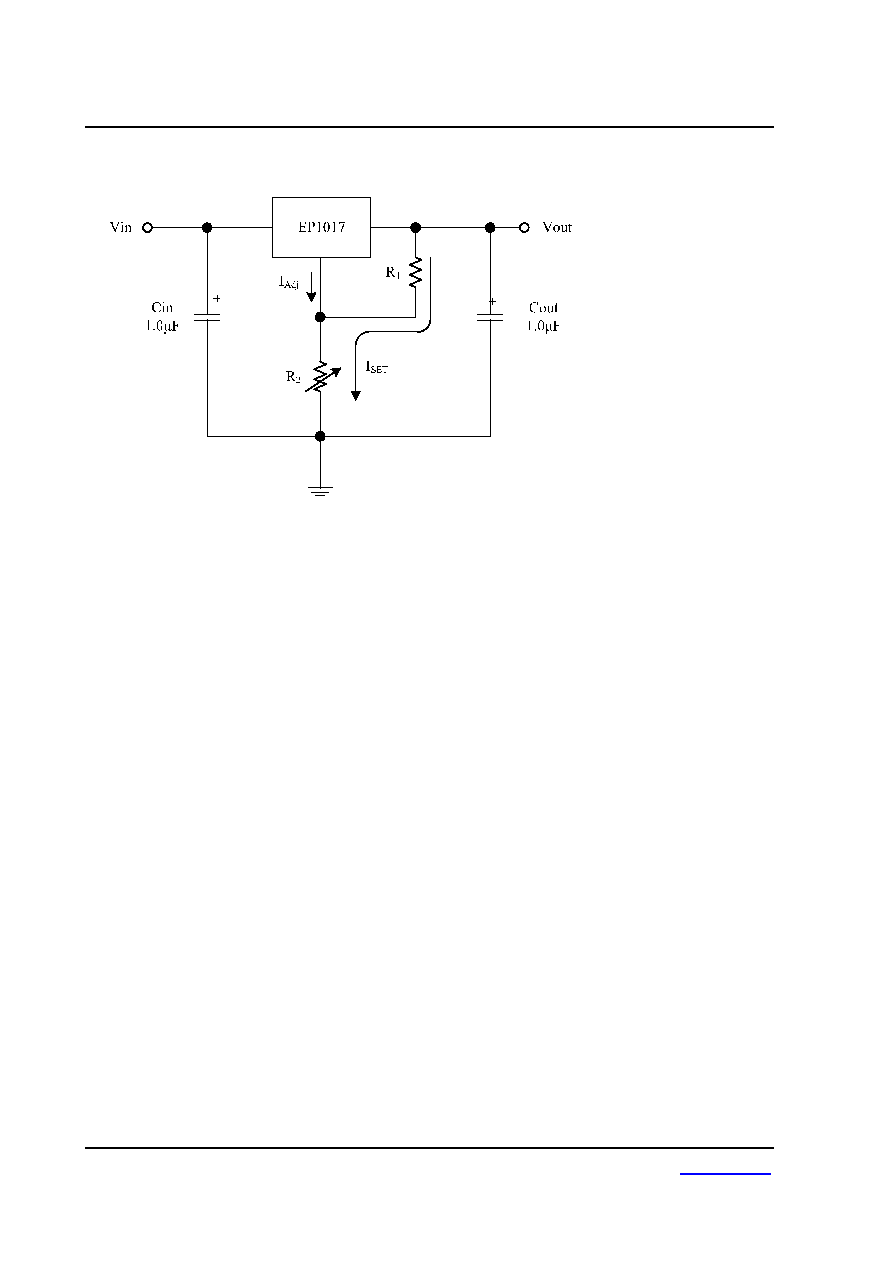

Standard Application
＊
Cin is required if regulator is located an appreciate distance from power supply filter.
＊
Cout is not needed for stability, however, it does improve transient response.
Vout=1.25(1+R2/R1)+IAdjR2
Since IAdj is controlled to less than 100 µA, the error associated with this term is negligible in most
applications.
＊
Pulse testing required. 1% Duty Cycle is suggested.
To calculate R2: Vout=ISETR2+1.250V ; Assume ISET=5.25mA
