Hardened PoE Long Reach Ethernet

Extender via Coaxial

IMC-150LPC

ƒ

Delivers data up to 300 m (985 ft) at 100Mbps with power via coaxial cable

ƒ

Extends power >15.4 watt power with 300 m (985 ft) long coaxial cable

ƒ

Railway Trackside EN 50121-4 EMC certified

ƒ

Features copper-based Link Fault Pass Through (LFPT)

ƒ

Supports Remote PD power ON/OFF by disabling/enabling port via

management switch

Introduction

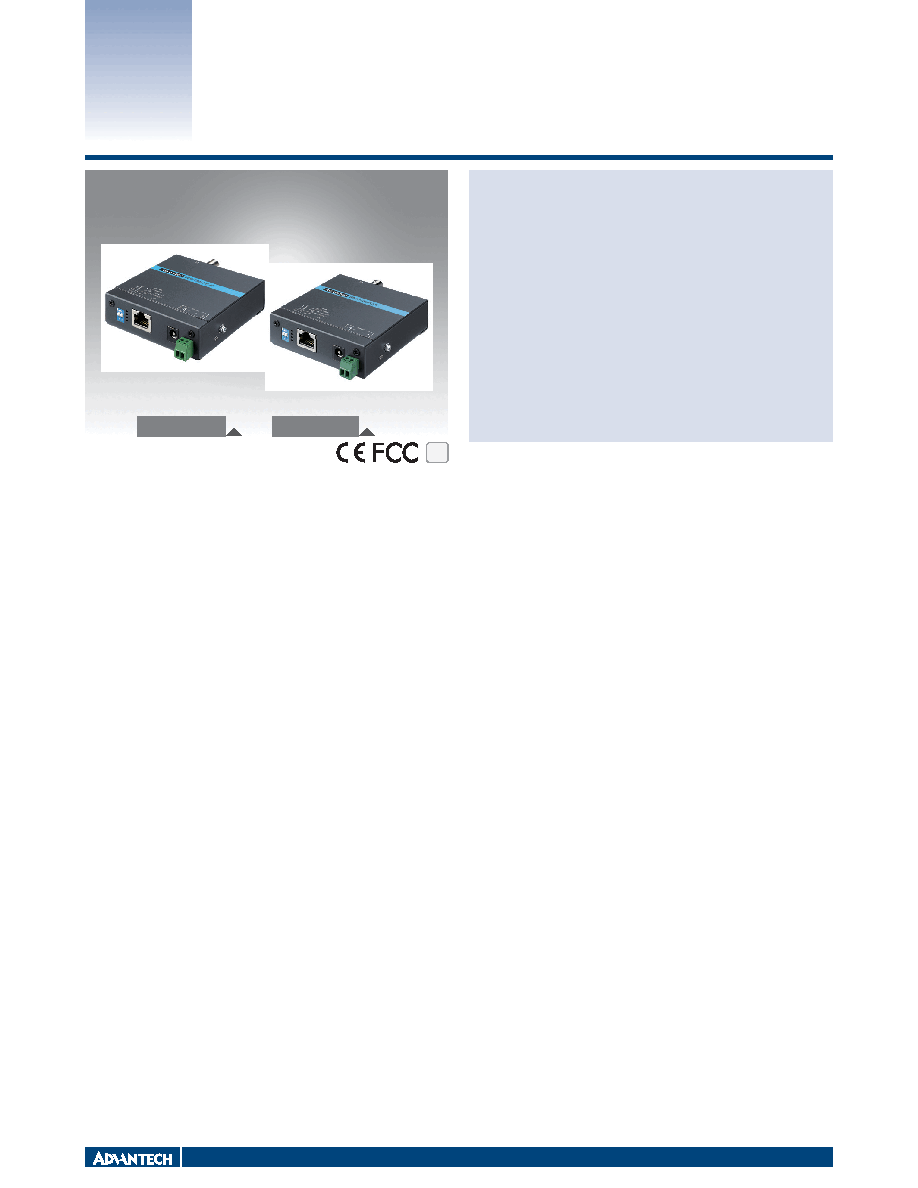

Advantech’s IMC-150LPC-M and IMC-150LPC-R are designed to be used as a pair. IMC-150LPC-M is designed for use at a central site while IMC 150LPC-R is used at a remote

site. Both devices are capable of extending data and power transmission by >15.4W at 300 m (985 ft) using extant coaxial cables. Indeed, this solution converts analogue cables into

Ethernet connection cables while saving on installation/digitalization costs. IMC-150LPC-M and IMC-150LPC-R further support PD power-off via a management switch to enable users

to control the unit remotely. This series is compliant with EN50121-4 standards for trackside installation and is capable of withstanding electromagnetic interference for rail networks.

Specifications

Communications

ƒ

Standard

IEEE 802.3, 802.3u, 802.3x, 802.3at/af

ƒ

LAN

10BASE-T/100BASE-TX

ƒ

Transmission Distances *Up to 300 meter

ƒ

Transmission Speed

Up to 100 Mbps

Interface

ƒ

Connectors

1 x 10/100Mbps RJ-45

1 x 10/100Mbps BNC Female

ƒ

DIP Switch

PIN 1 LFPT ON/OFF

PIN 2 (reserved, no function)

ƒ

LED Indicators

PWR/PoE

P1: LNK/ACT P2: LNK/ACT

Power

ƒ

Power Consumption

*IMC-150LPC-M: 23.5W

ƒ

Power Input

54~57VDC

ƒ

Power Output

*IMC-150LPC-R: >15.4W

ƒ

Connectors

2P Pluggable Terminal Block, DC Jack

Physical

ƒ

Enclosure

IP30, Metal shell with solid mounting kits

ƒ

Dimensions (W x H x D) 84 x 80 x 25 mm (3.3 x 3.15 x .984 in)

ƒ

Mounting

Wall

Protection

ƒ

Reverse Polarity

Present

Environment

ƒ

Operating Temperature -40 ~ 75 °C (-40 ~ 167 °F)

ƒ

Storage Temperature

-40 ~ 85 °C (-40 ~ 185 °F)

ƒ

Operating Humidity

10 ~ 95% (non-condensing)

ƒ

Storage Humidity

10 ~ 95% (non-condensing)

Certifications

ƒ

Safety

LVD EN62368

ƒ

EMI

CE, FCC,

ƒ

EMS

EN 61000-4-2

EN 61000-4-3

EN 61000-4-4

EN 61000-4-5

EN 61000-4-6

EN 61000-4-8

ƒ

Railway Trackside

EN 50121-4

ƒ

Shock

IEC 60068-2-27

ƒ

Freefall

IEC 60068-2-32

ƒ

Vibration

IEC 60068-2-6

ƒ

Patent

http://www.advantech.com/legal/patent

Ordering Information

ƒ

IMC-150LPC-M

Industrial Long Reach PoE+ Extender, Master

ƒ

IMC-150LPC-R

Industrial Long Reach PoE+ Extender, Remote

ƒ

IMC-150PS-120

Power Adapter, 100-240V,54V, 120W (Sold separately)

IMC-150LPC-M

IMC-150LPC-R
