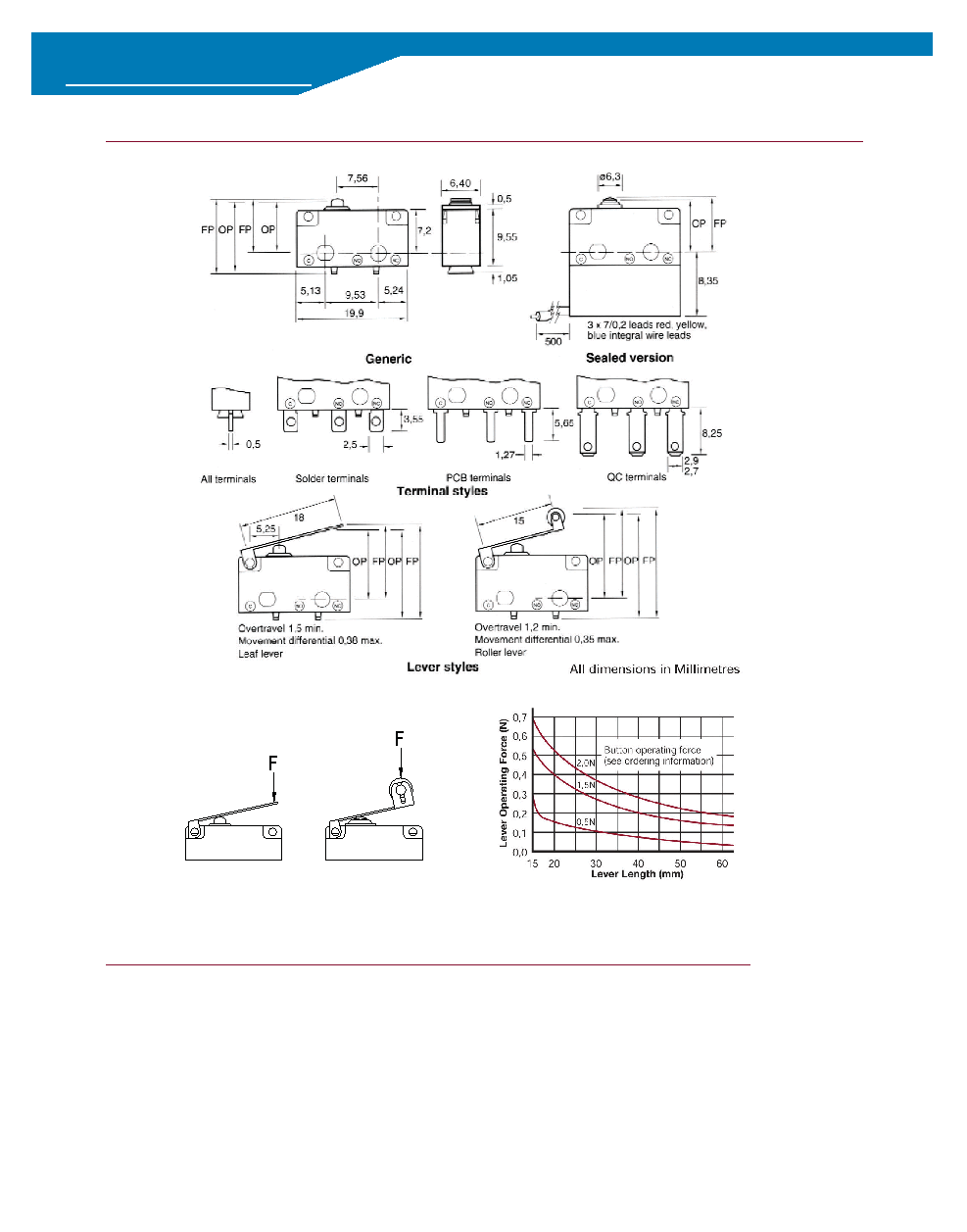

PRODUCT DRAWINGS

SERIES 19N - MICROSWITCH

MICROSWITCHES

BUTTON/LEVER POSITIONS:

Free position (F.P)

Standard switch to mounting holes 9.14 max

Standard switch to PCB 12.35 max

Sealed switch to mounting holes 9.35 max

Leaf lever to mounting holes 12.50 max

Leaf lever to PCB 15.70 max

Roller lever to mounting holes 17.20 max

Roller lever to PCB 20.40 max

Operating point (O.P)

Standard switch to mounting holes 8.40 ±0.40

Standard switch to PCB 11.60 ±0.40

Sealed switch to mounting holes 8.50 ±0.40

Leaf lever to mounting holes 10.15 ±1.37

Leaf lever to PCB 13.38 ±1.37

Roller lever to mounting holes 15.50 ±1.14

Roller lever to PCB 18.25 ±1.14

Arrow shows direction of force

and point of contact

Graph to calculate operating force

at end of lever
