Catalog | ABB general purpose drives ACS310 23

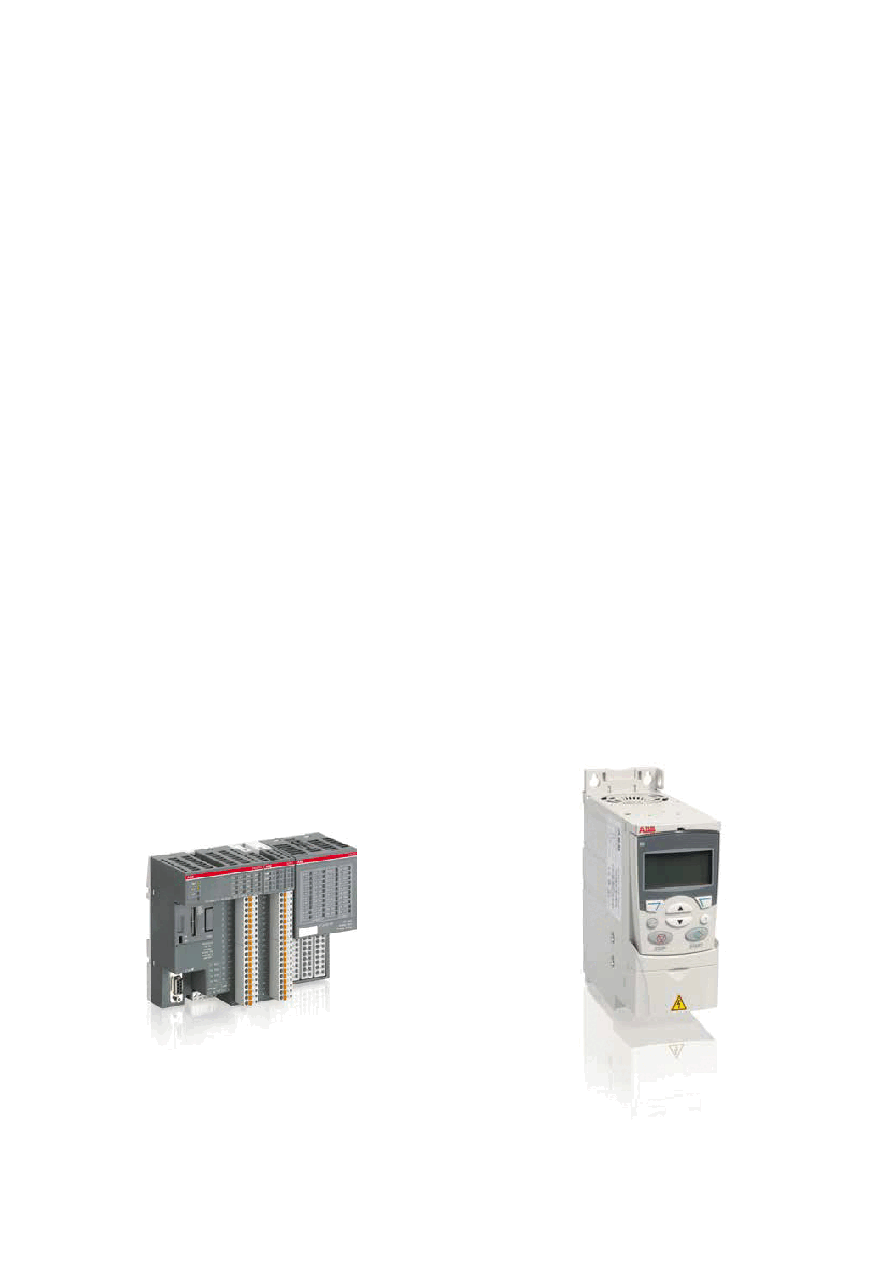

Compact AC500-eCo PLC with ACS310

ABB’s Programmable Logic Controller AC500-eCo can be

used for controlling and monitoring the system, for

applications that require complex control logic and when

several drives are connected together through Modbus

link.

Easy commissioning and fast startup

Additionally SREA-01 Ethernet adapter offers Modbus TCP

to Modbus RTU gateway functionality which enables Modbus

TCP connectivity to ACS310. Please refer to SREA-01 user’s

guide for more detailed information.

Compact design saves installation space

− The compact size of the PLC and drive provides

flexibility when integrating into existing or new system

designs.

− AC500-eCo is an economical, entry level PLC for

stand-alone solutions and equipment control. It saves

space due to onboard digital and analog I/O. AC500-eCo is

easy to program and provides six programming languages.

Flexible system expansion

When the system requirements expand, ABB’s wide product

range provides a flexible and cost-efficient way to meet the

system’s growing needs.

AC500-eCo belongs to the AC500 PLC platform. AC500 is

a scalable and modular platform which can be combined

and flexibly expanded to suit either decentralized or

centralized configurations.

Automation Builder, the programming tool for AC500, is

based on IEC 61131-3 standard. Automation Builder is

used for the entire AC500 PLC platform. Automation

Builder easily allows to change the CPU in an existing

configuration to fit the CPU type to the performance

need of the application.

Ready-made communication and control blocks for

AC500-eCo and AC500 PLC range are available,

supporting a wide range of ABB’s low voltage AC drives.

Benefits

− Control of a motor in minutes

− Cost-efficient system expansion, since the same

application program can be used for the entire AC500

PLC platform

− Fast commissioning with ready-made Modbus macro.
