R31DS0210EU0106 Rev.1.06
Page 31
May 11, 2026
RC193xx Datasheet

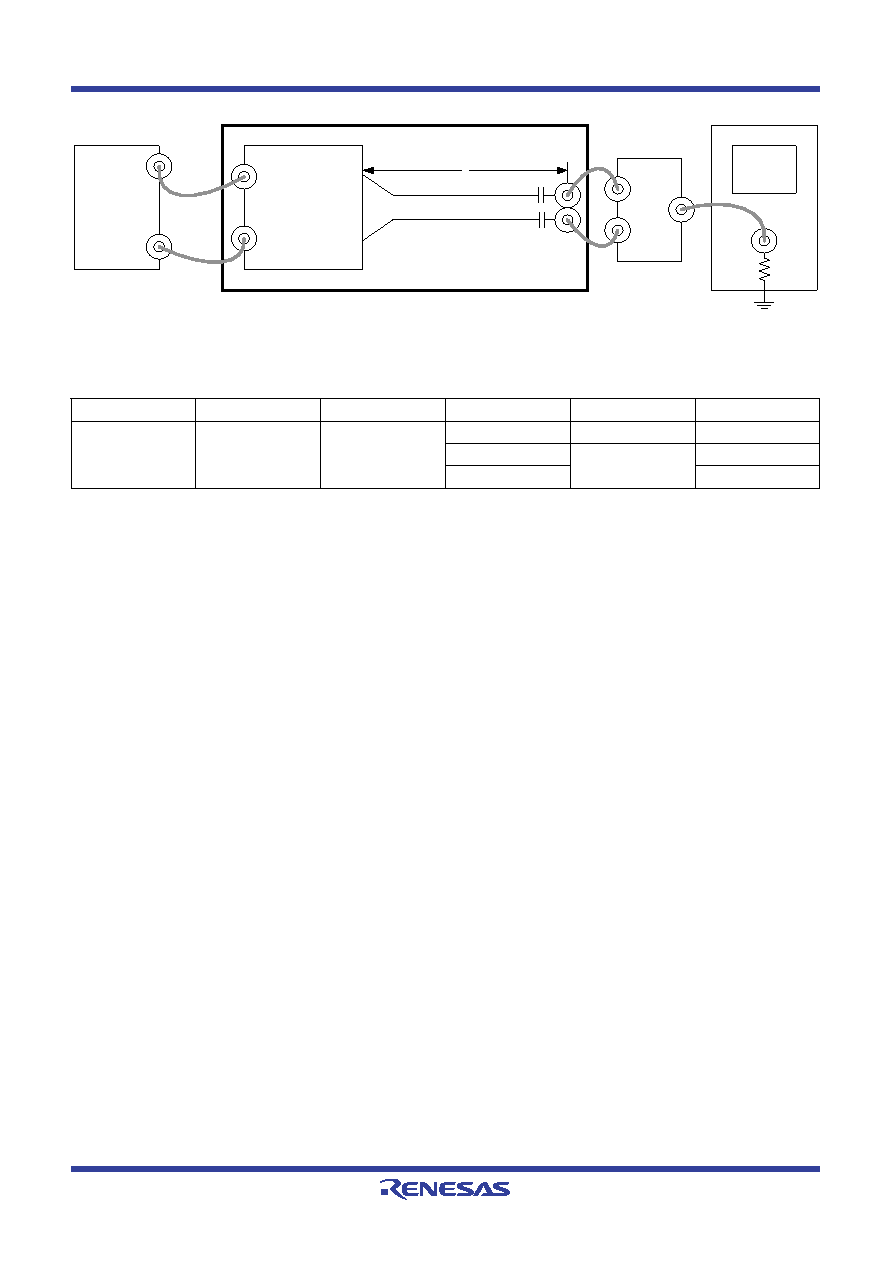

Figure 12. Test Load for PCIe Phase Jitter Measurements
Table 30. Parameters for PCIe Jitter Measurement
Clock Source
L (cm) [1]
1. PCIe Gen5-7 specify L = 0cm for 32, 64 and 128GT/s. L = 25.4cm is more conservative.
CAC (uF)
ZOUTSEL_tri pin
Zo (ohms)
Rs (ohms)
SMA100B
25.4
0.1
0 (85 ohms)
85
Internal
1 (100 ohms)
100
Internal
Mid (34 ohms)
None
DUT Board
CKIN+
CK+
DUT Chip
CKIN-
CK-
Zo (differential)
Rs
Rs
CK+
Clock Source
CK-
SMA
Balun
SMA
L
CAC
CAC
PNA
50
SMA
