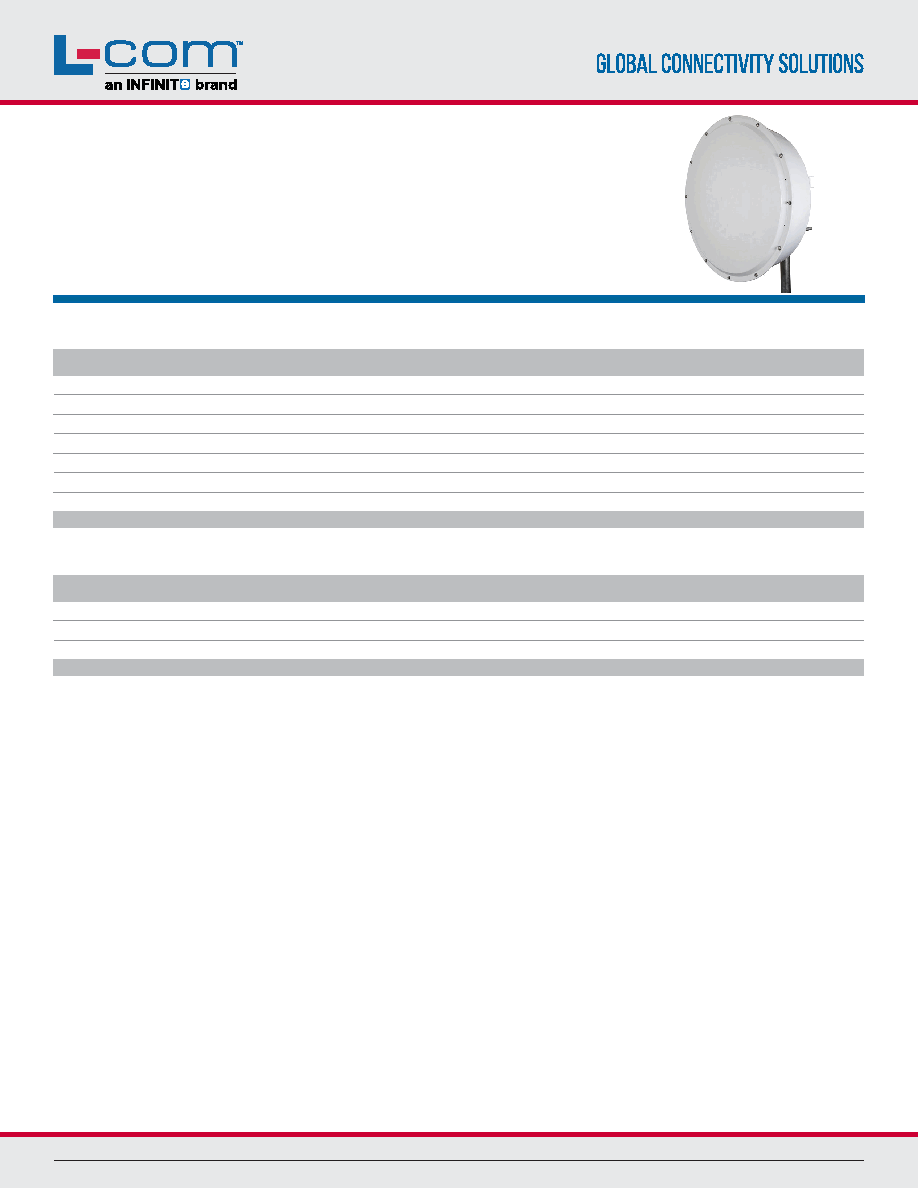

4950 MHz to 7125 MHz, 2-foot deep dish Parabolic

Antenna, 2x2 MIMO, 30 dBi, RPSMA

HG4971DP-30DD-RSP

Electrical Specifications

Description

Minimum

Typical

Maximum

Units

Frequency Range

4,950

7,125

MHz

Input VSWR

2:1

Impedance

50

Ohms

Front to Back Ratio

35

dB

Horizontal (Azimuth) HPBW

5

Degrees

Vertical (Elevation) HPBW

5

Degrees

Input Power

50

Watts

.

Specifications by Band

Description

Band 1

Band 2

Band 3

Band 4

Band 5

Units

Range

4.95-5.1

5.1-5.9

5.9-7.125

GHz

Gain

29

30

31

dBi

VSWR Max

2.5:1

2:1

2:1

.

e

Mechanical Specifications

Radome Material

Aluminum

Size

Length

23.6 in [599.44 mm]

Width

23.6 in [599.44 mm]

Height

8 in [203.2 mm]

Mounting Mast Diameter

1.1811 to 3.14961 in [30.00 to 80.00 mm]

Weight

22 lbs [9.98 kg]

Environmental Specifications

Temperature

Operating Range

-40 to +70 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data

Notes:
