DBD-R2V1-S 데이터시트(PDF) 5 Page - List of Unclassifed Manufacturers

부품명 DBD-R2V1-S
상세설명  Dual Mode Bi-directional Dual Input Laser Driver
PDF  6 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  ETC2 [List of Unclassifed Manufacturers]
홈페이지
Logo ETC2 - List of Unclassifed Manufacturers

DBD-R2V1-S 데이터시트(HTML) 5 Page - List of Unclassifed Manufacturers

  DBD-R2V1-S Datasheet HTML 1Page - List of Unclassifed Manufacturers DBD-R2V1-S Datasheet HTML 2Page - List of Unclassifed Manufacturers DBD-R2V1-S Datasheet HTML 3Page - List of Unclassifed Manufacturers DBD-R2V1-S Datasheet HTML 4Page - List of Unclassifed Manufacturers DBD-R2V1-S Datasheet HTML 5Page - List of Unclassifed Manufacturers DBD-R2V1-S Datasheet HTML 6Page - List of Unclassifed Manufacturers
Zoom Inzoom in Zoom Outzoom out
 5 / 6 page
background image
550 E. W eddell D rive, Su ite 4 , Sunnyva le, CA 94089 , U. S. A . Tel.: (408 ) 747 -9760 , Fax : (408 ) 747 -9770 , W eb: www .analogtechnologies.com
© Copyright 2000 – 2003, Analog Technologies, Inc. All Rights Reserved.
5
DBD-R2V1
Analog Technologies, Inc.

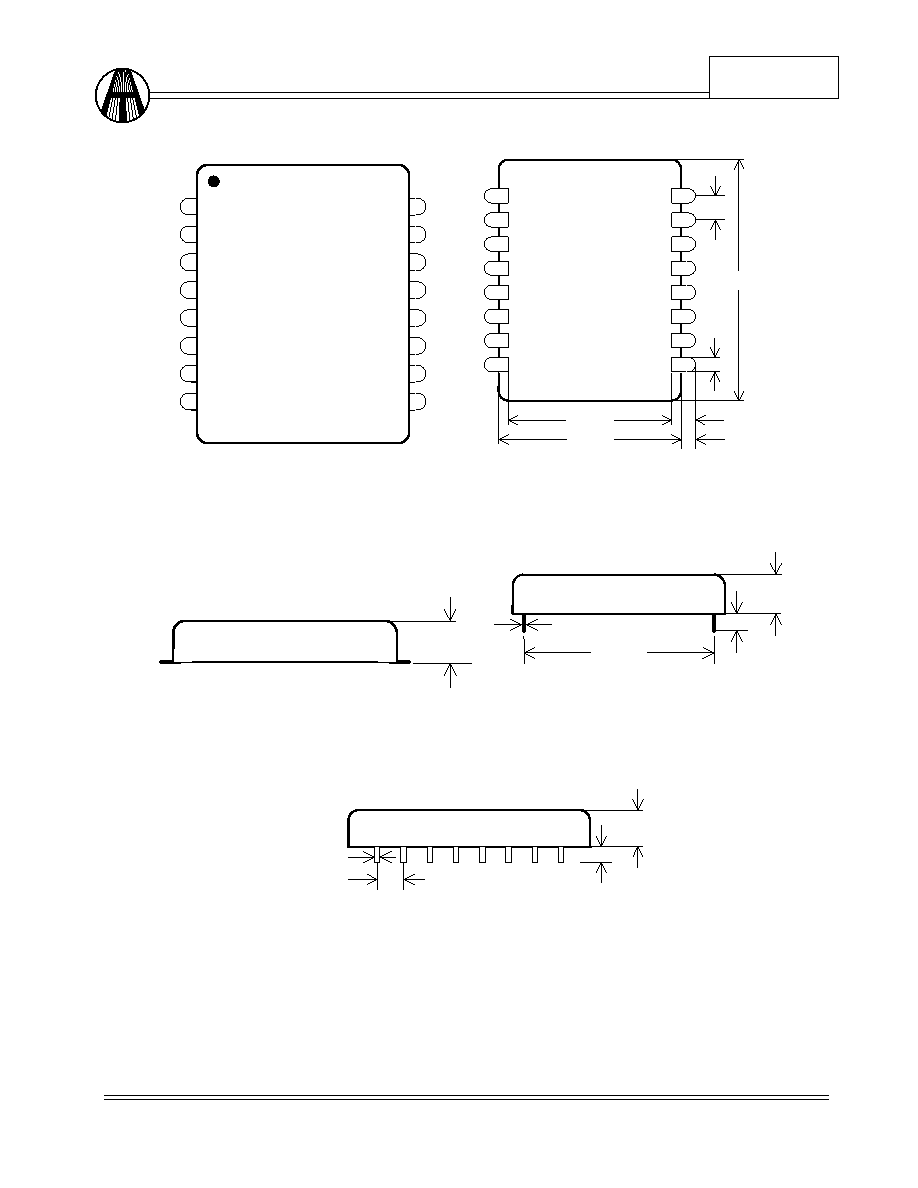

Mechanical dimensions
Figure 2 Top View of DBD-R2V1-S
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
LIO
CLGD
GND
LPI
LPS
LIS
LDC
GND
VPS
GND
SDI/MIND
CSLD
SD
2.5V
SCK
LDA
25.5mm
2.54mm
20mm
1.26mm
1.26mm
2.26mm
Figure 3 Bottom View of DBD-R2V1-S
18mm
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
4.5mm
Figure 4 End View of DBD-R2V1-S
4.5mm
0.42mm
Figure 5 End View of DBD-R2V1-D
18mm
3mm
4.5mm
0.6mm
Figure 6 Side View of DBD-R2V1-D
2.54mm
3mm
