LR6-102WCBW-R 데이터시트(PDF) 4 Page - PATLITE CORPORATION.

부품명 LR6-102WCBW-R
상세설명  Signal Tower
PDF  9 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  PATLITE [PATLITE CORPORATION.]
홈페이지  https://www.patlite.com/
Logo PATLITE - PATLITE CORPORATION.

LR6-102WCBW-R 데이터시트(HTML) 4 Page - PATLITE CORPORATION.

  LR6-102WCBW-R Datasheet HTML 1Page - PATLITE CORPORATION. LR6-102WCBW-R Datasheet HTML 2Page - PATLITE CORPORATION. LR6-102WCBW-R Datasheet HTML 3Page - PATLITE CORPORATION. LR6-102WCBW-R Datasheet HTML 4Page - PATLITE CORPORATION. LR6-102WCBW-R Datasheet HTML 5Page - PATLITE CORPORATION. LR6-102WCBW-R Datasheet HTML 6Page - PATLITE CORPORATION. LR6-102WCBW-R Datasheet HTML 7Page - PATLITE CORPORATION. LR6-102WCBW-R Datasheet HTML 8Page - PATLITE CORPORATION. LR6-102WCBW-R Datasheet HTML 9Page - PATLITE CORPORATION.
Zoom Inzoom in Zoom Outzoom out
 4 / 9 page
background image
■

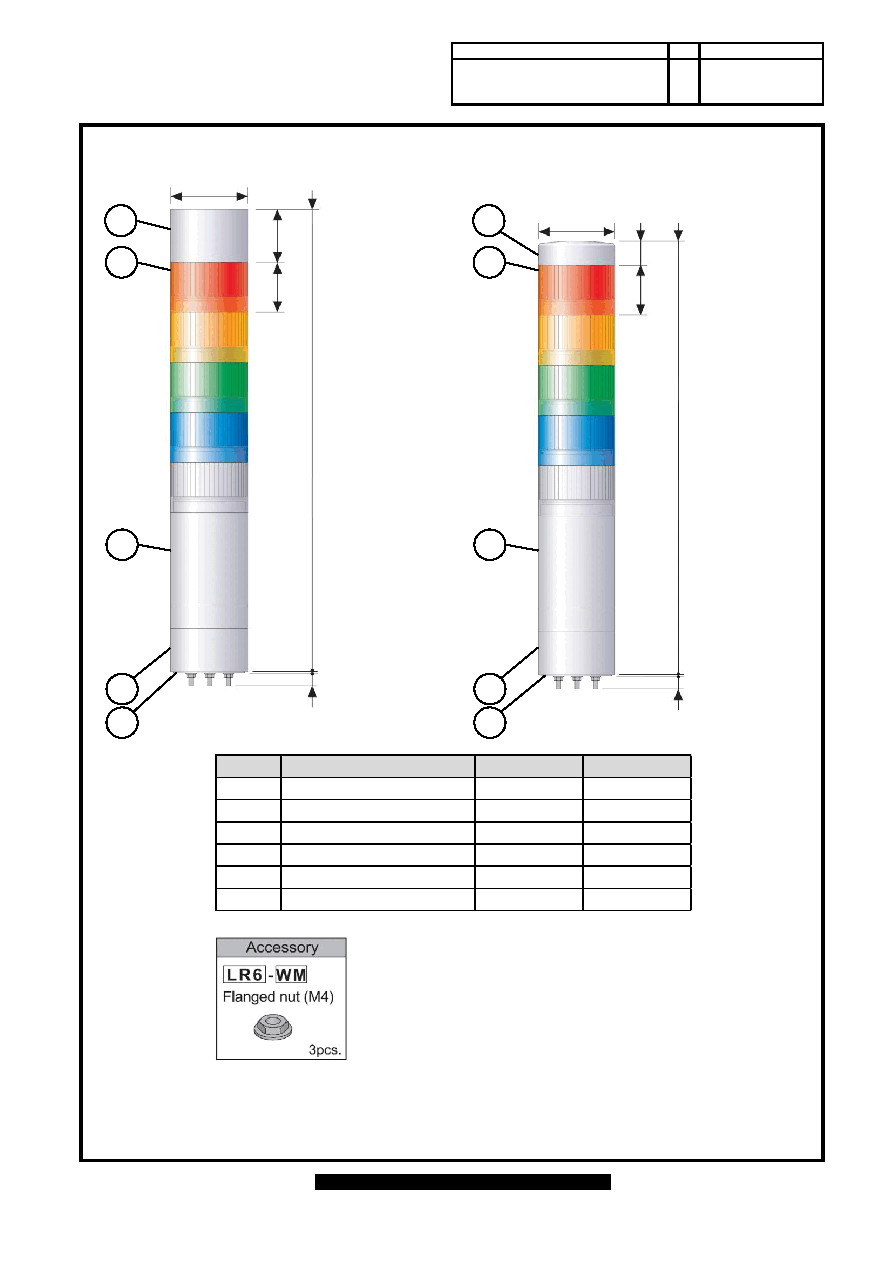

LR6-□02WMBW-□+FB295
■
LR6-□02WMNW-□+FB295
[mm]
Drawing No.
Rev.
Page
LR6-FB295-W18
B
2
3
4
5
6
11
LR6- 02WMNW：151
LR6-102WMNW：191
LR6-202WMNW：231
LR6-302WMNW：271
LR6-402WMNW：311
LR6-502WMNW：351
Φ60
40
19
Maximum Board Thickness：6
1
3
4
5
6
Φ60
40
53.5
11
Maximum Board Thickness：6
LR6-102WMBW：225.5
LR6-202WMBW：265.5
LR6-302WMBW：305.5
LR6-402WMBW：345.5
LR6-502WMBW：385.5
6
Mounting Gasket
Silicone Rubber
-
2
Head Cover
PC
V-2
5
Direct Mount Bracket
PC
V-2
3
Globe (LED Unit)
PC
V-2
4
Body
PC
V-2
Number
Name
Material
UL Flammability
1
Buzzer Case (Buzzer Unit)
PC
V-2
1
1
4 / 9
