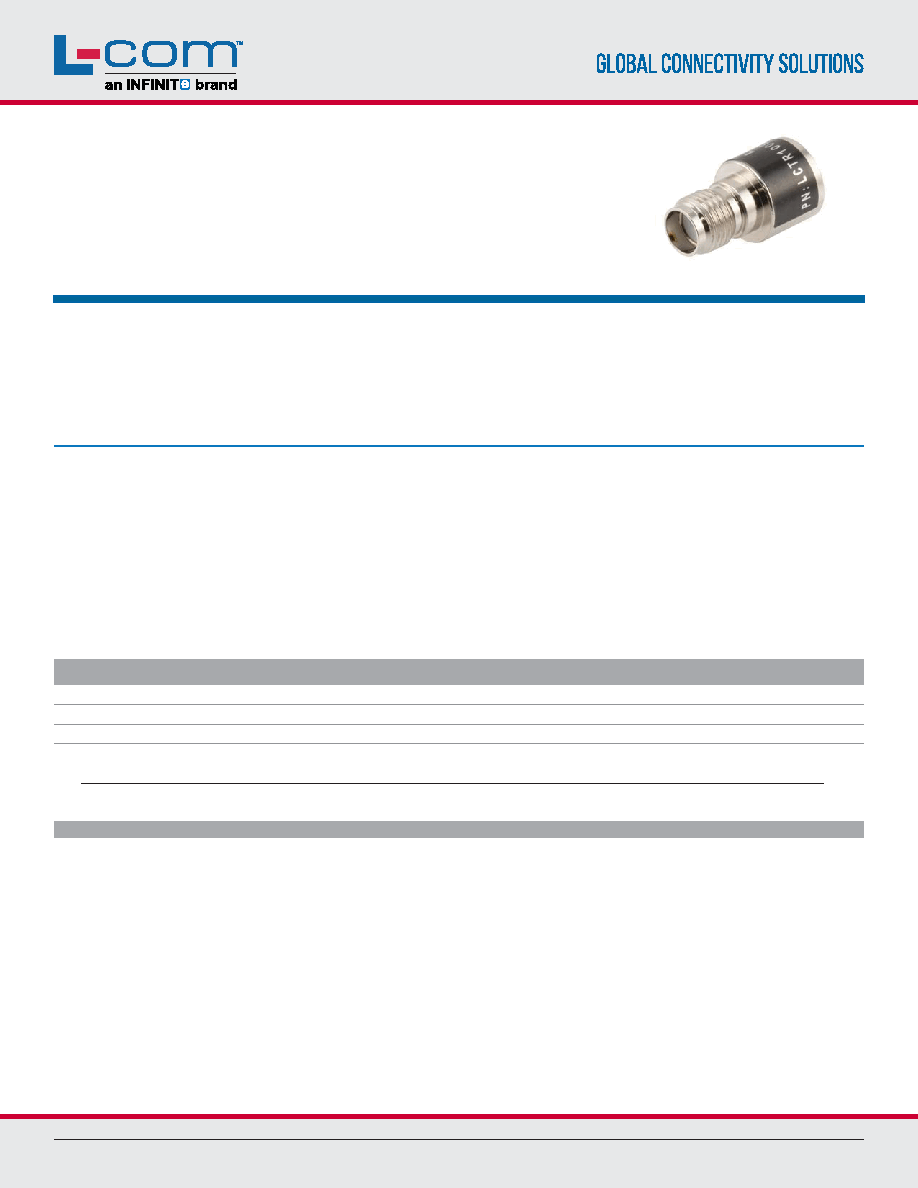

2 Watt RF Load Up to 18 GHz with SMA Female

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price, inventory and certifications:

2 Watt RF Load Up to 18 GHz with SMA Female LCTR1009

Features

•

Frequency range from DC to 18GHz

• Max Power 2W

•

Operating temp range from -55 to 125C

•

VSWR <1.40:1

Applications

•

Coaxial termination

•

50 Ohm applications

•

Signal splitters

.

Description

L-com’s LCTR1009 is an RF termination (also called RF load or dummy load) that operates from DC to 18 GHz and handles up to 2 Watt

(CW). This SMA termination / load has a female gender. LCTR1009 termination offers 1.35:1 max VSWR.

RF loads/terminations are indispensable components in many RF, microwave and millimeter wave systems where signal reflection from

unused ports can potentially damage the device or reduce the signal integrity. By using a terminator on an unused port with a matched

load (dummy load), the incident energy will be absorbed with minimal reflection. These termination components are commonly used to

terminate devices such as couplers, circulators, and switches. They are also widely used in measurement systems to ensure accurate

results.

Electrical Specifications

Description

Minimum

Typical

Maximum

Units

Frequency Range

DC

18

GHz

Impedance

50

Ohms

VSWR

1.4:1

Input Power (CW)

2

Watts

derated linearly to 0.2W @ +125°C

Input Power (Peak)

250

Watts

5µs pulse with 0.4% duty cycle

.

Mechanical Specifications

Size

Length

0.63 in [16 mm]

Width

0.36 in [9.14 mm]

.

Weight

0.011 lbs [4.99 g]

.

Configuration

Connector

SMA Female

LCTR1009
