[General Specifications]

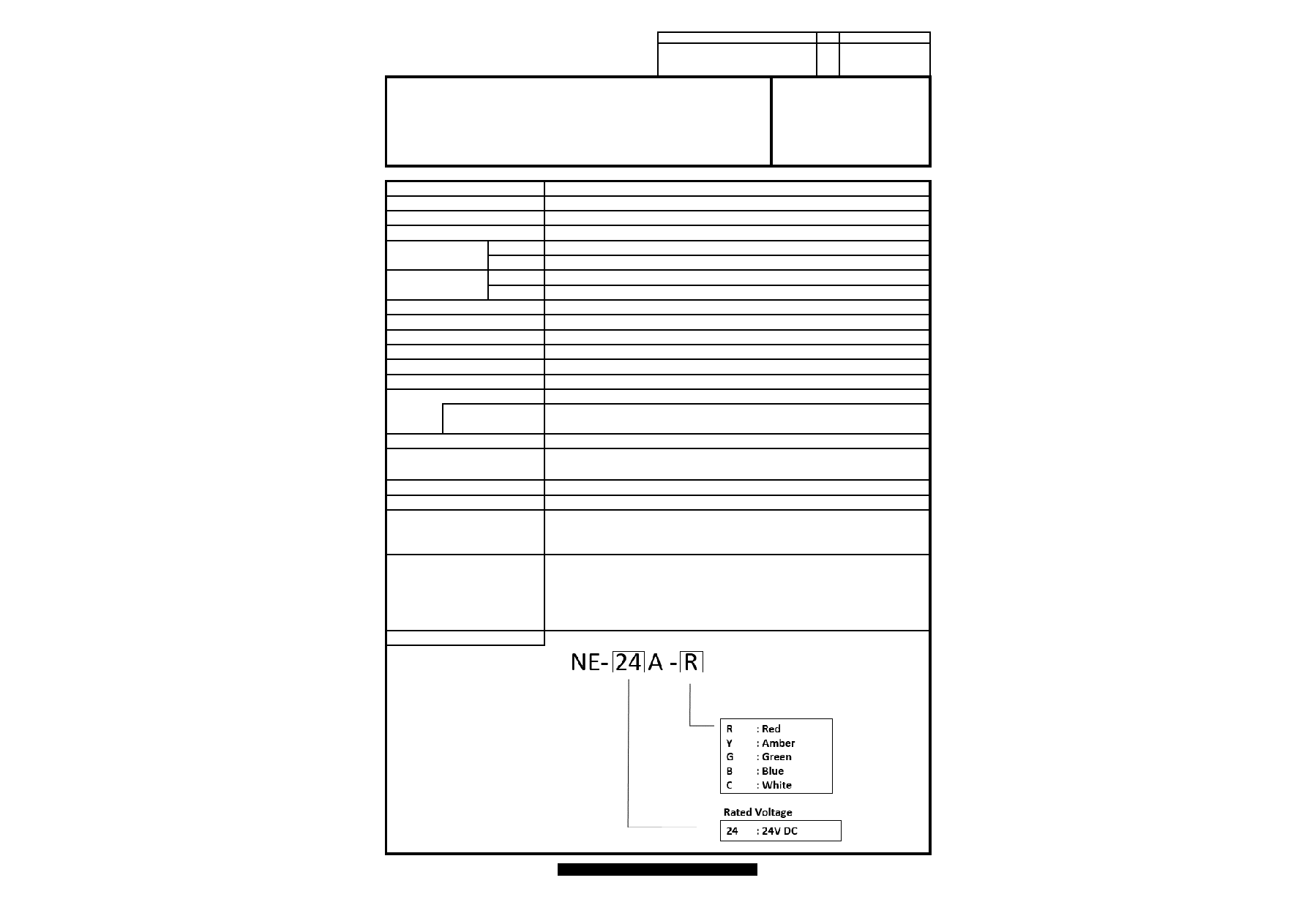

Model Number Configuration

Operating Voltage Range

Outer Dimensions

Refer to the Outer Dimension Drawing

UL 508, CSA-C22.2 No. 14

EMC Directive (EN 61000-6-4, EN 61000-6-2)

RoHS Directive (EN IEC 63000)

Insulation Resistance

More than 5MΩ at 500VDC between live part and non-current carrying metallic part

Withstand Voltage

500VAC applied for 1min between live part and non-current carrying metallic part

without breaking insulation

Mass (Tolerance ±10%)

0.06kg

Mounting Direction

All Directions

Protection Rating

IP65,　NEMA TYPE 4X, 13

All Directions

Environmental

Condition

Storage Ambient Temperature

-40℃ to +75℃

Storage Ambient Humidity

Less than 90% (No condensation)

Mounting Location

Indoor

0.7W

-30℃ to +50℃

Less than 90% (No condensation)

Operating Ambient Temperature

Operating Ambient Humidity

Rated Power

Consumption

Typ.

Max.

22mA

Rated Current

Consumption

Typ.

Max.

26mA

0.6W

Page

SPECIFICATIONS

Conformity Standards

Product Name

Signal Beacon

Model

NE-24A-□

Rated Voltage

24V DC

Rated Voltage ±10%

Remarks

Due to the characteristics of the LED elements, a variation in difference of the color

tone and brightness of every product may occur.

UL Recognized Component (File No.E215660)

Conforms to the CE Requirements

Conforms to the UKCA Requirements

Drawing No.

Rev.

D

Luminous Color

1/2

NE-24A-W18
