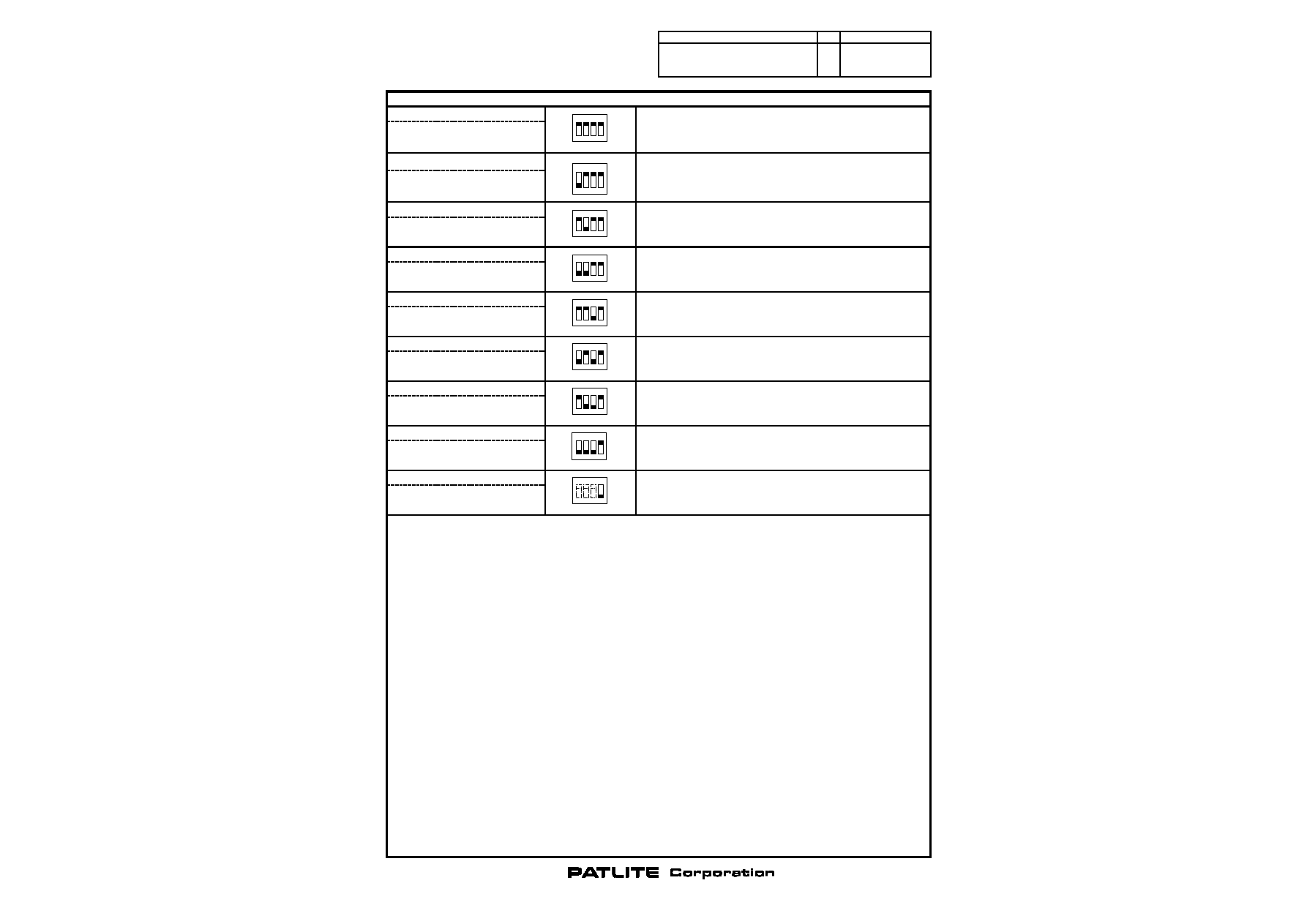

Play mode　（Operation Mode Switch Setting）

Drawing No.

Rev.

Page

E

A

CH input : CH1 - CH4

Number of playback messages : 4

Bit Input Mode

B

CH input : CH1 - CH4

Number of playback messages : 15

Binary Input Mode

C

CH input : CH1 - CH3 Number of playback messages : 3

CH4 : Input reduces the volume by 20dB.

Bit Input・Sound

Reduction Mode

D

CH input : CH1 - CH3 Number of playback messages : 7

CH4 : Input reduces the volume by 20dB.

Binary Input・Sound

Reduction Mode

CH input : CH1 - CH4 Number of playing messages : 15

Message playback is possible only while the input is held on.

Playback stops when the input stops.

Binary Input・Hold

Playback Mode

E

CH input : CH1 - CH4 Number of playback messages : 4

While a message is being played, and an input for the next message is

entered while the message is being played, the message that is being

played is stopped and the entered message is played.

Bit Input･Latest Input

Priority Playback Mode

F

CH input : CH1 - CH4 Number of playing messages : 15

While a message is being played, and an input for the next message is

entered while the message is being played, the message that is being

played is stopped and the entered message is played.

Binary Input･Latest Input

Priority Playback Mode

I

Message No.1 plays.

( Revolving Light doesn't operate. )

Test Mode

G

CH input : CH1 - CH4 Number of playing messages : 4

Message playback is possible only while the input is held on.

Playback stops when the input stops.

Bit Input・Hold

Playback Mode

H

1 2 3 4

ON

1 2 3 4

ON

1 2 3 4

ON

1 2 3 4

ON

1 2 3 4

ON

1 2 3 4

ON

1 2 3 4

ON

1 2 3 4

ON

1 2 3 4

ON

～Caution on copyright～

If a work that was recorded or copied from music CDs or other media is used at public places,

law enforcement for copyright infringement may be imposed. When using a work that was

recorded or copied from music CDs or other media, be sure to obtain permission from the author.

In addition, the copyright of audio/music data which are distributed or sold by PATLITE

Corporation belongs to PATLITE. It is strictly prohibited to copy/reprint the partial or whole

contents of audio/music data of PATLITE Corporation or to transfer/sell them on computer

networks etc. without the permission of the right holder.

2/3

RT-24VFUL-W18
