SL10-M1KTN-R 데이터시트(PDF) 5 Page - PATLITE CORPORATION.

부품명 SL10-M1KTN-R
상세설명  Flashing Beacons
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  PATLITE [PATLITE CORPORATION.]
홈페이지  https://www.patlite.com/
Logo PATLITE - PATLITE CORPORATION.

SL10-M1KTN-R 데이터시트(HTML) 5 Page - PATLITE CORPORATION.

  SL10-M1KTN-R Datasheet HTML 1Page - PATLITE CORPORATION. SL10-M1KTN-R Datasheet HTML 2Page - PATLITE CORPORATION. SL10-M1KTN-R Datasheet HTML 3Page - PATLITE CORPORATION. SL10-M1KTN-R Datasheet HTML 4Page - PATLITE CORPORATION. SL10-M1KTN-R Datasheet HTML 5Page - PATLITE CORPORATION.
Zoom Inzoom in Zoom Outzoom out
 5 / 5 page
background image
■
SL10-M1JN
■
SL10-M2JN
■
SL10-M1KT□
■
SL10-M2KT□
※
For No Buzzer Models,
do not require wiring.
■
Flash Pattern List

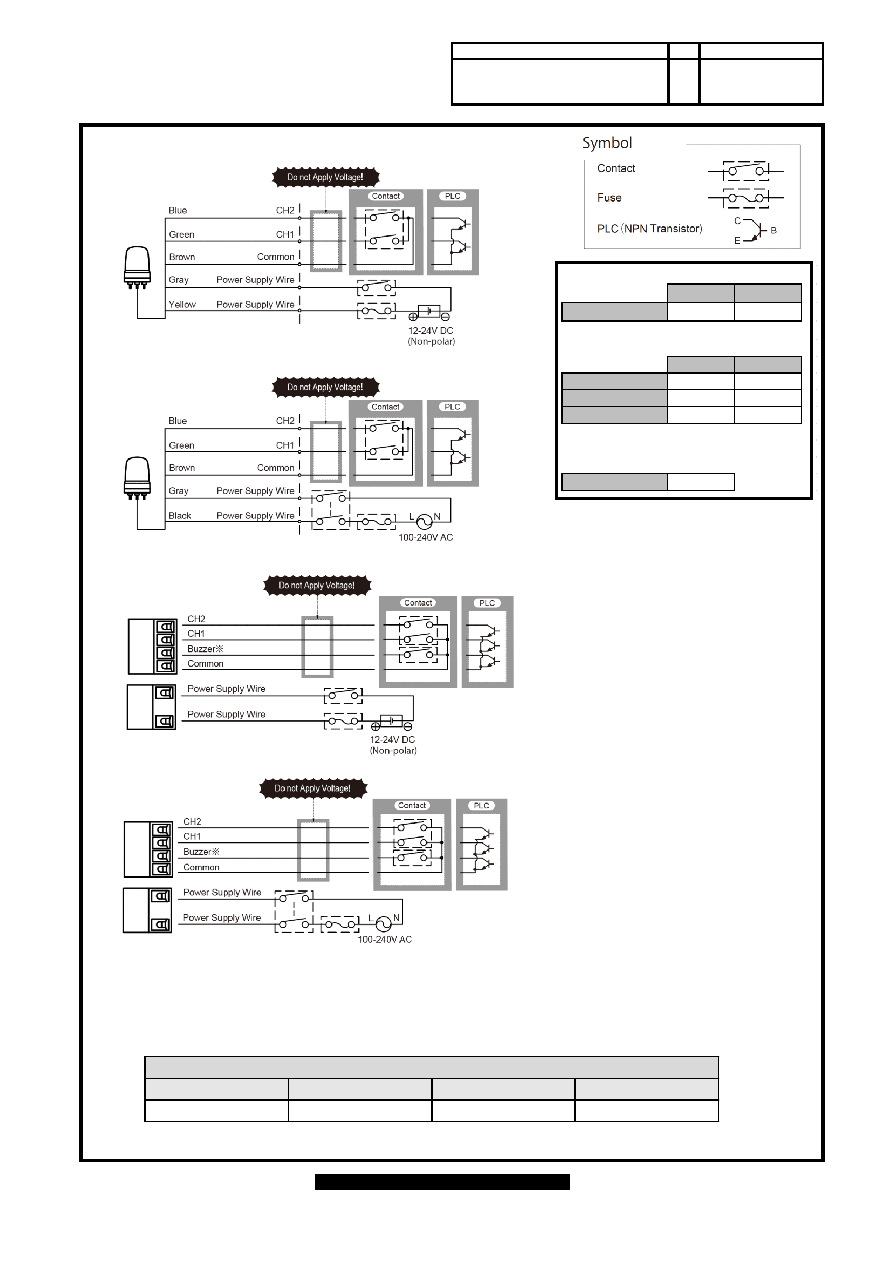

[5.Wiring Example]
Drawing No.
Rev.
Page
SL10-M1JN-
W18
G
【
External contact capacity of power supply line】
M1
M2
Current Capacity (Is)
3A or more
1A or more
【
External contact capacity of signal line and buzzer line】 ※1
M1
M2
Current Capacity (Is)
10mA or more 10mA or more
Withstand Voltage (Vs)
20V or more
20V or more
Leakage Current (IL)
0.1mA or less
0.1mA or less
【
Fuse】
Fuse Rating
250V 1A
※
1 When using NPN transistor open collector.
CH1 OFF/CH2 OFF
CH1 ON/CH2 OFF
CH1 OFF/CH2 ON
CH1 ON/CH2 ON
Off
Continuous
Blinking
Triple-flash
Wiring【CH1/CH2】
5/5



Html Pages

1 2 3 4 5


데이터시트 다운로드

Go To PDF Page


링크 URL
