KW-EELP41-RU 데이터시트(PDF) 13 Page - ams-OSRAM AG

13 / 23 page

KW EELP41.RU

DATASHEET

13 | Version 1.2 | 2025-07-10

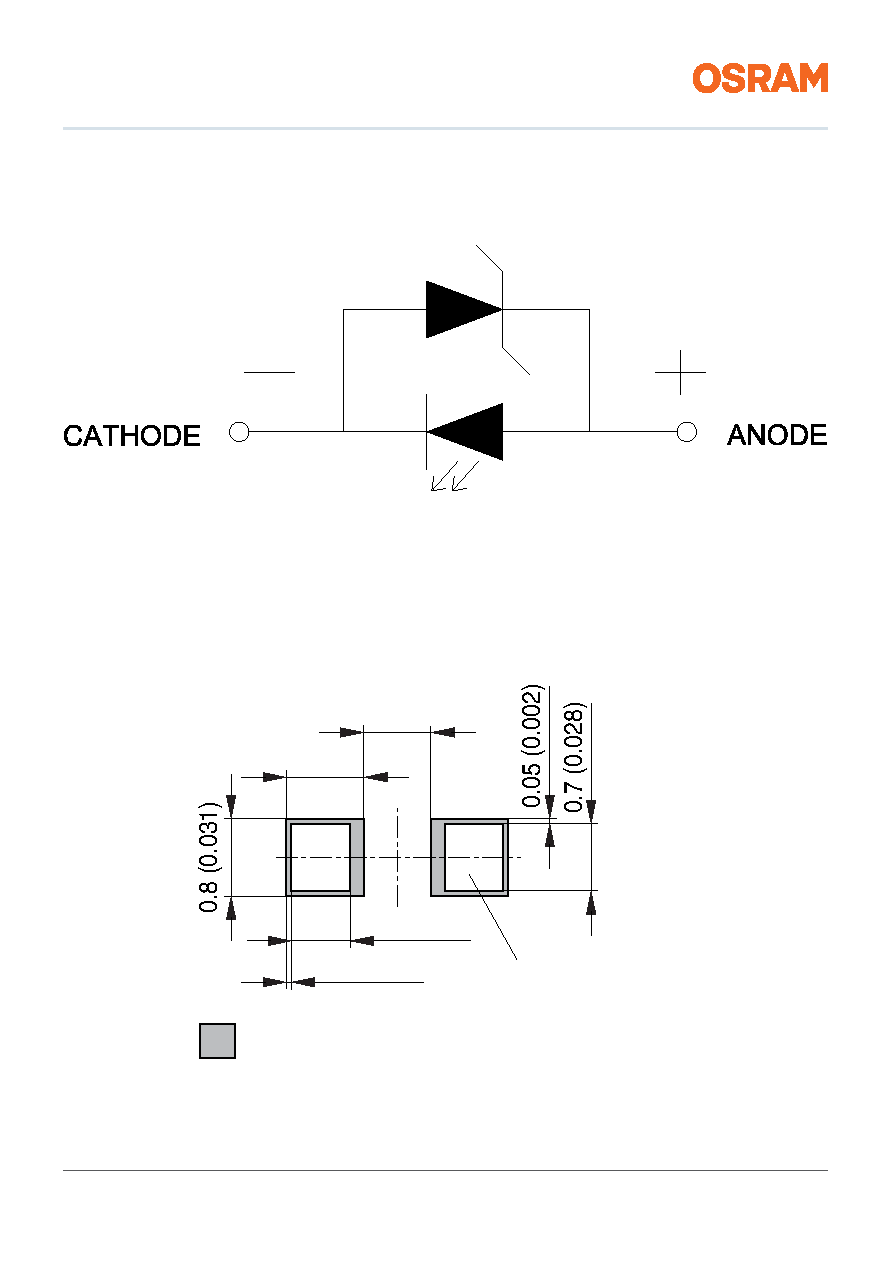

Electrical Internal Circuit

Recommended Solder Pad 8)

OHPY3832

0.8 (0.031)

0.7 (0.028)

0.05 (0.002)

0.6 (0.024)

Solder stencil aperture

Copper solder pad

For superior solder joint connectivity results we recommend soldering under standard nitrogen atmosphere. Package not

suitable for ultra sonic cleaning.
