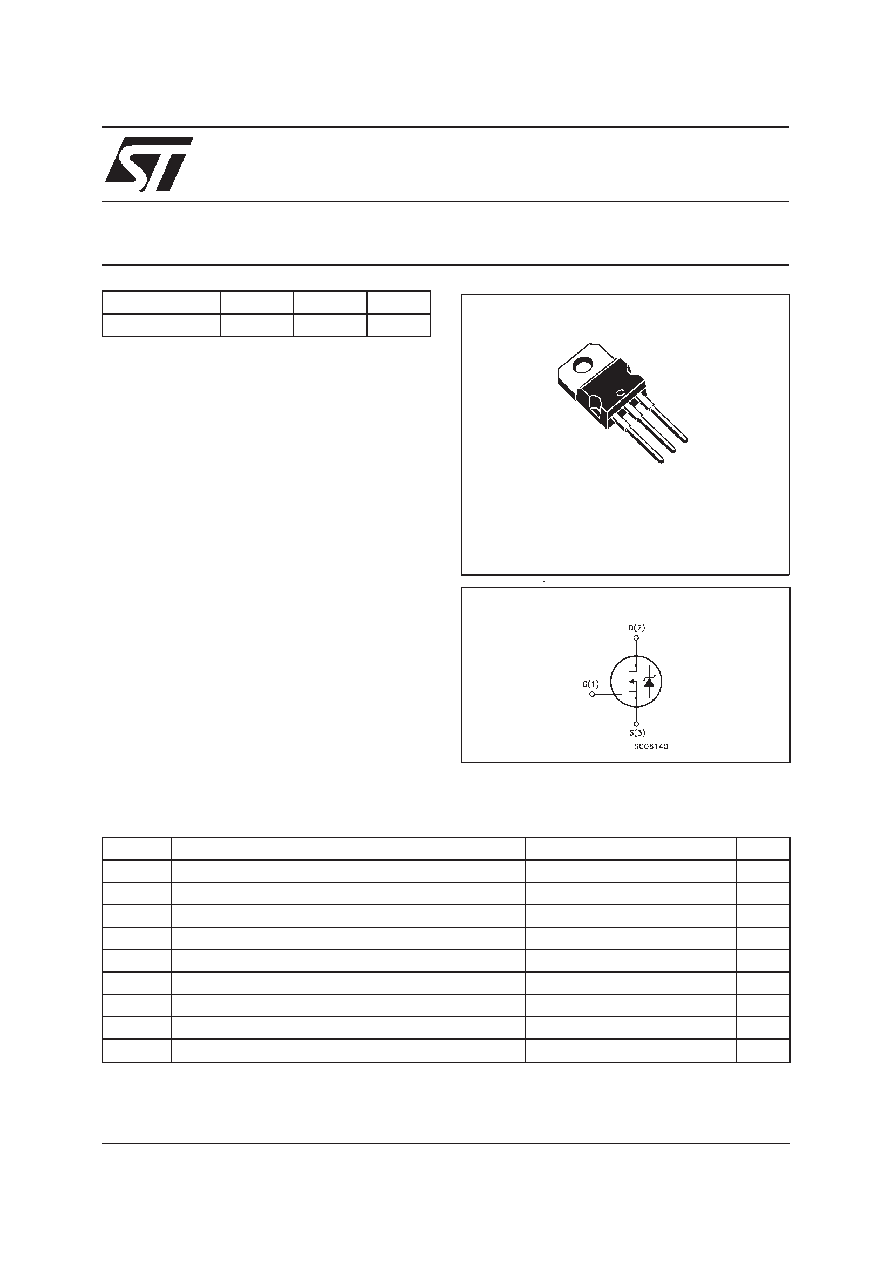

MTP3055E

N - CHANNEL 60V - 0.1

Ω - 12A TO-220

STripFET

™ MOSFET

s

TYPICAL RDS(on) = 0.1

Ω

s

AVALANCHE RUGGED TECHNOLOGY

s

100% AVALANCHE TESTED

s

175

oC OPERATING TEMPERATURE

s

APPLICATION ORIENTED

CHARACTERIZATION

APPLICATIONS

s

HIGH CURRENT, HIGH SPEED SWITCHING

s

SOLENOID AND RELAY DRIVERS

s

REGULATORS

s

DC-DC & DC-AC CONVERTERS

s

MOTOR CONTROL, AUDIO AMPLIFIERS

s

AUTOMOTIVE ENVIRONMENT (INJECTION,

ABS, AIR-BAG, LAMPDRIVERS, Etc.)

®

INTERNAL SCHEMATIC DIAGRAM

July 1999

1

2

3

TO-220

ABSOLUTE MAXIMUM RATINGS

Symbol

Parameter

Value

Un it

VDS

Drain-source Voltage (VGS =0)

60

V

VDGR

Drain- gate Voltage (RGS =20 k

Ω)60

V

VGS

G ate-source Volt age

± 20

V

ID

Drain Current (continuous) at Tc =25

oC12

A

IDM

Drain Current (pulsed) at Tc = 100

oC9

A

IDM (

•)

Drain Current (pulsed)

48

A

Ptot

T otal Dissipat ion at Tc =25

oC40

W

Tstg

Storage Temperature

-65 to 175

o C

Tj

Max. Operating Junction Temperature

175

o C

(

•) Pulse width limited by safe operating area

First digit of the datecode being Z or K identifies silicon characterized in this datasheet.

T YPE

VDSS

RDS(on)

ID

MTP3055E

60 V

< 0.15

Ω

12 A

1/8
