Installation Method

A Temperature Sensor for Packing Machines has a diameter of 1.0 mm.

To measure the temperature close to the seal surface, mount the Sensor as close as possible to the surface.

The following installation methods are assumed.

Use the following brackets or the equivalent to mount a Temperature Sensor for Packaging Machines to a hot plate.

Note: All of the above mounting brackets are SUS304.

Mounting

bracket

Application

Manufacturer

Model number

(1)

1-mm-dia. protective tube bracket

Misumi Corporation

Square Shims

ASFCS-series

(2)

Sleeve bracket (S1)

Misumi Corporation

Cable Clips

COPU3-20P

Digi-Key

Cable Clamp

RPC1156-ND

Sleeve bracket (S2)

Misumi Corporation

Cable Clips

COPU4-20P

Digi-Key

Cable Clamp

RPC1474-ND

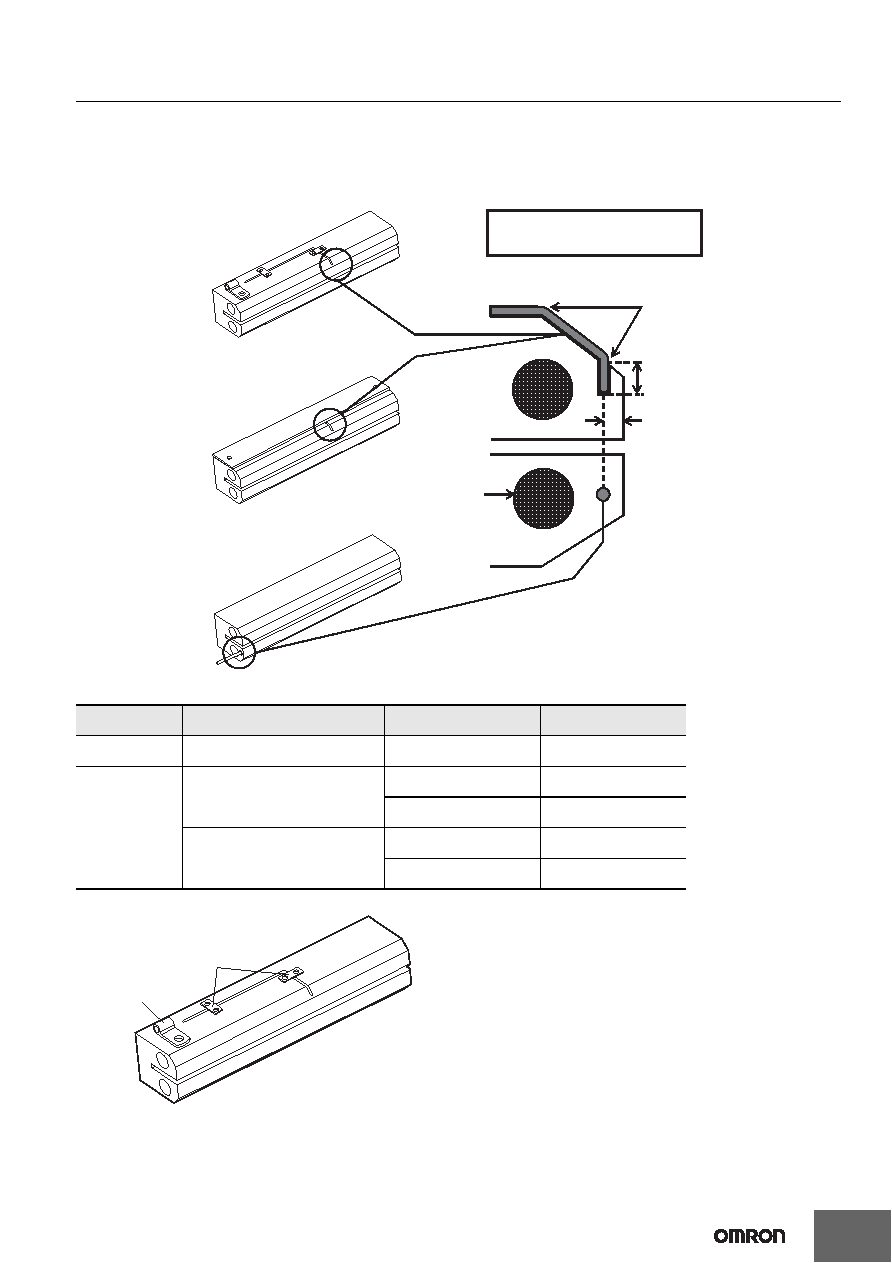

To correctly measure the surface

temperature, the following installation

conditions are recommended.

Enlargement

Bend to a radius

of 2 mm or larger.

Insert the end by

8 mm or longer.

Approx. 1 to 3.5

Heater

Example 2: Groove for Temperature Sensor

created in heating plate and

Temperature Sensor secured

with a cover.

Example 3: Lateral hole for the Temperature Sensor created in

the heating plate and the Temperature Sensor

inserted into it.

Example 1: Groove for Temperature Sensor created in heating plate and

Temperature Sensor secured with mounting brackets.

There is a temperature

sensing element at the

tip of the Sensor. Always

press the tip against the

heating plate.

Always insert the Temperature Sensor all the way to the surface of the packing material.

(2)

(1)
