E3ZM-V

11

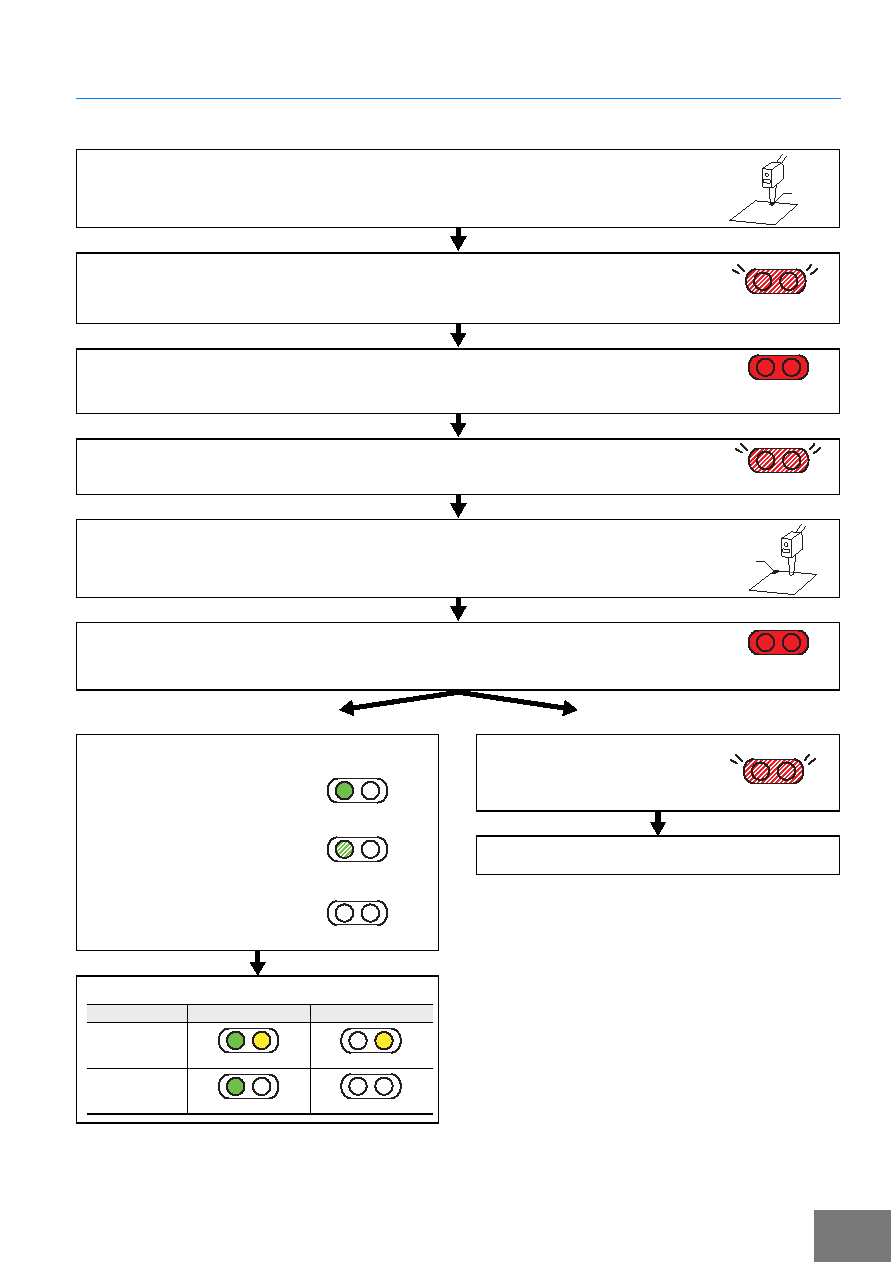

Operating Procedure

Two-point Teaching Using Teaching Button

1. Place the point for which you want the output to go ON in the beam spot position.

Then, press and hold the teaching button for at least 2 seconds.

The teaching indicator (red) will begin flashing quickly. (This indicates that the output ON teaching

operation should begin.)

Perform the following operation within 7 seconds of when you start pushing the button. (After 7 seconds,

the Unit will return to its initial condition.)

2. Press the teaching button for approximately 0.5 second.

The teaching indicator (red) will light for approximately 0.5 second to show that the output ON

teaching is completed.

The teaching indicator (red) will then begin flashing quickly again to show that the output OFF teaching

operation should begin.

3. Place the point where you want the output to go OFF in the beam spot position.

4. Press the teaching button for approximately 0.5 second.

The teaching indicator (red) will light for approximately 0.5 second to show that the output OFF

teaching is completed.

When Teaching Is Successful

When Teaching Is Not Successful

The stability indicator (green) shows that detection is stable.

The teaching indicator (red) flashes

slowly.

(Flashes in cycles of approx.

6 seconds.)

1.Lights

→ This indicates stable detection,

even if there is some fluttering

in the sensing object.

2.Flashes

→ This indicates the possibility of

unstable detection, due to

fluttering in the sensing object.

3.Remains OFF

→ This indicates unstable

detection.

Repeat the operation starting with step 1.

The Sensor enters normal operating condition.

Sensor

Background

Mark

Flashes quickly

Lit for approximately

0.5 second

Flashes quickly

Sensor

Background

Mark

Lit for approximately

0.5 second

Flashes slowly

Flashes

Off

Lit

Stable detection

Unstable detection

ON point

OFF point

Lit

Lit

Off

Lit

Lit

Off

Off

Off
