E5CC/E5CC-U

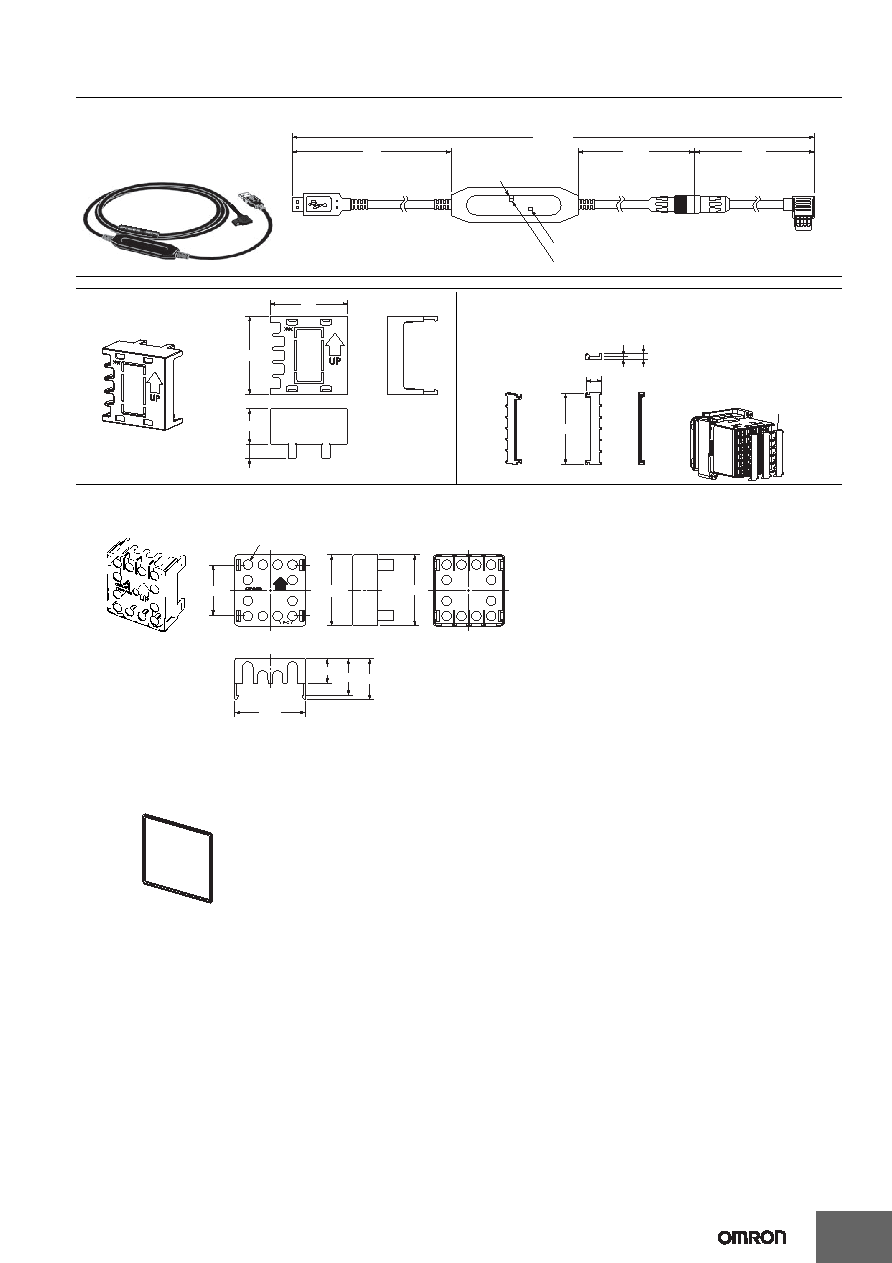

Accessories (Order Separately)

(2110)

USB connector

(type A plug)

Serial connector

LED (SD)

LED (PWR)

LED (RD)

250

1510

263

● USB-Serial Conversion Cable

E58-CIFQ2

48.8

9.1

44.8

3.8

Terminal Cover

(E53-COV23)

● Terminal Covers

E53-COV17

● Terminal Covers

E53-COV23 (Three Covers provided.)

Y92A-48G

P C

Twelve, 6.4-dia.

47.7

×47.7

×48

27.6

24.6

16.5

47.4

● Terminal Cover (for the P3GA-11 Back-connecting Socket)

Y92A-48G

Note: You can attach the P3GA-11 Back-connecting Socket for finger protection.

● Waterproof Packing

Y92S-P8 (for DIN 48

× 48)

The Waterproof Packing is provided only with the E5CC.

Order the Waterproof Packing separately if it becomes lost or damaged.

The Waterproof Packing can be used to achieve an IP66 degree of protection.

(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the

operating environment. Therefore, periodic replacement is recommended to ensure the level of

waterproofing specified in IP66. The time for periodic replacement depends on the operating

environment. Be sure to confirm this point at your site.

Consider three years as a rough standard.)

The Waterproof Packing does not need to be attached if a waterproof structure is not required.

The E5CC-U cannot be waterproofed even if the Waterproof Packing is attached.
