E5CC/E5CC-U

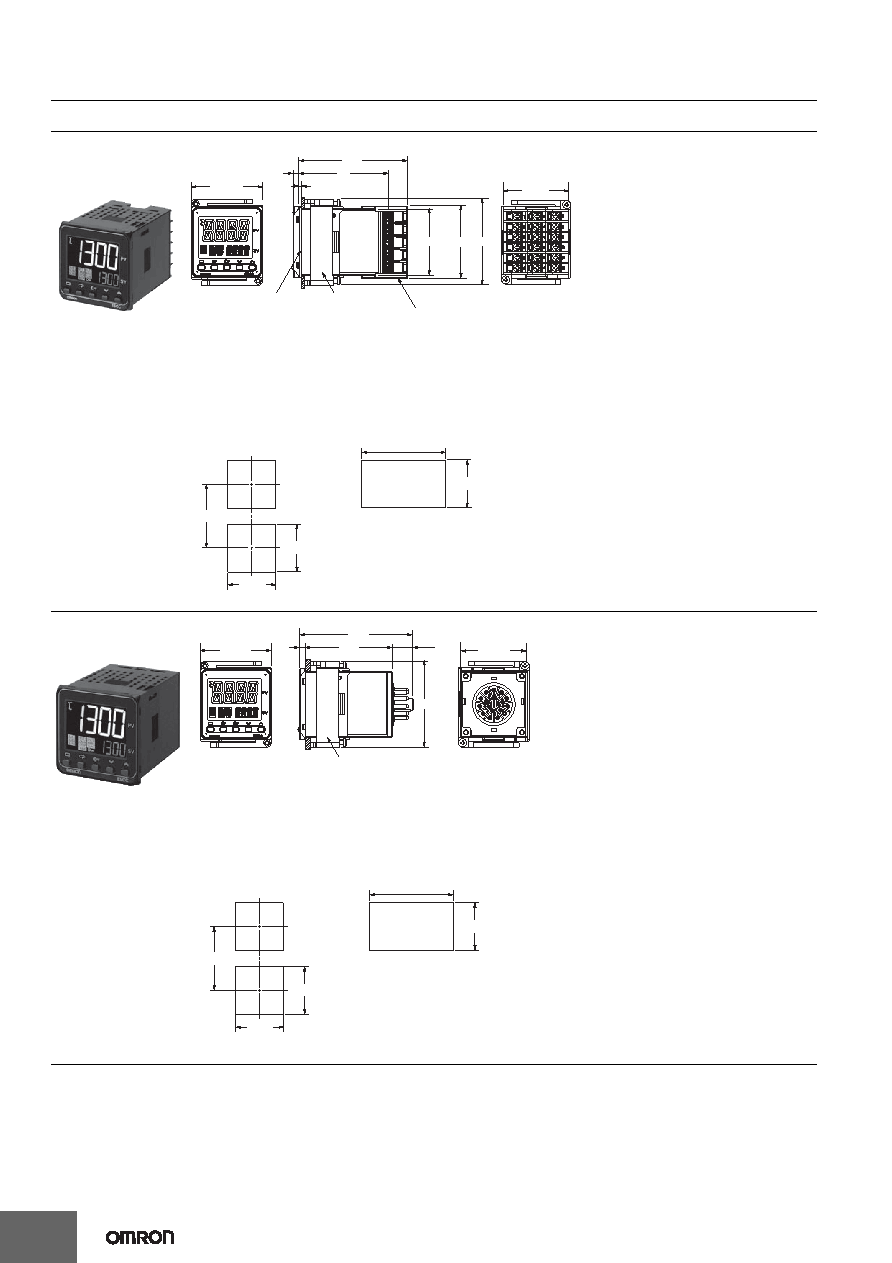

Dimensions

(Unit: mm)

Controllers

45+0.6

60 min.

(48 × number of units - 2.5)+1.0

Panel Cutout

Mounted Separately

Group Mounted

48 × 48

Mounting Adapter

(Accessory)

Terminal Cover

(E53-COV17)

(Sold separately)

Waterproof Packing

(Accessory)

44.8 × 44.8

73.1

48.8

48 × 48

E5CC

• Recommended panel thickness is 1 to 5 mm.

• Group mounting is not possible in the vertical direction. (Maintain

the specified mounting space between Controllers.)

• To mount the Controller so that it is waterproof, insert the

waterproof packing onto the Controller.

• When two or more Controllers are mounted, make sure that the

surrounding temperature does not exceed the allowable operating

temperature specified in the specifications.

• Use a control panel thickness of 1 to 3 mm if the Y92A-48N and a

USB-Serial Conversion Cable are used together.

The Setup Tool port is on the top of the Temperature Controller.

It is used to connect the Temperature Controller to the computer to use the Setup Tool.

The E58-CIFQ2 USB-Serial Conversion Cable is required to make the connection.

Refer to the instructions that are provided with the USB-Serial Conversion Cable for the connection procedure.

Note: Do not leave the USB-Serial Conversion Cable connected when you use the Temperature Controller.

76.8

58.6

14.2

48 × 48

Mounting Adapter

(Accessory)

45+0.6

60 min.

(48 × number of units - 2.5)+1.0

Panel Cutout

Mounted Separately

Group Mounted

E5CC-U

• Recommended panel thickness is 1 to 5 mm.

• Group mounting is not possible in the vertical direction. (Maintain

the specified mounting space between Controllers.)

• When two or more Controllers are mounted, make sure that the

surrounding temperature does not exceed the allowable operating

temperature specified in the specifications.

• Use a control panel thickness of 1 to 3 mm if the Y92A-48N and a

USB-Serial Conversion Cable are used together.

The Setup Tool port is on the top of the Temperature Controller.

It is used to connect the Temperature Controller to the computer to use the Setup Tool.

The E58-CIFQ2 USB-Serial Conversion Cable is required to make the connection.

Refer to the instructions that are provided with the USB-Serial Conversion Cable for the connection procedure.

Note: Do not leave the USB-Serial Conversion Cable connected when you use the Temperature Controller.
