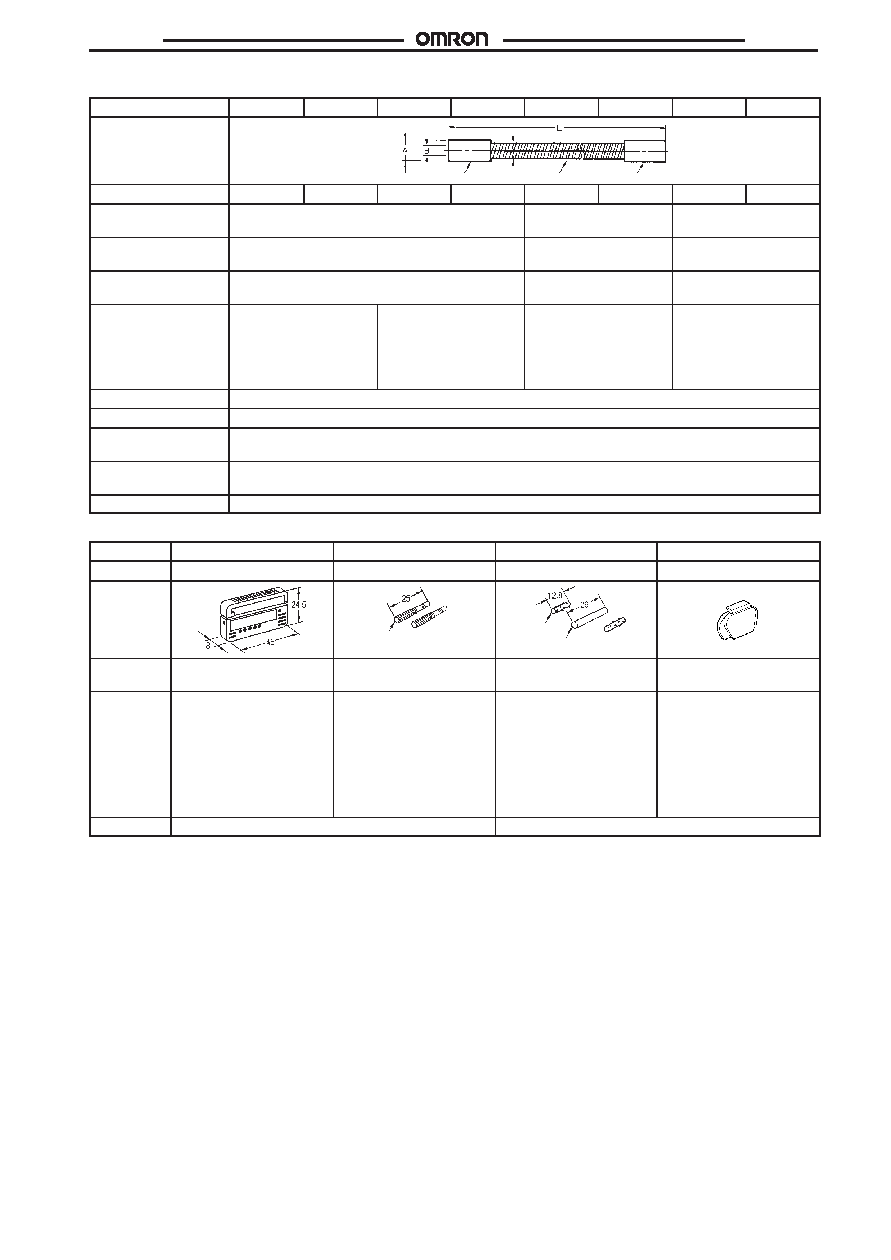

 9 / 38 page
background image
E3X-NH
E3X-NH
9
Spiral Tubes
Model
E39-F32A5
E39-F32A
E39-F32B5
E39-F32B
E39-F32C5
E39-F32C
E39-F32D5
E39-F32D
Appearance
End cap
Tube
Head connector C
Length (L)
500 mm
1,000 mm
500 mm
1,000 mm
500 mm
1,000 mm
500 mm
1,000 mm
Head outer diameter
(A)
6 dia.
7 dia.
8.5 dia.
Head inner diameter
(B)
M3 x 0.5, depth: 4
M4 x 0.7, depth: 4
M6 x 0.75, depth: 4
Tube outer diameter
(C)
4.6 dia.
5.6 dia.
7 dia.
Applicable fiber
E32-DC200E
E32-DC200F(4)
E32-D21
E32-TC200E
E32-TC200F(4)
E32-T21
E32-T21L
E32-TC200
E32-TC200B(4)
E32-T11
E32-T51
E32-T11L
E32-DC200
E32-DC200B(4)
E32-CC200
E32-D11
E32-D51
E32-D11L
Ambient temperature
Operating: –40
°C to 150°C (Do not exceed the operating temperature of the fiber)
Ambient humidity
Operating: 35% to 85%
Permissible bending
radius
30 mm min.
Tensile strength
Between head connector and end cap with tube: 1.5 N
S m (15 kgf S cm )
Tube: 2 N
S m (20 kgf S cm)
Compression load
Tube: 29.4 N (3 kgf)
Accessories
Name
Fiber Cutter
Fine-fiber Attachment
Fiber Connector
Sleeve Bender
Model
E39-F4
E39-F9
E39-F10
E39-F11
Appearance
3.6 dia.
3 dia.
3.8 dia.
Features
Used to cut fibers to desired
lengths
Used when inserting fine
fibers into the amp
Used to connect additional
fibers for extension
Used to bend fiber sleeves
Applicable
fiber
All models equipped with
fibers that can be trimmed.
E32-DC200E, -TC200E
E32-DC200F(4),
-TC200F(4)
E32-D21, -D21L, -D22L
E32-T21, -T21L, -T22L
E32-D32, -T22
E32-D24. -T24
E32-D33
E32-R21, E32-D21R
E32-DC200, -TC200
E32-DC200B(4),
-TC200B(4)
E32-TC200A
E32-T14, -G14
E32-D11L, -T11L, -T12L
E32-D14L, -T14L
E32-T17L
E32-TC200B(4)
E32-DC200F(4),
-TC200F(4)
E32-DC9G(4)
Provided with Fiber Units
Sold Separately
