E5GC

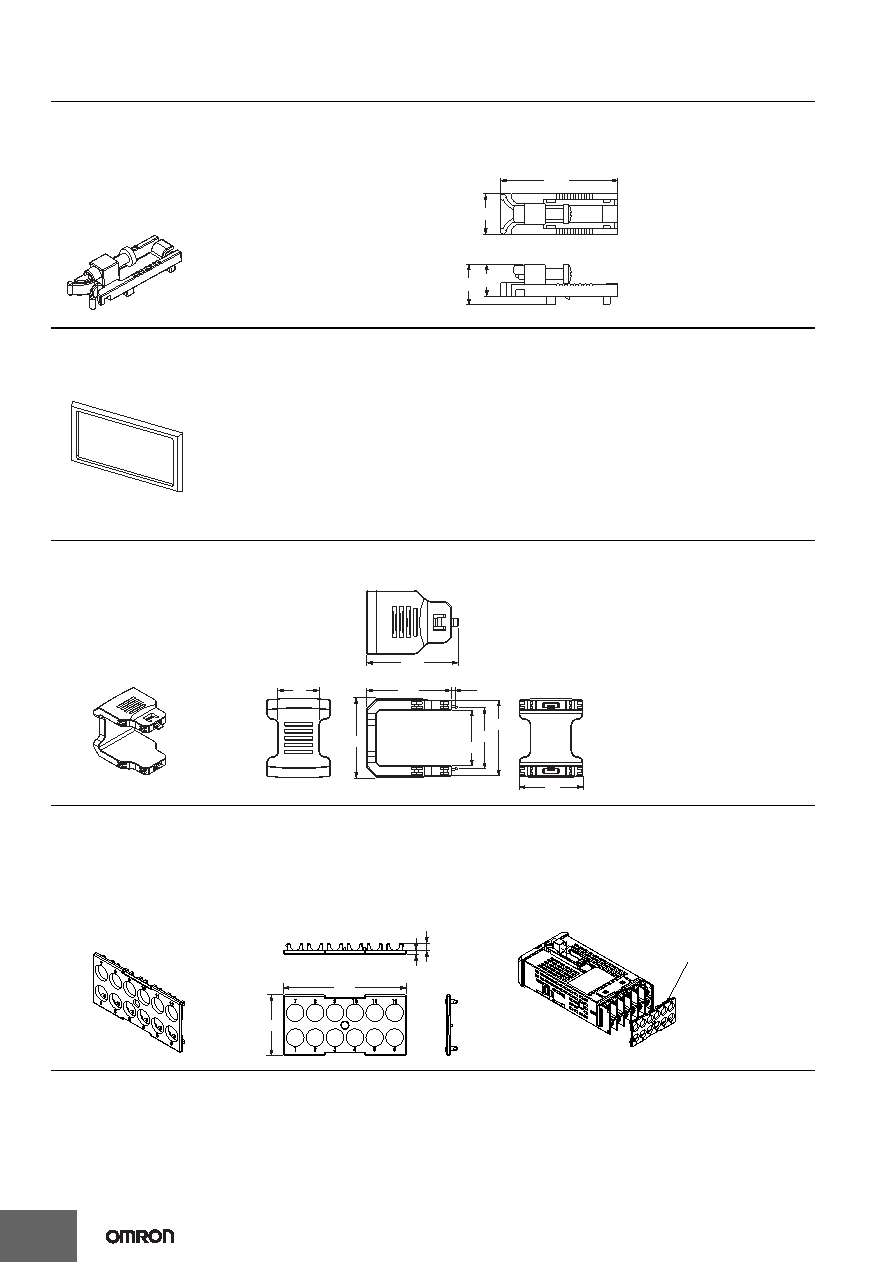

Mounting Adapter

Y92F-53 (Two provided.)

Waterproof Packing

Y92S-P12

Draw-out Jig

Y92F-55

Terminal Covers

E53-COV27

34.7

11.8 9.4

One pair is provided with the Temperature

Controller. Order the Mounting Adapter

separately if it becomes lost or damaged.

The Waterproof Packing is provided with the Temperature Controller.

Order the Waterproof Packing separately if it becomes lost or damaged.

The Waterproof Packing can be used to achieve an IP66 degree of protection.

(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating

environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing

specified in IP66. The time for periodic replacement depends on the operating environment.

Be sure to confirm this point at your site. Consider three years a rough standard.)

28.7

30.5

32.9

1.4

27.4

Use this Draw-out Jig to remove the interior

body of the Digital Temperature Controller

from the case to perform maintenance

without removing the terminal wiring.

44.7

21.9

2.5

1.45

(E53-COV27)

Terminal Covers

The Terminal Covers is provided with the

Digital Temperature Controller. Order the

Terminal Covers separately if it becomes

lost or damaged.
