1 / 13 page

February 2008

Rev 2

1/13

13

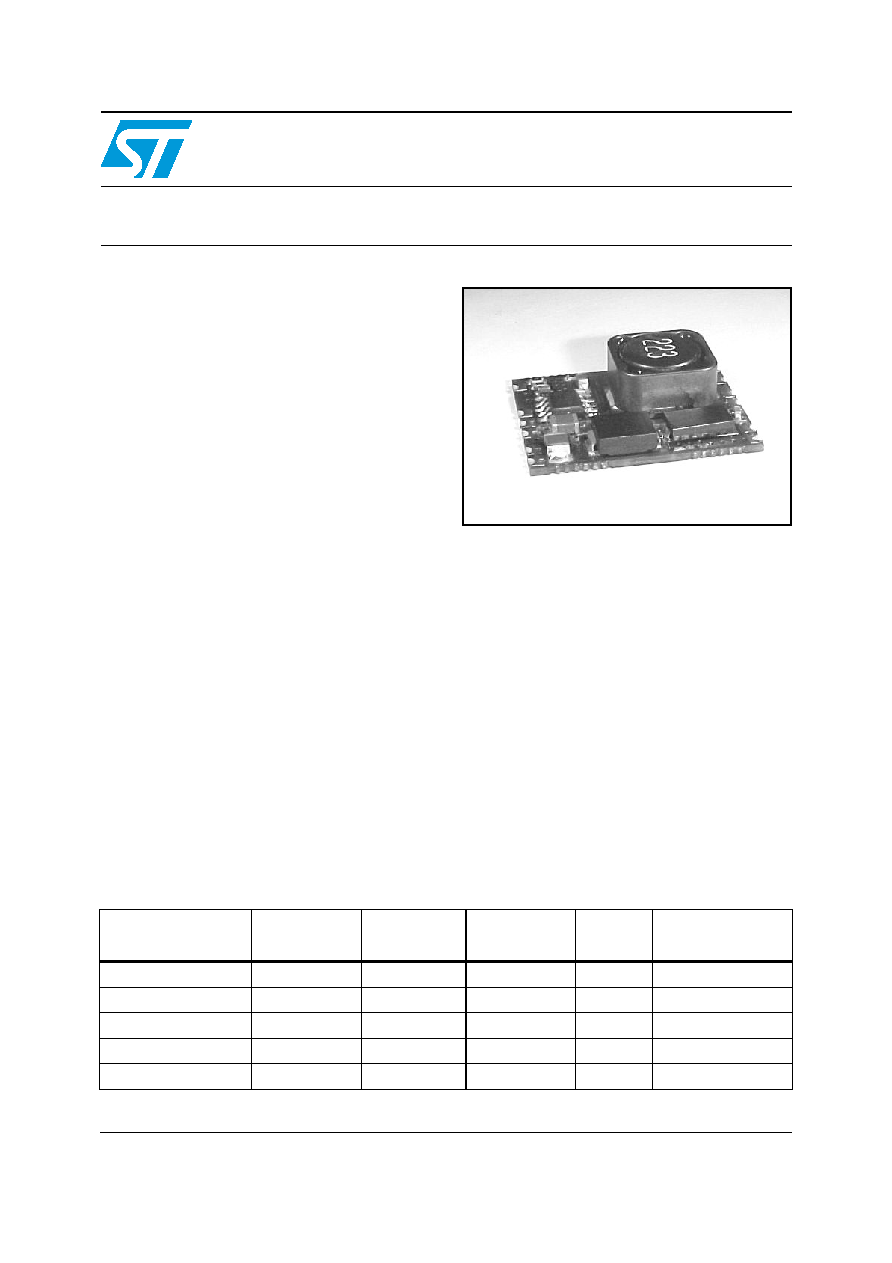

GS-R12F

2 A DC-DC converter modules

Features

■ MTBF 1 000 000 hours (TA = 25 °C)

■ 2 A max output current

■ 16 V max input voltage

■ 1.5 V max drop-out voltage

■ Remote logic inhibit/enable

■ Synchronization

■ Not-latching overload and short circuit

protection

■ Thermal shutdown

■ Fixed or adjustable output

■ No heatsink required

■ Operating temperature range -25 °C ÷ 85 °C

Description

The GS-R12F series is a family of high efficiency

step down switching voltage regulator, designed

to replace linear regulators.

Based on ST L5973 device, these non isolated

regulators are suitable for various applications,

including telecom, industry, computer and

distributed power supply system having a wide

range input voltage.

www.st.com

Table 1.

Device summary

Order codes

Output voltage

[V]

Input voltage

[V]

Output ripple

[mVpp]

Efficiency

[%]

Notes

GS-R12F0182.0

1.8 ± 4 %

4.5 ÷ 15

20

72

Fixed output voltage

GS-R12F0252.0

2.5 ± 4 %

4.5 ÷ 15

20

76

Fixed output voltage

GS-R12F0332.0

3.3 ± 4 %

4.5 ÷ 15

20

82

Fixed output voltage

GS-R12F0502.0

5.0 ± 4 %

6.6 ÷ 15

20

85

Fixed output voltage

GS-R12F0002.0

1.235 ÷ 5.5

4.5 ÷ 15

20

68 ÷ 85

Progr. output voltage
