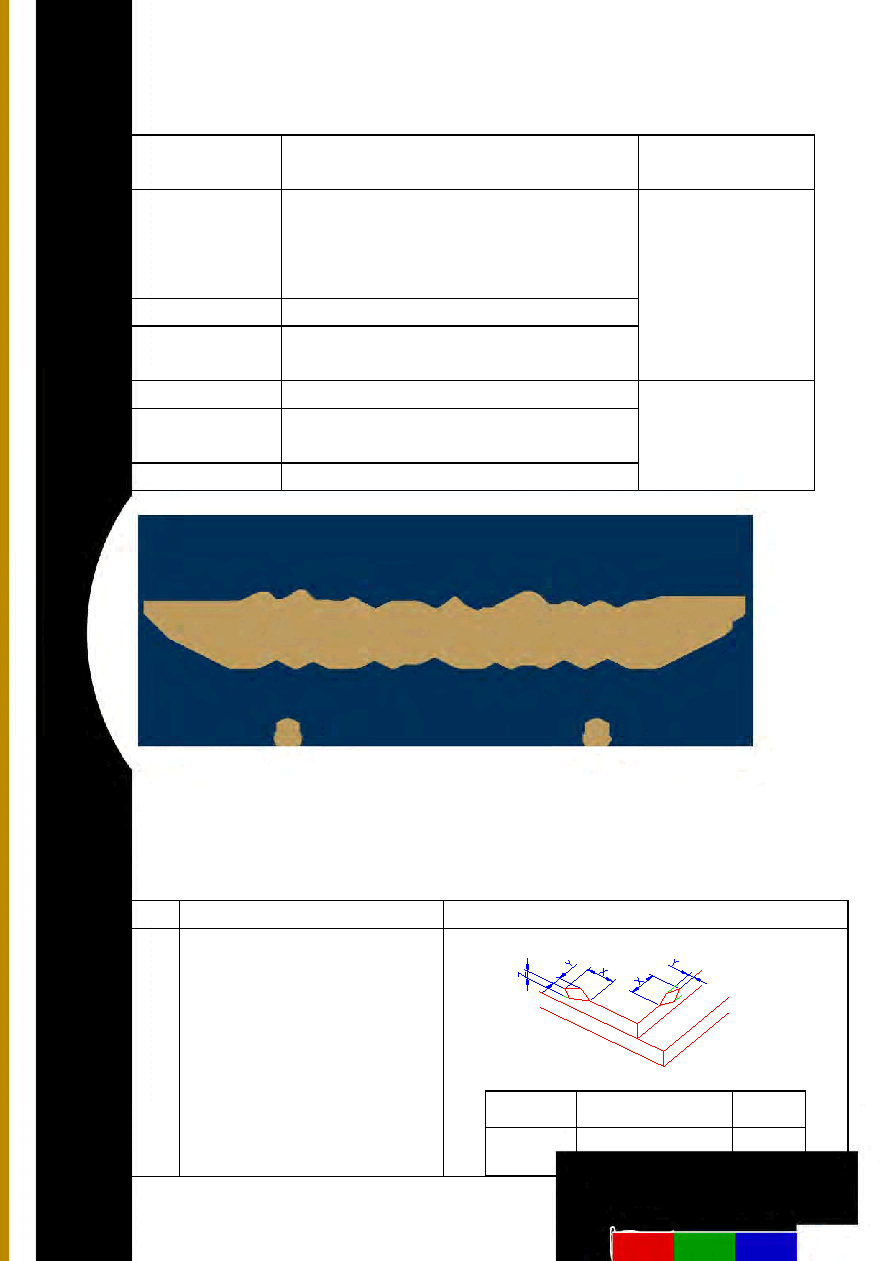

background image
LCD: Liquid Crystal Display , TP: Touch Panel , LCM: Liquid Crystal Module
No
Items to be
inspected
Criteria
Classification of
defects
1
Functional defects
1) No display, Open or miss line
2) Display abnormally, Short
3) Backlight no lighting, abnormal lighting.
4) TP no function
Major
2
Missing
Missing component
3
Outline dimension
Overall outline dimension beyond the drawing
is not allowed
4
Color tone
Color unevenness, refer to limited sample
Minor
5
Soldering
appearance
Good soldering , Peeling off is not allowed.
6
LCD/Polarizer/TP
Black/White spot/line, scratch, crack, etc.
7.1.4 Criteria (Visual)
Number
Items
Criteria(mm)
1.0
LCD
Crack/Broken
NOTE:
X: Length
Y: Width
(1) The edge of LCD broken
X
Y
Z
≤3.0mm
<Inner border line
of the seal
≤T
Page 21 of 27
