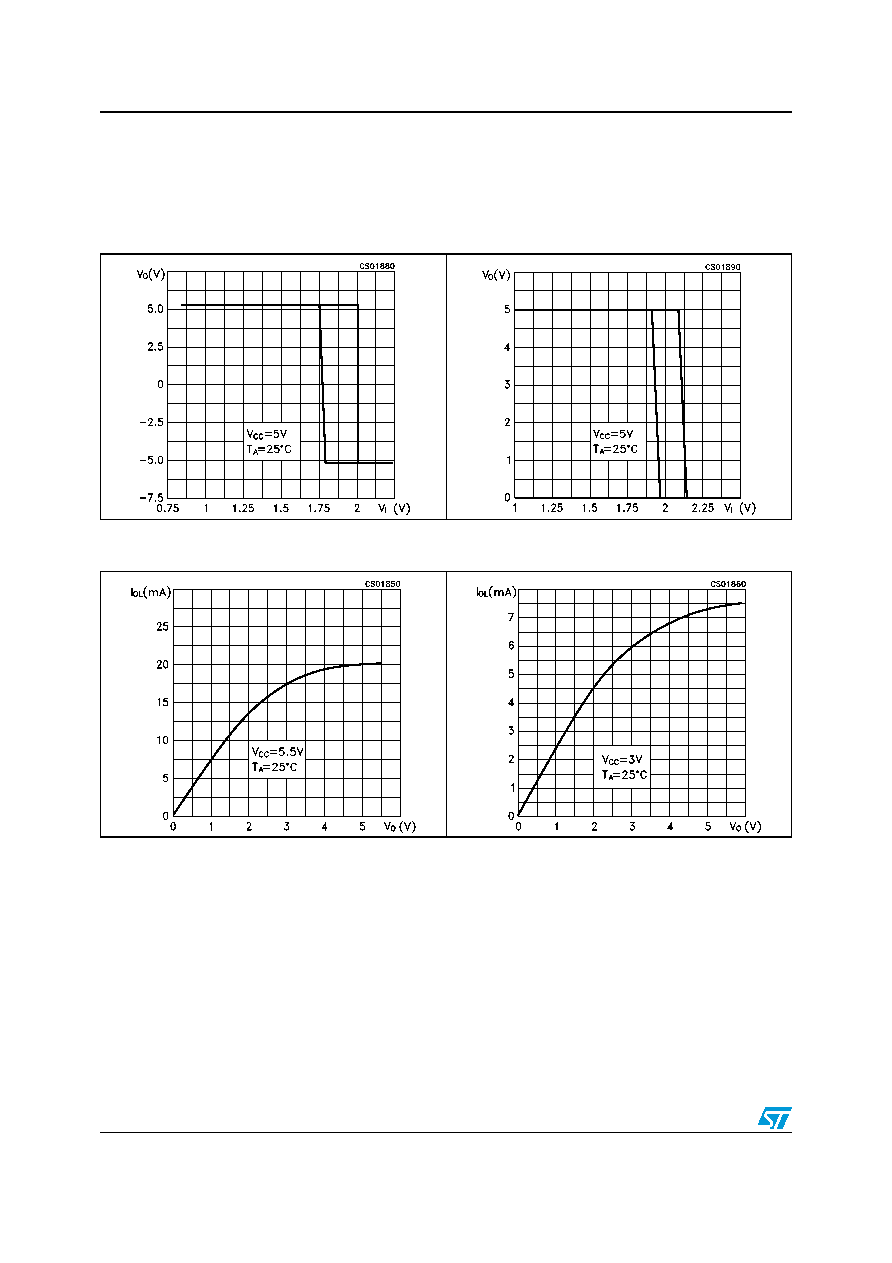

Typical performance characteristics
ST3232
8/19
5
Typical performance characteristics
(unless otherwise specified TJ = 25°C)
Figure 3.
Driver voltage transfer
characteristics for transmitter input
Figure 4.
Driver voltage transfer
characteristics for receiver inputs
Figure 5.
Output current vs output low
voltage
Figure 6.
Output current vs output low
voltage
