ST3243E
4/18

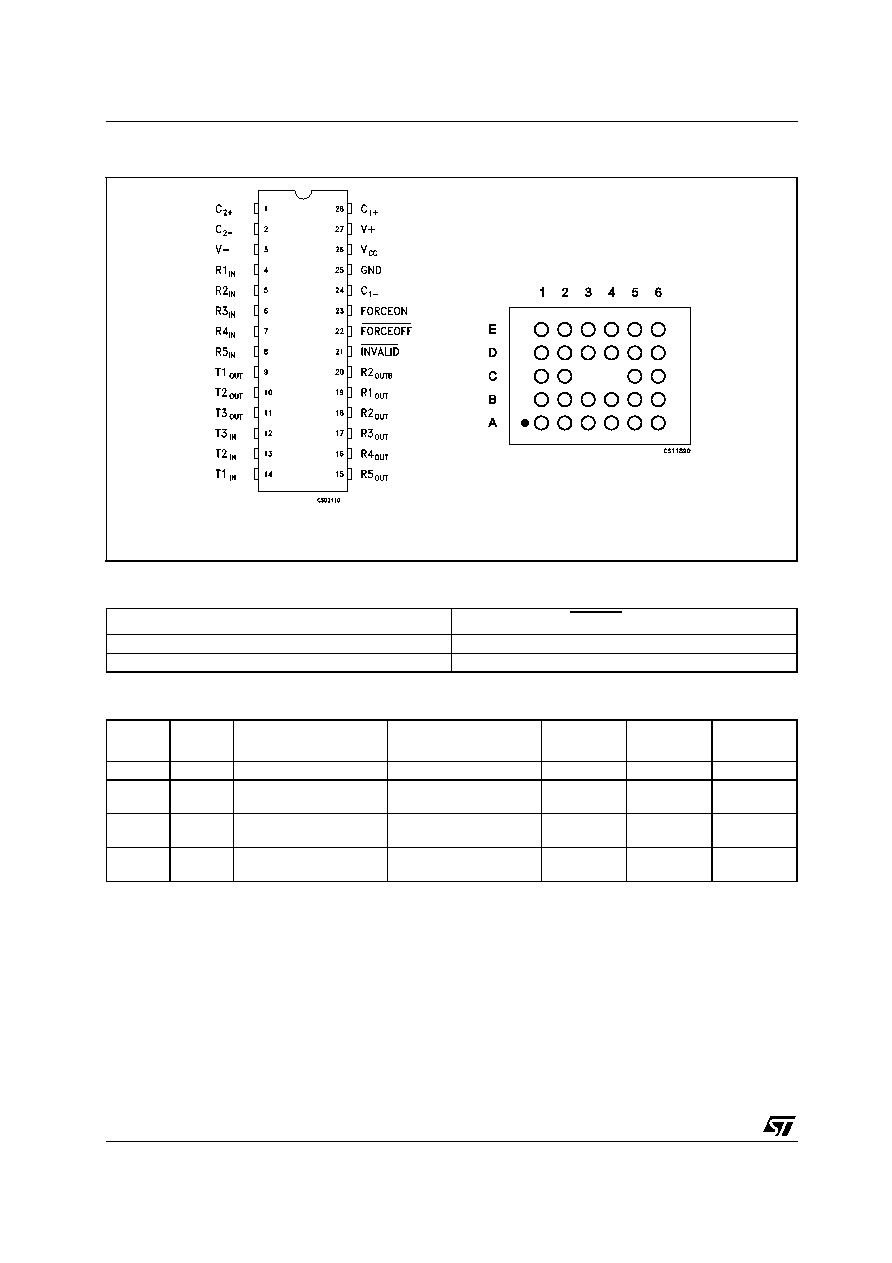

PIN CONFIGURATION
INVALID TRUTH TABLE
OUTPUT CONTROL TRUTH TABLE
RS-232 SIGNAL PRESENT AT ANY RECEIVER INPUT
INVALID OUTPUT
YES
H
NO
L
FORCE
ON
FORCE
OFF
VALID RECEIVER
LEVEL
OPERATION STATUS
TOUT
ROUT
R2OUTB
X
0
X
Shutdown (Force OFF)
HIGH Z
HIGH Z
ACTIVE
11
X
Normal Operating (Force
ON)
ACTIVE
ACTIVE
ACTIVE
01
YES
Normal Operating
(Auto-powerdown)
ACTIVE
ACTIVE
ACTIVE
01
NO
Shutdown
(Auto-powerdown)
HIGH Z
ACTIVE
ACTIVE
SOP, SSOP, TSSOP
(top view)
FLIP-CHIP 6x5
(bottom view, bumps side)
