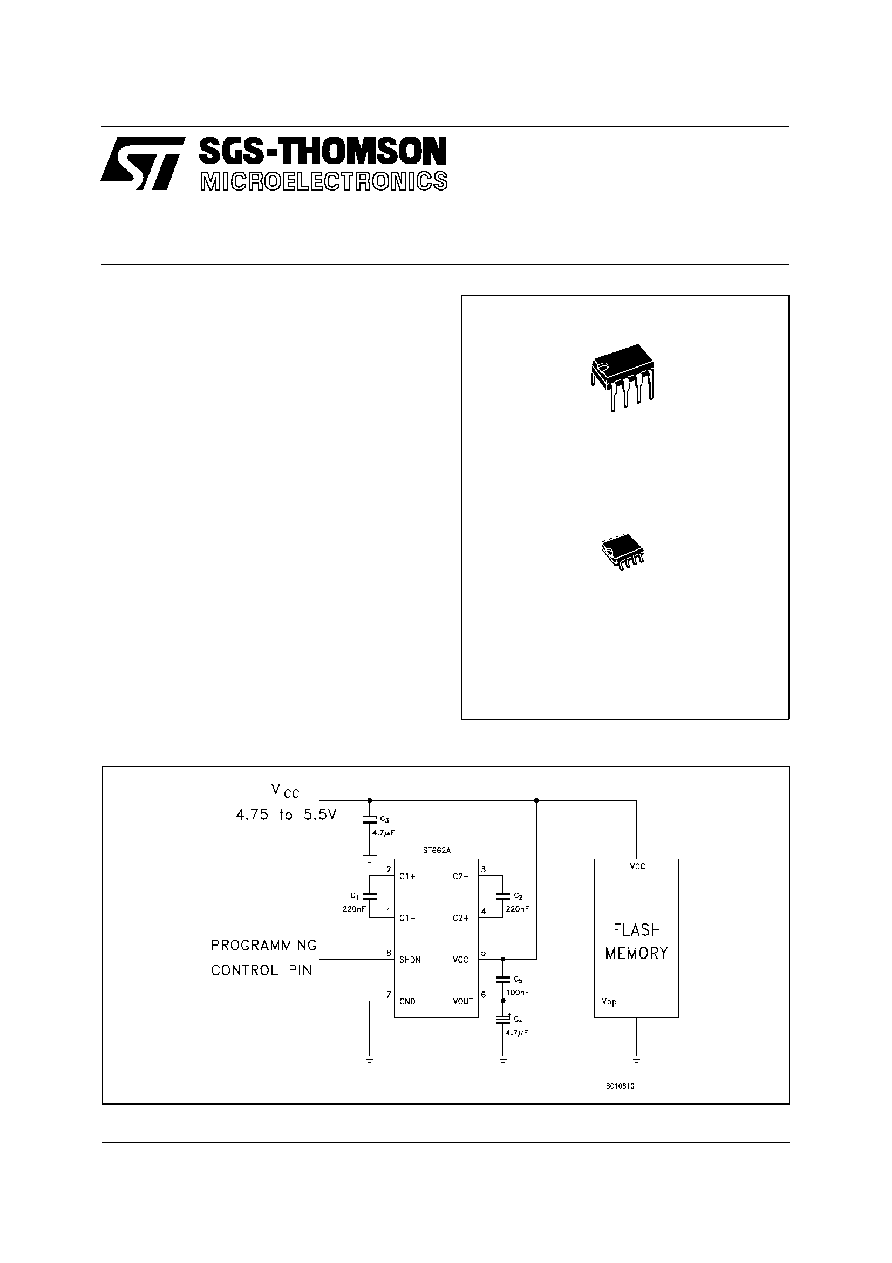

ST662A

DC-DC CONVERTER FROM 5V TO 12V, 0.03A

FOR FLASH MEMORY PROGRAMMING SUPPLY

June 1997

s

OUTPUT VOLTAGE: 12V

± 5%

s

SUPPLY VOLTAGE RANGE: 4.5V TO 5.5V

s

GUARANTEED OUTPUT CURRENT UP TO

30mA

s

VERY LOW QUIESCENT CURRENT: 100

µA

s

LOGIC CONTROLLED ELECTRONIC

SHUTDOWN: 1

µA

s

JUST CAPACITORS NEEDED (NO

INDUCTOR)

DESCRIPTION

The ST662A is a regulated charge pump DC-DC

converter. It provides 12V

± 5% output voltage to

program byte-wide flash memory, and can supply

30mA output current from input as low as 4.75V

A logic controlled shut down pin that interfaces

directly with microprocessor reduces the sypply

current to only 1

µA

TYPICAL APPLICATION CIRCUIT

DIP-8

SO-8

1/12
