ST75185CPR 데이터시트(PDF) 2 Page - STMicroelectronics

부품명 ST75185CPR
상세설명  MULTIPLE RS-232 DRIVERS AND RECEIVERS
PDF  18 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  STMICROELECTRONICS [STMicroelectronics]
홈페이지  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

ST75185CPR 데이터시트(HTML) 2 Page - STMicroelectronics

  ST75185CPR Datasheet HTML 1Page - STMicroelectronics ST75185CPR Datasheet HTML 2Page - STMicroelectronics ST75185CPR Datasheet HTML 3Page - STMicroelectronics ST75185CPR Datasheet HTML 4Page - STMicroelectronics ST75185CPR Datasheet HTML 5Page - STMicroelectronics ST75185CPR Datasheet HTML 6Page - STMicroelectronics ST75185CPR Datasheet HTML 7Page - STMicroelectronics ST75185CPR Datasheet HTML 8Page - STMicroelectronics ST75185CPR Datasheet HTML 9Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 2 / 18 page
background image
ST75185
2/18

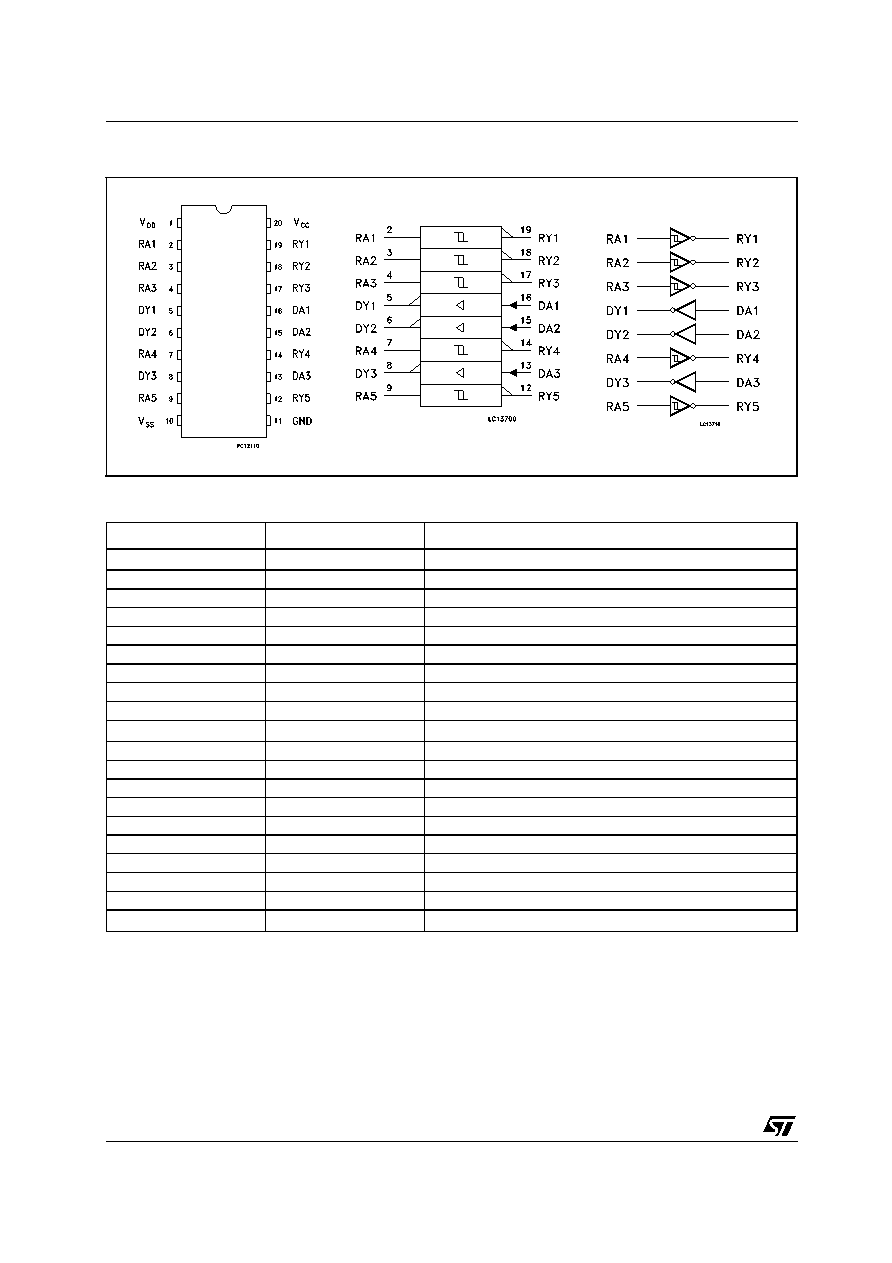

PIN CONNECTION IEC LOGIC SYMBOL AND LOGIC DIAGRAM
PIN DESCRIPTION
PlN N°
SYMBOL
NAME AND FUNCTION
1VDD
Supply Voltage (+12V)
2
RA1
First Receiver Input
3
RA2
Second Receiver Input
4
RA3
Third Receiver Input
5
DY1
First Driver Output
6
DY2
Second Driver Output
7
RA4
Fourth Receiver Input
8
DY3
Third Driver Output
9
RA5
Fifth Receiver Input
10
VSS
Supply Voltage (-12V)
11
GND
Ground
12
RY5
Fifth Receiver Ouput
13
DA3
Third Driver Intput
14
RY4
Fourth Receiver Ouput
15
DA2
Second Driver Input
16
DA1
First Driver Input
17
RY3
Third Receiver Ouput
18
RY2
Second Receiver Output
19
RY1
First Receiver Output
20
VCC
Supply Voltage (+5V)
