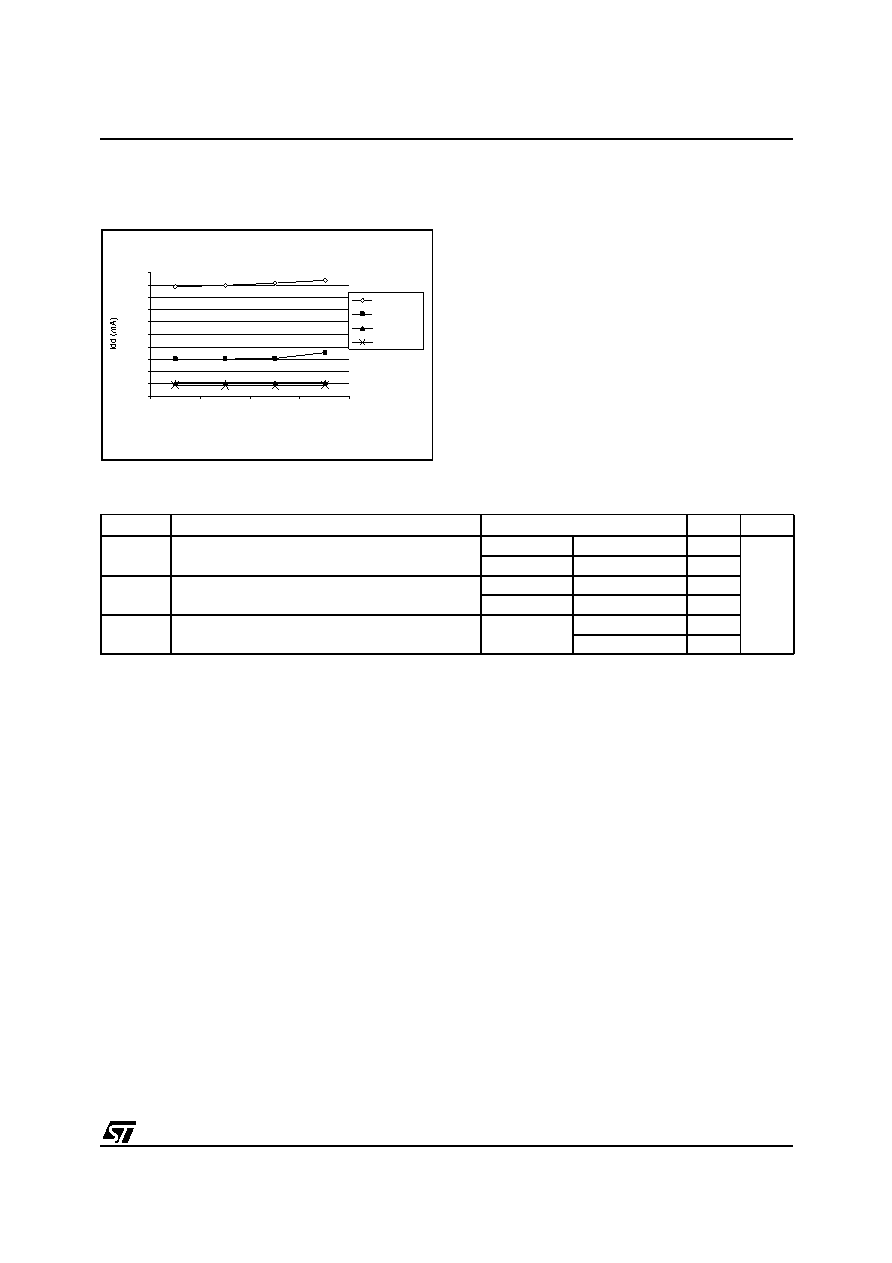

87 / 122 page  ST7LITE0, ST7SUPERLITE 87/122 SUPPLY CURRENT CHARACTERISTICS (Cont’d) Figure 59. Typical IDD vs. Temperature at VDD = 5V and fCPU = 8MHz 13.4.2 On-chip peripherals 1. Data based on a differential IDD measurement between reset configuration (timer stopped) and a timer running in PWM mode at fcpu=8MHz. 2. Data based on a differential IDD measurement between reset configuration and a permanent SPI master communica- tion (data sent equal to 55h). 3. Data based on a differential IDD measurement between reset configuration and continuous A/D conversions with am- plifier off. 0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 -45 25 90 130 Temperature (°C) RUN WAIT SLOW SLOW WAIT Symbol Parameter Conditions Typ Unit IDD(AT) 12-bit Auto-Reload Timer supply current 1) fCPU=4MHz VDD=3.0V 50 µA fCPU=8MHz VDD=5.0V 150 IDD(SPI) SPI supply current 2) fCPU=4MHz VDD=3.0V 50 fCPU=8MHz VDD=5.0V 300 IDD(ADC) ADC supply current when converting 3) fADC=4MHz VDD=3.0V 780 VDD=5.0V 1100 1 |
|
