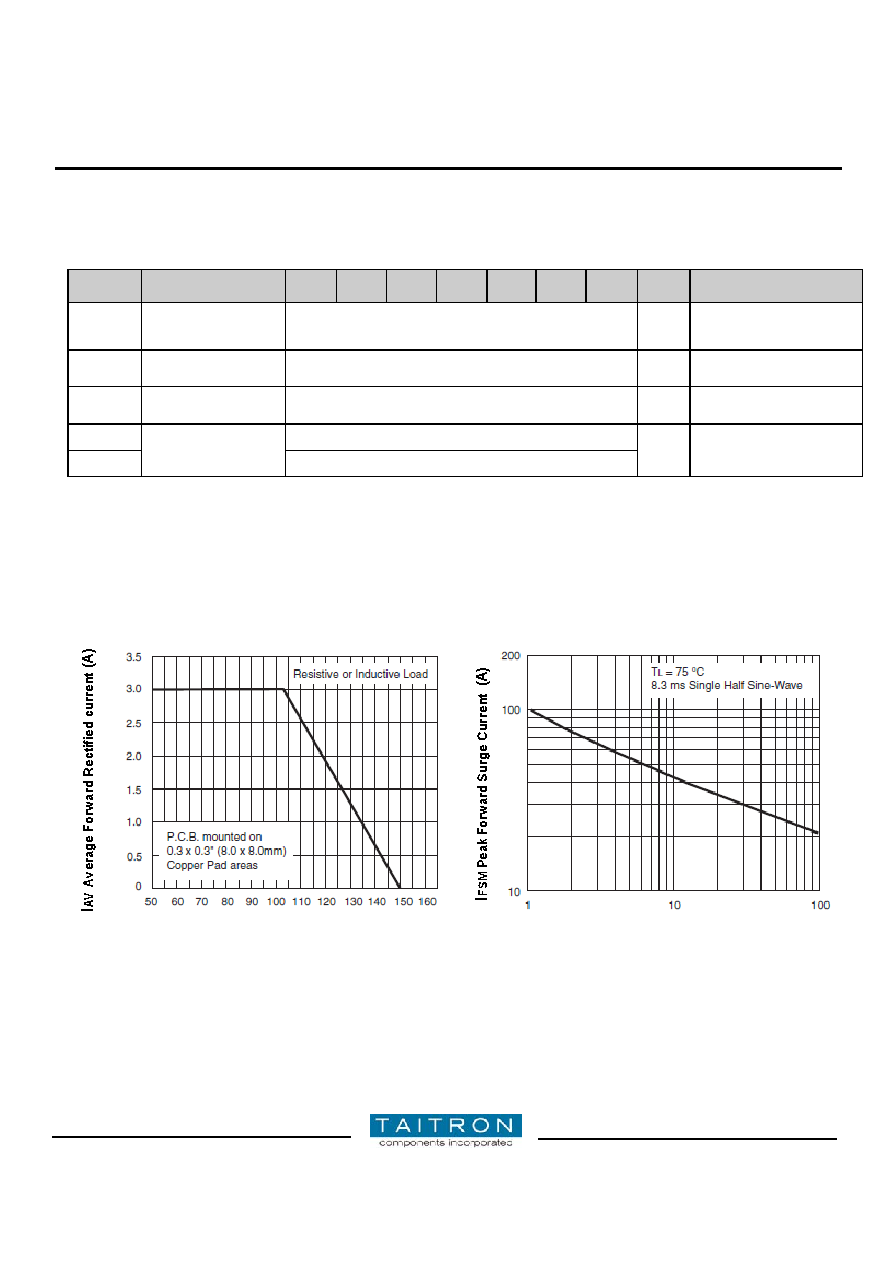

background image
3.0A Surface Mount Rectifier
Rev. A/JJ 2007-06-15
S3AB-S3MB
www.taitroncomponents.com
Page 2 of 5
Fig.1- Forward Current Derating Curve
Lead Temperature (° C)
Electrical Characteristics (T
Ambient=25ºC unless noted)
Typical Characteristics Curves
Symbol
Description
S3AB
S3BB
S3DB
S3GB
S3JB
S3KB
S3MB
Unit
Conditions
VF
Maximum
Instantaneous
Forward Voltage
1.15
V
IF at 2.5 A
Trr
Typical Reverse
Recovery Time
2.5
µS
IF = 0.5A, IR= 1.0A, Irr
=0.25A
CJ
Typical Junction
Capacitance
60
pf
Measured at 1.0 MHZ and
Applied
Vr = 4.0 volts.
Rθ-JA
47
Rθ-JL
Maximum Thermal
Resistance
13
° C/W
Mounted on 0.3" x 0.3"
(8mmx8mm)
copper pad
area
Fig.2-Max. Non-Repetitive Forward Surge Current
Number of Cycles at 60Hz
