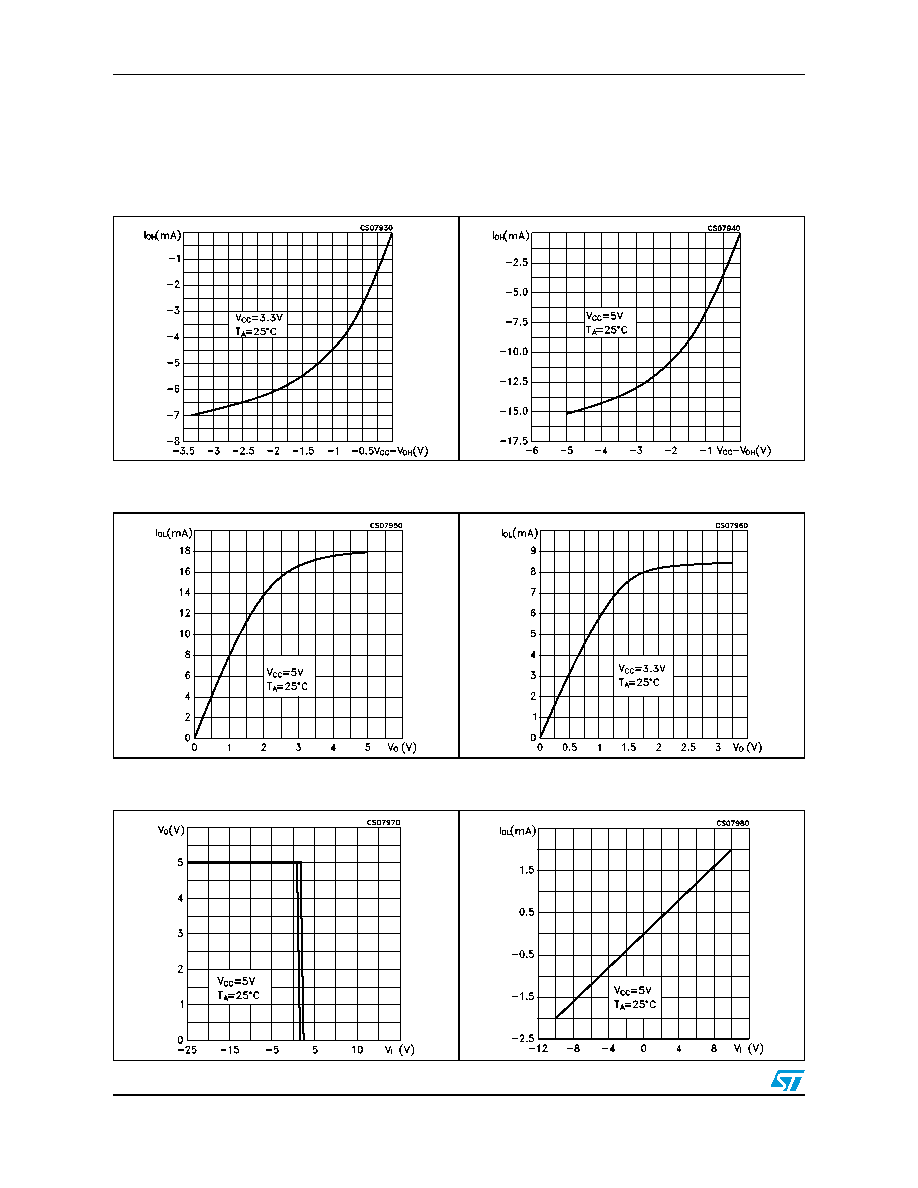

Typical performance characteristics
ST3222E
8/15
5
Typical performance characteristics
(unless otherwise specified TJ = 25 °C)
Figure 3.
Output current vs output high
voltage
Figure 4.
Output current vs output high
voltage
Figure 5.
Output current vs output low
voltage
Figure 6.
Output current vs output low
voltage
Figure 7.
Voltage transfer characteristics for
transmitter inputs
Figure 8.
Receiver input resistance
