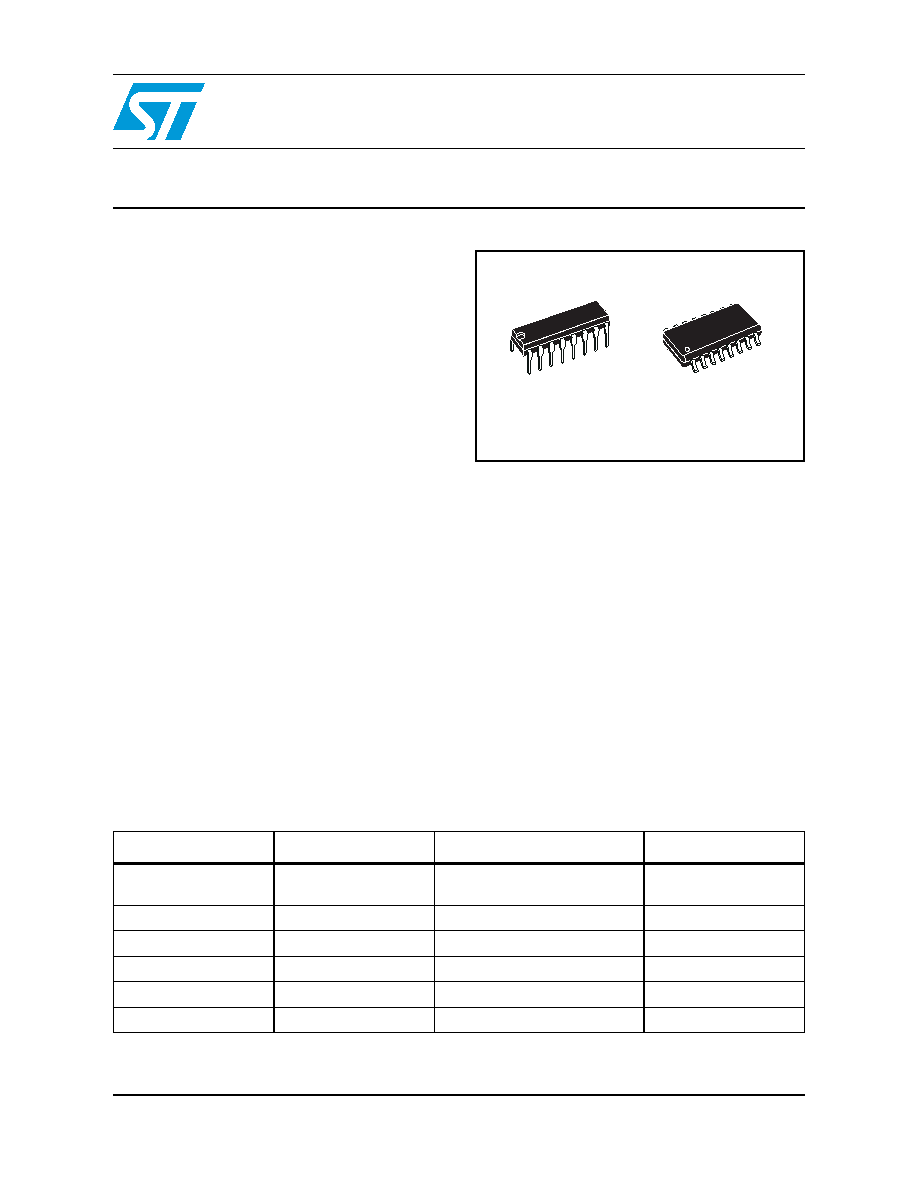

1 / 14 page  August 2008 Rev 5 1/14 14 ULQ2001 ULQ2003 - ULQ2004 Seven Darlington array Features ■ Seven Darlington per package ■ Extended temperature range: -40 to 105 °C ■ Output current 500 mA per driver (600 mA peak) ■ Output voltage 50 V ■ Automotive Grade product in SO16 package ■ Integrated suppression diodes for inductive loads ■ Outputs can be paralleled for higher current ■ TTL/CMOS/PMOS/DTL compatible inputs ■ Inputs pinned opposite outputs to simplify layout Description The ULQ2001, ULQ2003 and ULQ2004 are high voltage, high current Darlington arrays each containing seven open collector Darlington pairs with common emitters. Each channel rated at 500 mA and can withstand peak currents of 600 mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout. The versions interface to all common logic families. These versatile devices are useful for driving a wide range of loads including solenoids, relays DC motors, LED displays filament lamps, thermal print-heads and high power buffers. The ULQ2001A/2003A and 2004A are supplied in 16 pin plastic DIP packages with a copper lead- frame to reduce thermal resistance. They are available also in small outline package (SO16) as ULQ2003D1/2004D1. The ULQ2003 is available as Automotive Grade in SO16 package. The commercial part numbers is shown in the Table 1 (order codes). This device is qualified according to the specification AEC-Q100 of the Automotive market, in the temperature range -40 °C to 125 °C, and the statistical tests PAT, SYL, SBL are performed. DIP-16 SO16 (Narrow) Table 1. Device summary Part numbers Order codes Description Packages ULQ2001 ULQ2001A General purpose, DTL, TTL, PMOS, CMOS DIP-16 ULQ2003 ULQ2003A 5 V TTL, CMOS DIP-16 ULQ2004 ULQ2004A 6–15 V CMOS, PMOS DIP-16 ULQ2003 ULQ2003D1013TR SO16 in tape and reel ULQ2003 ULQ2003D1013TRY (1) SO16 in tape and reel ULQ2004 ULQ2004D1013TR SO16 in tape and reel 1. Automotive Grade products. www.st.com |
