STLC5046 데이터시트(PDF) 21 Page - STMicroelectronics

부품명 STLC5046
상세설명  PROGRAMMABLE FOUR CHANNEL CODEC AND FILTER
PDF  27 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  STMICROELECTRONICS [STMicroelectronics]
홈페이지  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

STLC5046 데이터시트(HTML) 21 Page - STMicroelectronics

Back Button STLC5046 Datasheet HTML 17Page - STMicroelectronics STLC5046 Datasheet HTML 18Page - STMicroelectronics STLC5046 Datasheet HTML 19Page - STMicroelectronics STLC5046 Datasheet HTML 20Page - STMicroelectronics STLC5046 Datasheet HTML 21Page - STMicroelectronics STLC5046 Datasheet HTML 22Page - STMicroelectronics STLC5046 Datasheet HTML 23Page - STMicroelectronics STLC5046 Datasheet HTML 24Page - STMicroelectronics STLC5046 Datasheet HTML 25Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 21 / 27 page
background image
1234567
16
17
tHMF
MCLK
tRM
tFM
tWMH
tWML
tSFM
tWFH
123456
7
16
tDMD
tXDP
FS
TSX
DX
tDMZ
tDZC
123456
7
16
tSDM
tHMD
DR
D98TL386C

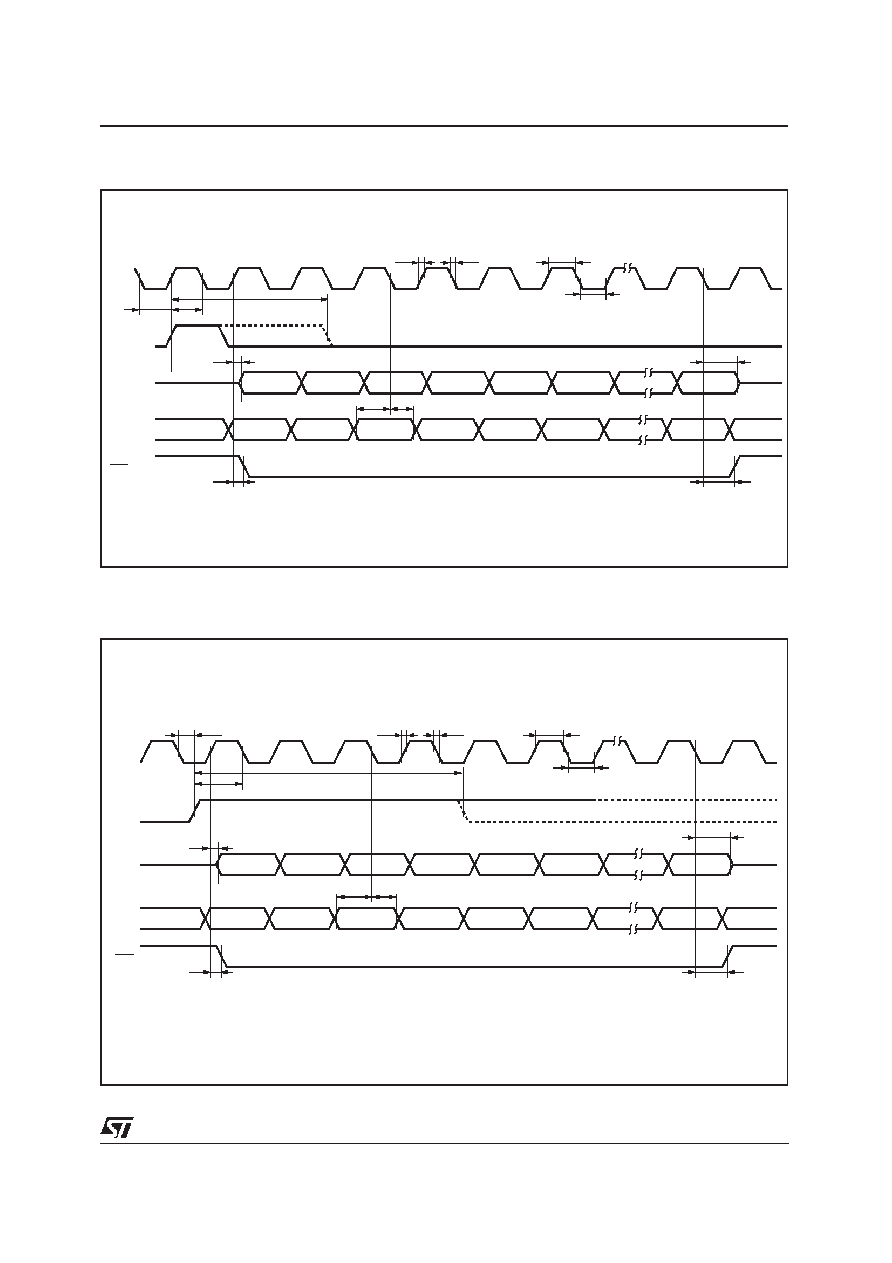

Figure 6a. Pin-strap mode Short Frame Sync. Timing.
12345
67
16
17
tHMF
MCLK
tRM
tFM
tWMH
tWML
tSFM
tWFH
12345
6
7
16
tDMD
FS
DX
tDMZ
12345
6
7
16
tSDM
tHMD
DR
D98TL387C
tXDP
TSX
tDZC
Figure 6b. Pin Strap mode Long Frame Sync. Timing.
Note: TWFH has to be shorter than or equal to 3 MCLK period to select Short Frame.
Note: TWFH has to be longer than 3 MCLK period to select Long Frame.
STLC5046
21/27
