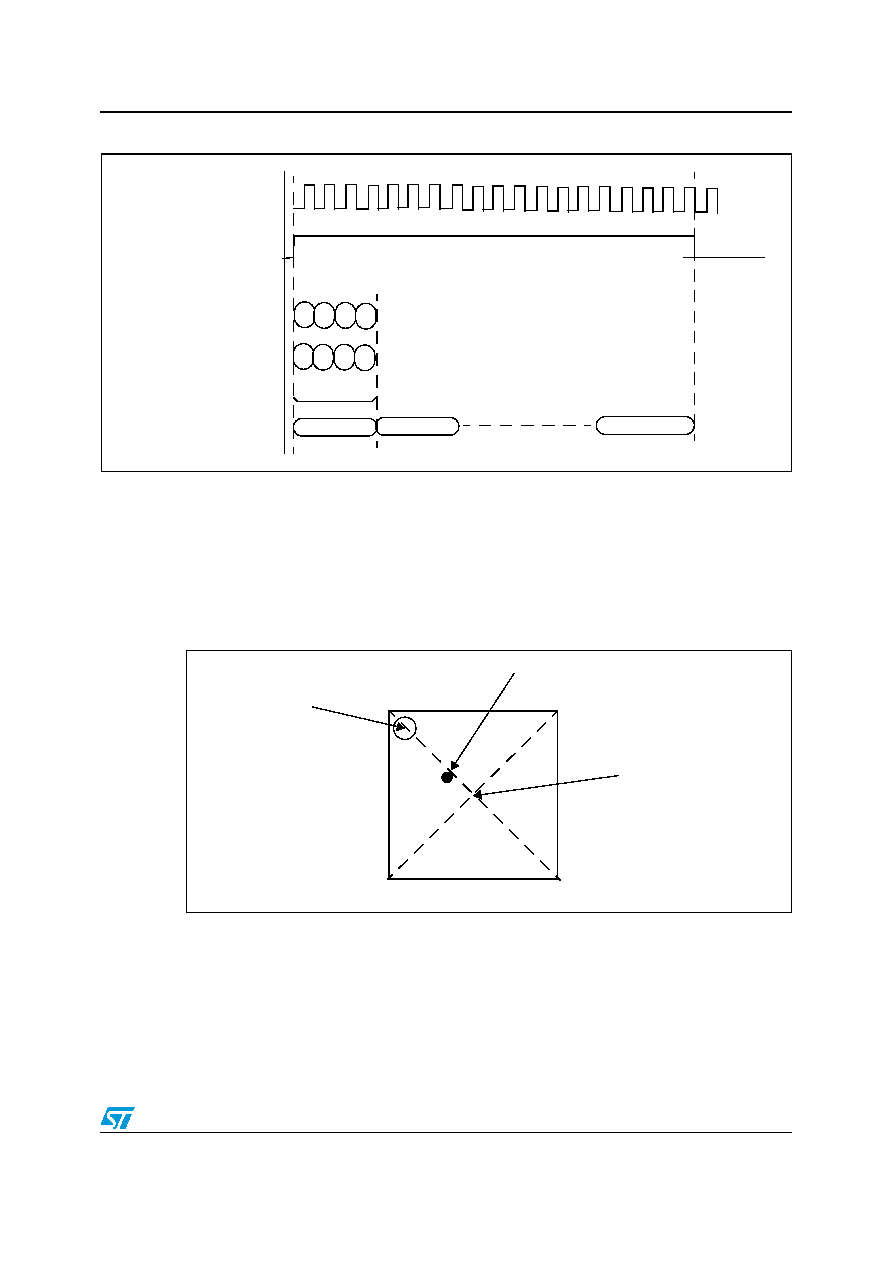

Figure 11.

Image streaming timing diagram

7.6

Optical centre

The optical centre of the VT5376 is NOT in the centre of the package. It is offset by

-0.232 mm in the X axis and +0.217 mm in the Y axis with respect to the centre of the

package as shown in Figure 12. The PCB designer must take this into account when laying

out the PCB.

Figure 12.

VT5376 optical centre

Laser_NEN (FST)

VGate_On (NIB_EVEN)

Reset_Out (NIB_ODD)

Motion (48MHz QCLK)

6

7

4

5

2

3

0

1

pixel_0[7:0]

reconstructed pixel data

pixel_1[7:0]

pixel_399[7:0]

Optical centre (-0.232mm, +0.217mm)

mechanical centre

of package (0,0)

Pin 1 marking

TOP VIEW OF VT5376
