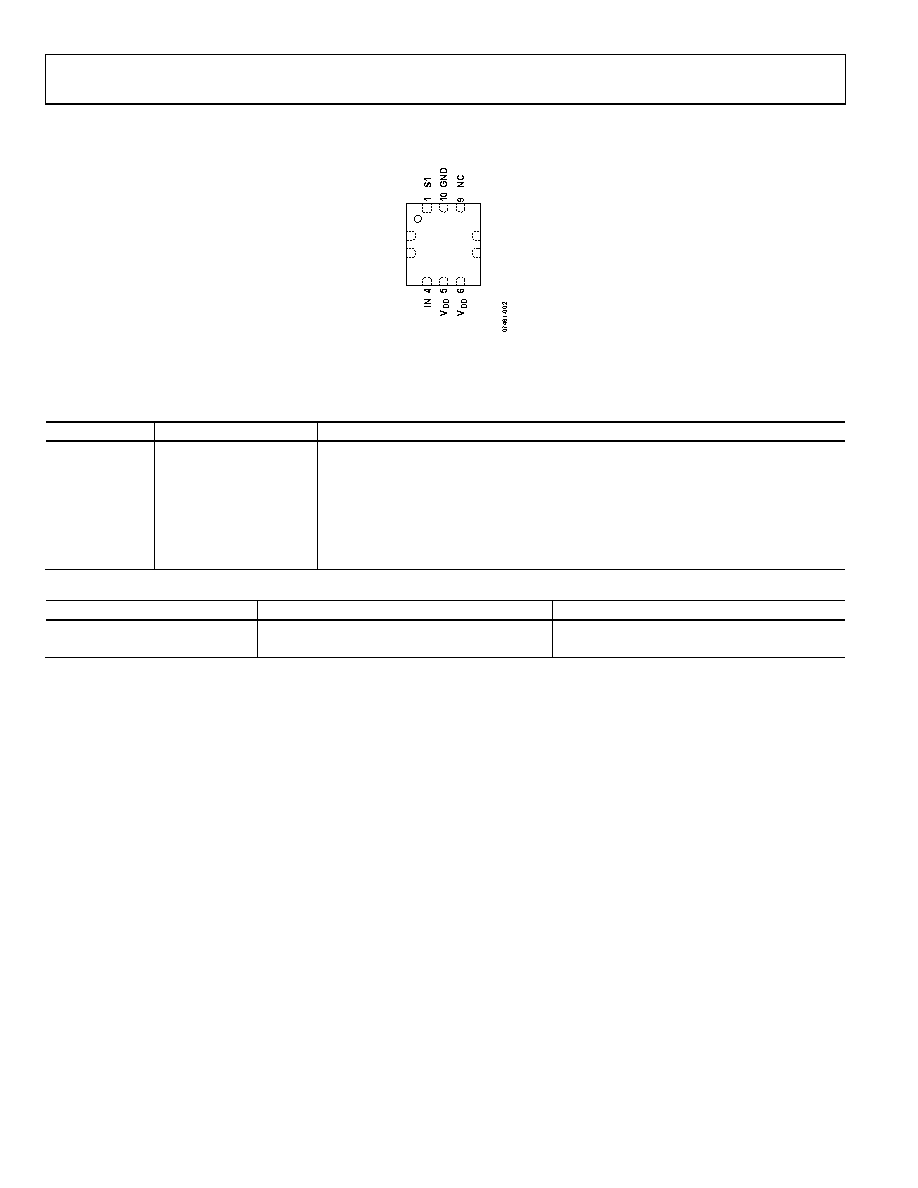

6 / 16 page ![]() ADG852 Rev. 0 | Page 6 of 16 PIN CONFIGURATION AND FUNCTION DESCRIPTION 7 8 3 2 S2 D NC NC = NO CONNECT NC TOP VIEW (Not to scale) ADG852 Figure 2. Pin Configurations Table 4. Pin Function Descriptions Pin No. Mnemonic Description 1 S1 Source Terminal. Can be an input or output. 2 D Drain Terminal. Can be an input or output. 3 S2 Source Terminal. Can be an input or output. 4 IN Logic Control Input. 5, 6 VDD Most Positive Power Supply Potential. 7, 8, 9 N/C No Connect. 10 GND Ground (0 V) Reference. Table 5. ADG852 Truth Table Logic Switch 1 Switch 2 0 Off On 1 On Off |
|
|
