Architectural features and block diagram

STLS2E02

2/5

1

Architectural features and block diagram

●

CPU

–

Out-of-order superscalar 64bit architecture

–

MIPS based

–

9 stage pipeline organized in fetch, pre-decode, decode, reg-map, dispatch, issue,

reg-read,execution and commit

–

Up to 64 instructions executed out-of-order with four issue mechanism

–

64bit register file (32 fix+32 float)

–

Register renaming unit composed by 64-entry physical register files

–

Branch prediction unit

–

Six functional units: two integer, two float, one SIMD unit, one load/store unit

●

Memory Hierarchy

–

64KB + 64KB four-ways set-associative first level instruction and data cache

–

512KB four-ways set associative unified second level cache

–

Up to 24 non-blocking accesses with on-the-fly Memory Disambiguation

–

Load speculation through value return from previous pending stores

–

Miss word first access for cache miss access

–

Instruction 16-entry TLB (Table Lookside Buffer) and unified 64-entry TLB with

page size from 4KB to 4MB

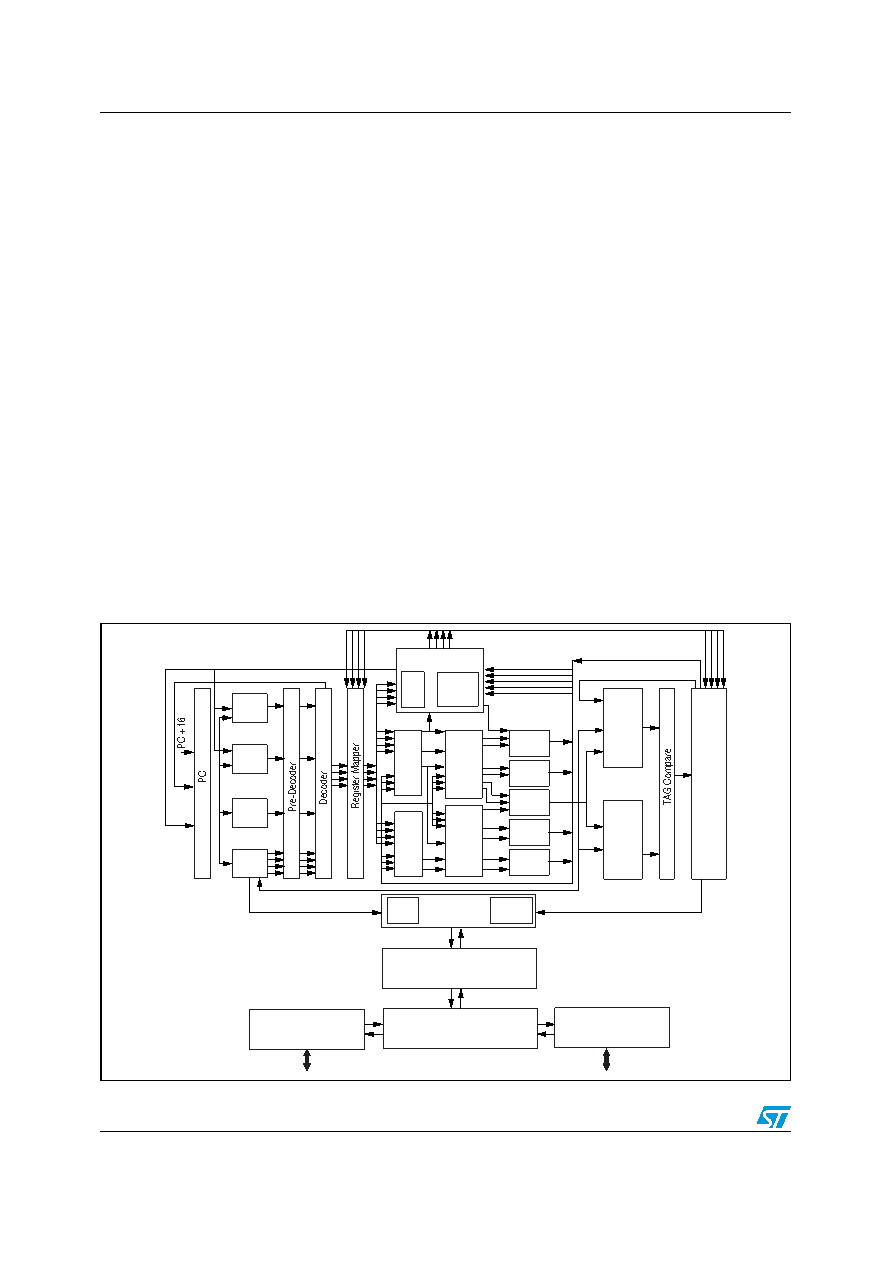

Figure 1.
