STPC INDUSTRIAL

PC Compatible Embedded Microprocessor

1/55

5/11/99

Issue 1.1

ISA

I/F

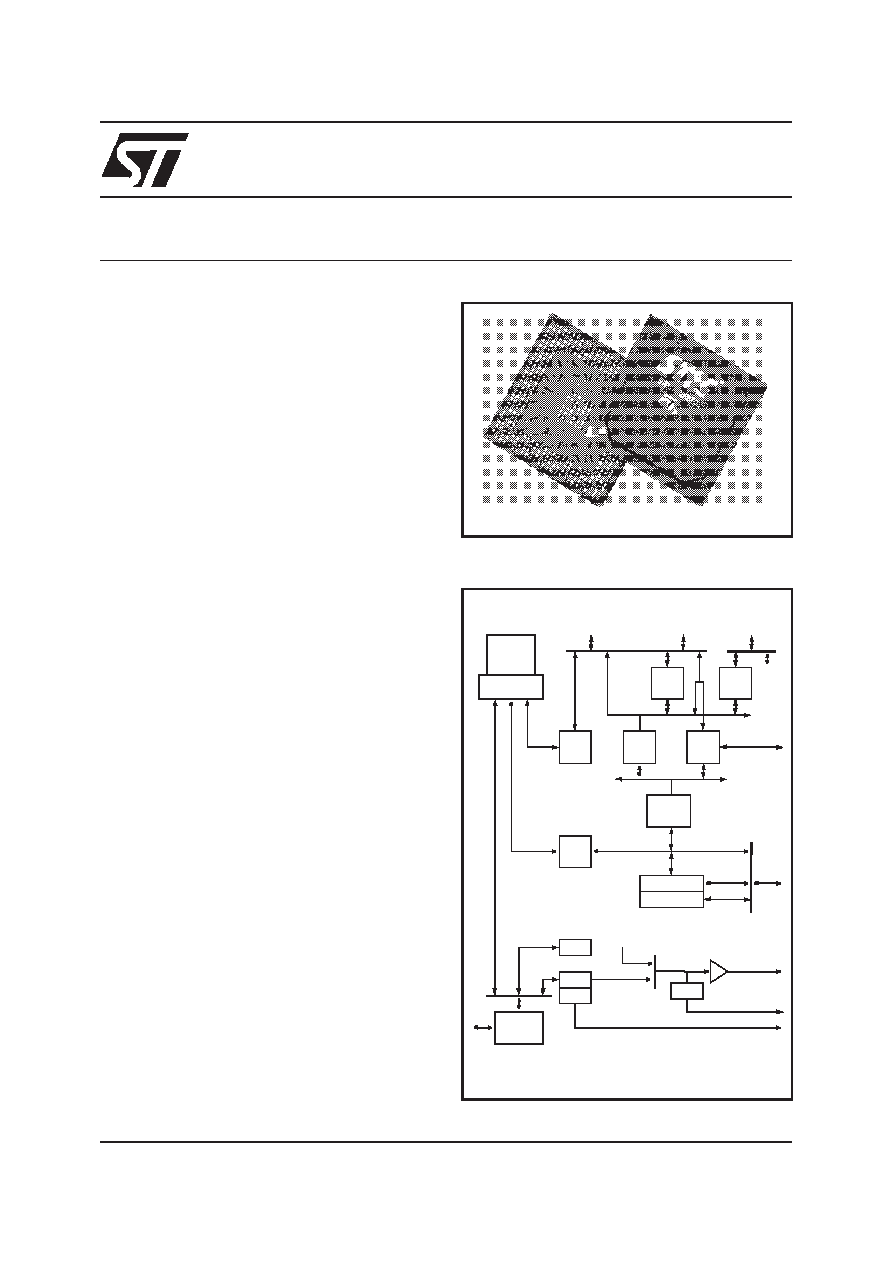

Figure 1. Logic Diagram

s

POWERFUL X86 PROCESSOR

s

64-BIT BUS ARCHITECTURE

s

64-BIT 66MHz DRAM CONTROLLER

s

SVGA GRAPHICS CONTROLLER

s

135MHz RAMDAC

s

UMA ARCHITECTURE

s

TFT DISPLAY CONTROLLER

s

PCI MASTER / SLAVE / ARBITER

s

LOCAL BUS INTERFACE

s

ISA (MASTER/SLAVE) INTERFACE

-INCLUDING THE IPC

s

PC-CARD INTERFACE

- PCMCIA

- CARDBUS

s

I/O FEATURES

- PC/AT+ KEYBOARD CONTROLLER

- PS/2 MOUSE CONTROLLER

- 2 SERIAL PORTS

- 1 PARALLEL PORT

s

IPC

- DMA CONTROLLER

- INTERRUPT CONTROLLER

- TIMER / COUNTERS

s

POWER MANAGEMENT

STPC INDUSTRIAL OVERVIEW

The STPC Industrial integrates a fully static x86

processor, fully compatible with standard fifth gen-

eration x86 processors, and combines it with pow-

erful chipset, graphics, TFT, PC-Card, Local Bus,

keyboard, mouse, serials and parallel interfaces to

provide a single Industrial oriented PC compatible

subsystem on a single device. The performance of

the device is comparable with the performance of

a typical P5 generation system.

The device is packaged in a 388 Plastic Ball Grid

Array (PBGA).

TFT

ext

x86

Core

Host I/F

Serial2

// Port

Serial1

Kbd

Mouse

DRAM

I/F

VGA

GE

PCI

m/s

Local

Bus I/F

PCMCIA

CARDBUS

PCI BUS

IPC

82C206

PCI

CONTROLLE R

ISA BUS

CRTC

HW Cursor

Monitor

TFT Output

SYNC Output

TFT I/F

PBGA388
